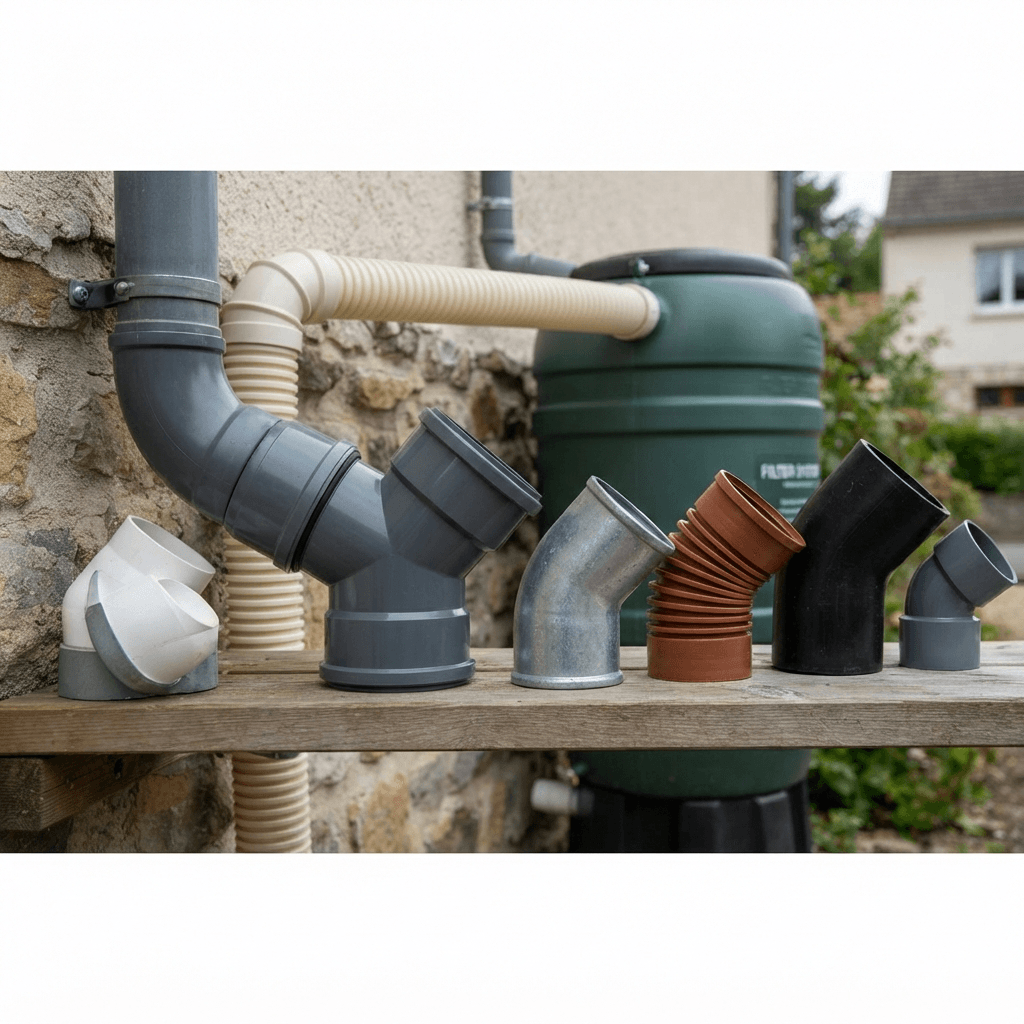

Advanced 45 Degree Elbow for High-Flow Rainwater Recovery Networks
Our industrial-grade 45 degree elbow is designed as a core component for configuring flexible layouts and obstacle-avoidance offsets in premium European and American rainwater collection infrastructures. Whether navigating complex architectural overhangs on residential villas or diverting high-volume stormwater runoffs into commercial filtration skids, this 45° fitting ensures a smooth hydraulic transition, significantly decreasing structural stress and backpressure inside the downspout system.
Uncompromised Reliability Across All Gutter Materials
- Universal Material Capability: Produced in exact tolerances for heavy-duty uPVC, architectural-grade aluminum, galvanized carbon steel, premium copper, and 304/316 stainless steel lines.
- Optimized Offset Dynamics: The 45-degree angled pathway drastically reduces internal fluid turbulence, ensuring leaves, silt, and organic waste slide directly into filtration screens rather than stagnating.
- Engineered for Climatic Extremes: Infused with heavy anti-aging agents and multi-layer corrosion-resistant coatings, making it fully immune to harsh freezing winters and intense UV exposure.
- Dual Residential & Commercial Specifications: Formulated with heavy wall-thickness tolerances to comfortably handle both light aesthetic installations and high-pressure commercial drainage configurations.
Technical Specifications & Flow Capacity Data
| Engineering Property | Residential Gutter Application | Commercial Stormwater Infrastructure |
|---|---|---|
| Standard Diameters | 2″ (50mm), 3″ (75mm), 4″ (110mm) | 4″ (110mm), 6″ (160mm), 8″ (200mm) / 10″+ |
| Material Selection Range | Eco-uPVC / Classic Copper / Seamless Aluminum | Sch 40 & 80 PVC / Galvanized Carbon Steel / SS316 |
| Flow Rate Enhancement | +35% vs. Standard 90° Elbows | +40% Pressure Velocity Retention Under Flood Load |
| Structural Wall Class | SDR 35 / Light Gauge Metal (1.5mm – 2.5mm) | Schedule 40 / Heavy Industrial Class (4.0mm – 8.0mm) |
| International Standards | ASTM D2665, BS EN 12200 | ASTM D1785, ISO 1401, AS/NZS 1260 |
| Sealing System | Solvent Cement / Push-Fit Click Lock | Integrated High-Density EPDM Gaskets / Welded Flange |
Dual-Scenarios Implementation: From Eco-Villas to Industrial Parks

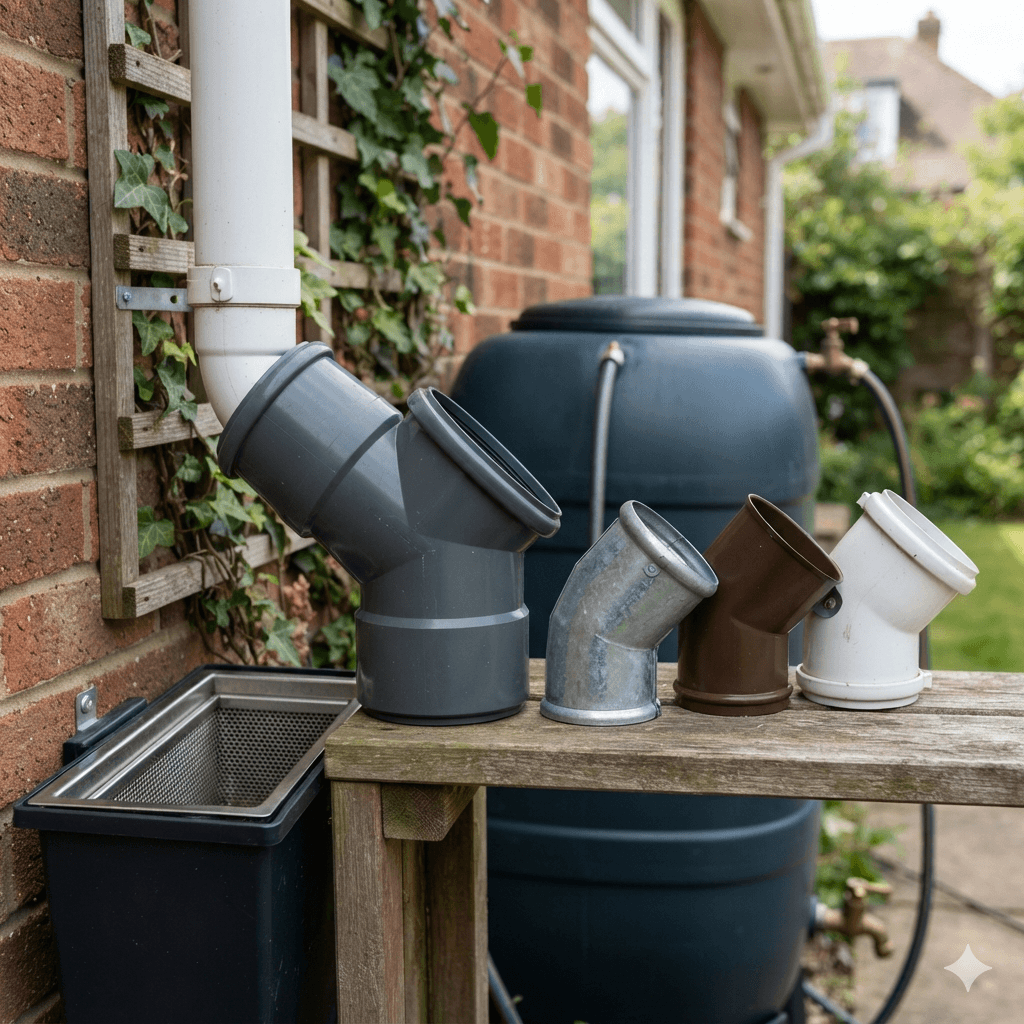

The versatility of our 45 degree offset elbow spans various building scales. In residential rainwater collection, two 45-degree elbows are paired together to form a smooth “S-curve” offset, bringing downspouts flush against architectural walls into domestic leaf catchers cleanly and discreetly. In commercial stormwater management, these fittings serve as heavy-duty connectors for feeding high-velocity water columns into multi-stage vortex filters, centrifugal sand separators, and municipal graywater recycling arrays without reducing hydraulic head pressure.
Strict B2B Manufacturing Tolerances & Seaworthy Packing
Operating a global building materials supply chain requires absolute precision. Our production facility uses fully automated multi-cavity injection molds and precision CNC sheet bending machines to guarantee that every single 45° angle matches perfect geometric tolerances. Before dispatch, random stress-deformation tests and high-pressure air-leak tests are implemented. All products are layered in shock-absorbing protective wrap and secured onto standardized heavy export pallets for trouble-free custom clearance and ocean shipping.
Frequently Asked Questions (FAQ)
Get Custom 45 Degree Elbow Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
