Multi-Material Calmed Inlet for Rainwater Tank Systems (PE, HDPE, PP, Stainless Steel)
In high-performance rainwater harvesting networks across Europe and North America, water clarity depends entirely on minimizing inner-tank turbulence. Our comprehensive range of Calmed Inlet for Rainwater Tank provides engineering flexible options across multiple material disciplines. Whether your specification demands cost-effective injection-molded Polyethylene (PE / HDPE) and Polypropylene (PP) for lightweight residential tanks, or ultra-robust, heavy-duty welded Stainless Steel (SUS304 / SUS316) for commercial structures, these devices act as vital fluid-dynamic energy dissipators at the base of the vertical drop pipe. By redirecting downward kinetic energy into a controlled radial flow, they guarantee that natural fine sediment rests undisturbed.
Advanced Hydrodynamic Benefits of Multi-Material Inflow Engineering
- Elimination of Sediment Resuspension: Smoothly slows incoming water velocity to near zero, stopping mud, dust, and microscopic debris from swirling into the water column.
- Full Material Options: PE, HDPE, and PP provide absolute corrosion immunity from soil/water chemicals, while Stainless Steel offers superior structural defense against immense hydraulic impact.
- Optimized Tank Aeration: Directs fresh, oxygen-rich surface runoff from the roof underneath the existing stored water, creating regular oxygenation that thwarts anaerobic bacteria growth.
- Eco-Building Code Alignment: Seamlessly matches stringent UK SuDS guidelines and American DIN 1989 rainwater construction standards across all material models.
Targeted Placement in Advanced Rainwater Filtration Networks
Unlike traditional pipe systems that dump heavy downspout streams straight down and turn the bottom of a tank muddy, our B2B trade-grade calmed inlet units are essential for precision water distribution layouts. They serve as the final safeguarding element inside high-capacity tanks:

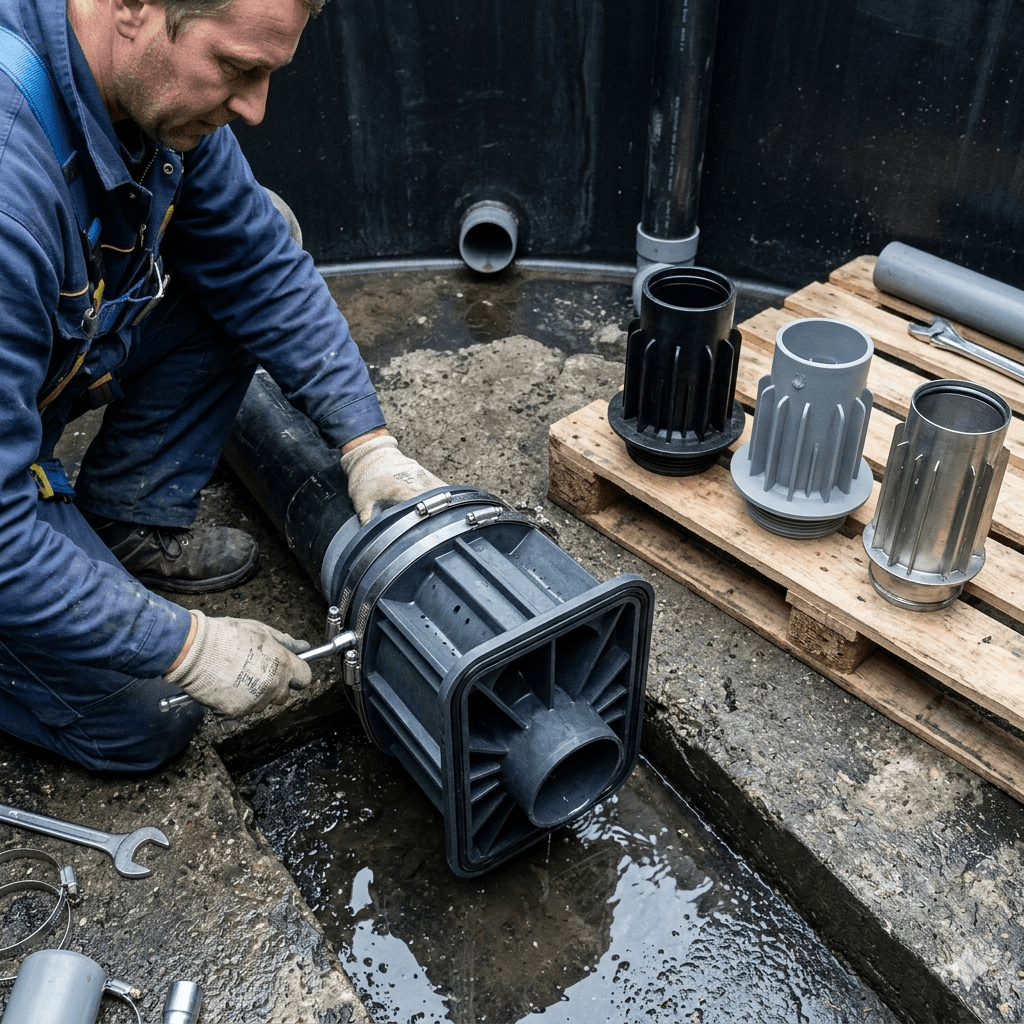

- Residential Rainwater Harvesting Pods (PE/HDPE Models): Easily attaches to standard vertical drop pipes inside underground or above-ground poly-tanks to improve water clarity for garden irrigation and toilet flushing.
- Integrated Modular Cisterns (PP Models): Perfectly integrated within poly-structural rainwater attenuation cells, offering lightweight modular handling during large-scale urban drainage installations.
- Commercial Retention Storm Vaults (Stainless Steel Models): Deployed in multi-ton concrete cisterns where high-volume roof runoff enters at fast rates, ensuring water remains clear for downstream sub-micron filtration filters.
Technical Specifications & Material Attributes
| Material Type | Standard Connection (DN) | Core Advantages & Best Application |
|---|---|---|
| Polyethylene (PE / HDPE) | DN 50, DN 90, DN 100, DN 110 | High impact flexibility, completely rust-proof, cost-effective wholesale choice for residential above-ground poly tanks. |
| Polypropylene (PP) | DN 100, DN 110, DN 150 | High thermal resistance, structural rigidity, ideal for underground attenuation modular eco-drainage networks. |
| Stainless Steel (SUS304 / SUS316) | DN 100, DN 110, DN 150 up to DN 300 | Ultra-high tensile strength, zero wear over decades, customized sizes for heavy municipal or commercial underground concrete vaults. |
| Flow Velocity Reduction Rate | Reduces incoming velocity by up to 85% | Maintains equalized distribution across all polymer and metal housing layouts. |
| Base Attachment Style | Flat Self-Standing Pod Base | Supports slide-on friction coupling, clamp bands, or welded anchor points. |
Global OEM Supply Chain & Logistics Advantage
Operating as an export-oriented manufacturer, we align our production lines with the logistical requirements of major European and American B2B procurement operations. We ensure that our calmed inlet shipments arrive on time and in perfect structural condition:
- Space-Optimized Shipping Configurations: Injection-molded polymer units (PE/HDPE/PP) feature highly nestable geometries that significantly cut ocean freight volume costs, while metal variants are securely single-boxed to avoid scratching.
- Verified Material Quality: We provide full material data verification sheets for every batch, proving that our plastics are UV-stabilized and non-toxic, and our stainless steel matches authentic non-recycled metallurgical grades.
- Flexible Freight Management: Comprehensive shipping support for Full Container Loads (FCL) or Less-than-Container Loads (LCL) directly to major European, North American, and Australian logistics terminals.
Frequently Asked Questions (FAQ)
A1: For standard residential above-ground poly tanks, PE/HDPE or PP units are ideal due to their excellent cost-efficiency and absolute immunity to corrosion. If your project involves a deep underground concrete cistern with high-pressure drop lines or fast heavy-storm surges, we strongly recommend our heavy-duty Stainless Steel variant to withstand long-term physical water stress.
A2: Absolutely. All of our Polyethylene and Polypropylene materials are made from 100% pure, virgin food-grade and eco-compliant resins. They do not leach heavy metals, BPA, or microplastics into the storage reservoir, ensuring full compliance with European and American environmental health building codes.
A3: No. Whether molded in polymer or welded in stainless steel, our units are engineered with a wide fluid-flow profile that matches or exceeds the cross-sectional area of your drop pipe. This ensures that while the water velocity drops significantly due to the geometric design, the total volume capacity stays unhindered, preventing pipe backpressure.
A4: Yes, we provide extensive OEM and ODM manufacturing services. We can customize the connection neck of our plastic molds or weld custom mounting steel flanges to fit standard metric or imperial pipe sizes based strictly on your specific engineering requirements.
Get Custom Calmed Inlet for Rainwater Tank Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
