Industrial-Grade First Flush Diverter for Pre-Tank Filtration Units
In large-scale commercial and municipal rainwater harvesting systems, the initial runoff carries the highest concentration of pollutants, including atmospheric dust, bird droppings, heavy metals, and fine sediments. Our engineered First Flush Diverter act as the ultimate critical control point. Positioned right before storage tanks and downstream of primary Pre-Tank Filtration Units, they guarantee that only clean, high-quality water enters your reservoir, preventing sludge accumulation and bio-fouling.
Why Engineers Specify Our First Flush Diverter Systems
● Ultimate Protection for Storage Tanks: By mechanically diverting the “first flush” volume (typically the first 1-2mm of rain), it completely eliminates the risk of fine silt settling at the bottom of the holding tank.
● Smart Smart-Drain Technology: Equipped with a precision calibrated, slow-release drainage valve. The system automatically resets itself post-rainfall, draining the contaminated water slowly to prepare for the next storm event without manual intervention.
● Modular & Scalable Infrastructure: Available in multi-chamber configurations. Whether you are managing a 2,000 sqm logistics warehouse roof or a sprawling industrial park, our diversion volumes can be customized via extension pipe manifolds.
● Corrosion-Proof Heavy Construction: Manufactured from UV-stabilized high-density polymers and structural steel fittings to withstand harsh outdoor environments and heavy industrial stormwater flows.
Technical Specifications & Model Matrix
| Model Code | Inlet/Outlet Connection | Base Divert Cap. (L) | Max Catchment Area | Housing Material | Internal Filter Screen |
|---|---|---|---|---|---|
| FFD-100-COM | DN100 (4″ Imperial) | 20L – 50L (Scalable) | Up to 350 m² | UV-Stabilized PVC | 1.0mm SUS304 Mesh |
| FFD-150-IND | DN150 (6″ Imperial) | 100L – 200L | Up to 800 m² | Reinforced HDPE | 1.2mm SUS304 Mesh |
| FFD-200-HD | DN200 (8″ Imperial) | 250L – 500L | Up to 1800 m² | HDPE / SUS304 Optional | 1.5mm SUS316 Mesh |
Global B2B Supply Chain & Logistics Reliability
As a seasoned exporter of municipal water treatment components, we prioritize low total cost of ownership and seamless logistics for our international EPC contractors and wholesalers. Our First Flush Diverters are packaged in a highly efficient knock-down modular format, drastically minimizing ocean freight volumes. We guarantee guaranteed crack-proof wooden crate packaging for heavy industrial components and provide comprehensive CAD/BIM technical submittals for smooth local regulatory approvals.
Frequently Asked Questions (FAQ)
A1: Pre-Tank Filtration Units are designed to remove large coarse debris like leaves and twigs from the continuous water flow. However, they cannot stop dissolved chemicals, fine soot, and bacterial roof load. The First Flush Diverter works as the secondary, final safety gate. It captures the very first volume of water containing these fine suspended particles and locks it away. Once full, the diversion chamber closes, allowing pure water filtered by the pre-tank unit to pass safely into the primary holding reservoir.
A2: The standard engineering rule of thumb is to divert between 0.5 to 1.5 liters of water per square meter of roof catchment area, depending on local air pollution levels. For instance, an industrial facility with a 1,000 sqm roof in a high-dust zone would require approximately 1,000L to 1,500L of first-flush containment. Our FFD-200 series features expandable manifold pipes that let you increase the containment chamber volume infinitely to meet precise local rainfall regulations.

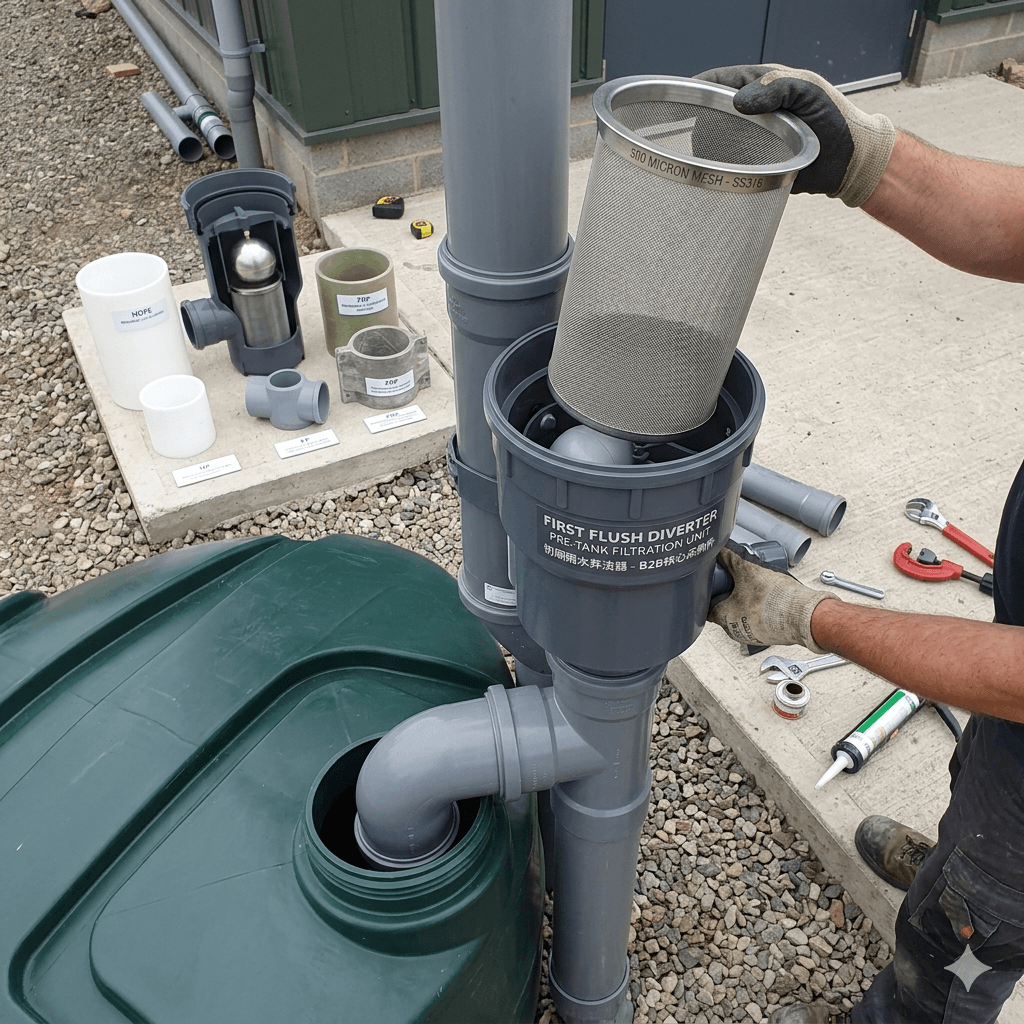

A3: Maintenance is designed to be highly minimal. The integrated smart drainage valve features a self-cleaning mechanism that slowly bleeds out the dirty water. We recommend an inspection every 3 to 6 months to clean out the internal stainless steel sediment screen and ensure the internal ball-float valve seals smoothly against the seat. All components can be accessed via top-entry quick-release maintenance caps without dismantling the main pipe headers.
A4: Yes, absolutely. We partner extensively with global commercial drainage distributors. We offer full OEM engineering services including custom connection flanges (ANSI, DIN, or JIS standards), color-matched co-polymer extrusions, integrated smart digital monitoring sensors, and private laser-marking logos for large contract container orders.
Get Custom First Flush Diverter Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
