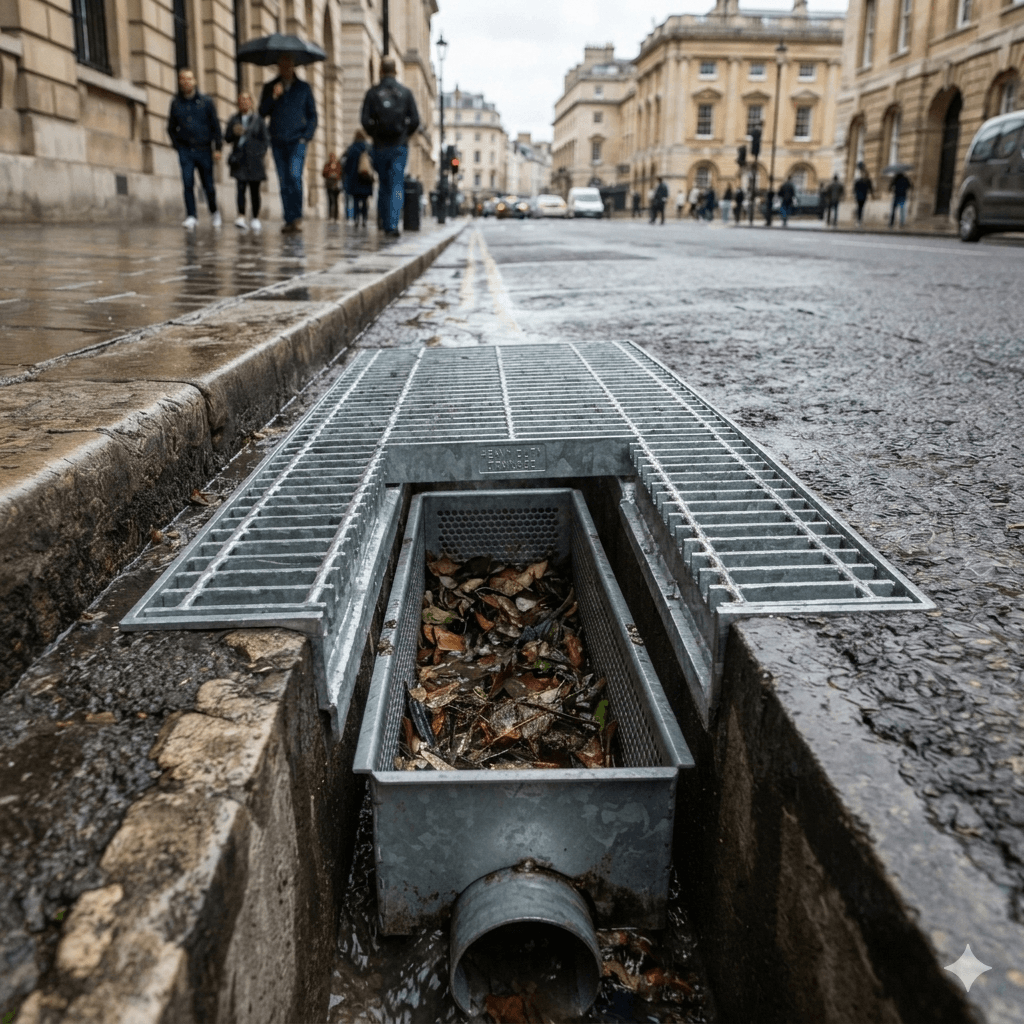

Heavy-Duty Road Steel Gratings: Premium Industrial Drainage Infrastructure
In modern civil engineering and industrial infrastructure projects, managing surface water runoff while ensuring safe, high-capacity vehicle transit is critical. Our Heavy-Duty Road Steel Gratings are specifically engineered to bridge this gap. Designed to endure intense dynamic impacts and static loads from logistics fleet trucks, municipal vehicles, and heavy terminal machinery, these steel gratings serve as the benchmark for premium trench covers, driveway catchment pits, and stormwater drainage systems.
Why Choose Our Heavy-Duty Road Steel Gratings ?
- High Load-to-Weight Ratio: Manufactured from premium high-tensile structural steel plates, providing massive load capabilities without unnecessary structural weight.
- Optimized Hydraulic Drainage: Over 80% open area ensures fast clearing of torrential rainwater, preventing road hydroplaning and localized flooding.
- Robust Pressure Welded Joints: Advanced automated forge-welding fuses bearing bars and cross bars under high heat and pressure for a monolithic, twist-resistant grid.
- Certified International Standards: Fully compliant with global standards including YB/T4001.1 (China), ASTM A123 / ANSI/NAAMM MBG531 (USA), and BS4592 (UK).
Key Features & Structural Design
The core structural integrity of our industrial steel bar grating stems from the sizing of its bearing bars. Unlike standard pedestrian gratings, our heavy-duty road steel gratings utilize thickened flat bars ranging from 5mm up to 12mm, with depths reaching up to 150mm. This dimensional depth provides the necessary section modulus to counteract severe bending moments caused by heavy wheel loads.
Furthermore, buyers can choose between three distinct bearing bar configurations depending on environmental hazards. The Plain surface is ideal for standard highway applications, while the Serrated surface provides supreme anti-slip traction in oily, icy, or wet environments like industrial wash bays and loading docks. For projects prioritizing optimized stress distribution, I-shape bar configurations provide high efficiency by cutting down overall material weight while retaining peak structural load-bearing parameters.
Technical Specifications Table
| Technical Parameter | Standard Specifications & Range | Customization Availability |
|---|---|---|
| Bearing Bar Size (Depth x Thickness) | 50x5mm, 65x6mm, 75x6mm, 100x8mm, up to 150x12mm | Fully Customizable |
| Bearing Bar Pitch (Center to Center) | 30mm, 32.5mm, 40mm, 60mm | Fully Customizable |
| Cross Bar Pitch (Center to Center) | 50mm, 100mm (Utilizing 6mm, 8mm, or 10mm twisted bars) | Fully Customizable |
| Steel Raw Material Grading | ASTM A36, Chinese Q235B / Q355B, EN10025 S235JR | Available upon request |
| Galvanization Coating Standard | ASTM A123, ISO 1461, BS EN ISO 1461 (Avg. 610 g/m²) | Thicker zinc coat option Available |
| Load Capacity Categories | Class D (400kN), Class E (600kN), Class F (900kN) – H20/HS20 Highway | Engineered calculation provided |
Heavy-Duty Logistics, Bundling & Fast Delivery
Shipping massive metric-ton orders of heavy highway gratings overseas requires meticulous attention to packaging and maritime logistics. As an experienced B2B exporter, we guarantee that all steel road gratings are tightly bundled using high-tensile structural steel strapping bands accompanied by robust corner protectors to prevent edge friction during rough sea transits.
Each grating bundle is seated on thick square timber runners or heavy-duty custom steel pallets, allowing secure forklift entry and effortless crane offloading at your port or project layout site. We coordinate directly with major global shipping lines to offer containerized layout optimization, ensuring maximum volume utilization while strictly adhering to destination port total weight limitations.
Frequently Asked Questions (FAQ)
Q1: How do I choose the correct bearing bar size for an HS20 truck load application?
A1: Selecting the right size depends directly on the clear span of your drainage trench. For example, a 400mm clear span trench subjected to typical highway wheel loads generally requires a minimum bearing bar dimension of 65x6mm spaced at 30mm centers. Our technical engineering team will run comprehensive finite element stress models based on your exact layout dimensions to recommend the safest, most cost-effective bar sizing.
Q2: Why is hot-dip galvanizing mandatory for heavy-duty road gratings?
A2: Road trench gratings are constantly exposed to moisture, road salt, automotive fluids, and oxidation. Hot-dip galvanizing according to ASTM A123 creates a metallurgically bonded zinc layer over the carbon steel. This serves as a sacrificial anode, blocking rust even if scratched by tires, and extending structural lifespan past 30 years without sagging or structural failure.
Q3: Can these gratings be manufactured with custom locking devices or hinges?
A3: Yes, completely. To prevent infrastructure theft and reduce traffic vibrations, we can weld custom security heavy hinges, bolting tabs, or integrated locking bars to the outer framing corners. This keeps the gratings permanently secure within their trench frame while allowing maintenance crews easy access for cleanouts.
Q4: What is your minimum order quantity (MOQ) and production turnaround for municipal projects?
A4: Our flexible industrial manufacturing plant handles both boutique custom replacement orders and extensive municipal framework projects. Our baseline production MOQ is typically 5 to 10 tons. Standard sizing production turnarounds run within 15-20 days, whereas deeply customized architectural framework fabrication takes roughly 25 days from final certified blueprint sign-off.
Request a Heavy-Duty Steel Grating Engineering Calculation & Quote
Looking for an authorized OEM/ODM manufacturing factory to supply certified road gratings for your national highway or logistics facility project? Send us your technical drawings, expected vehicle load limits, and clear span layouts. Our engineering division will supply an optimized layout proposal within 24 business hours.
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
