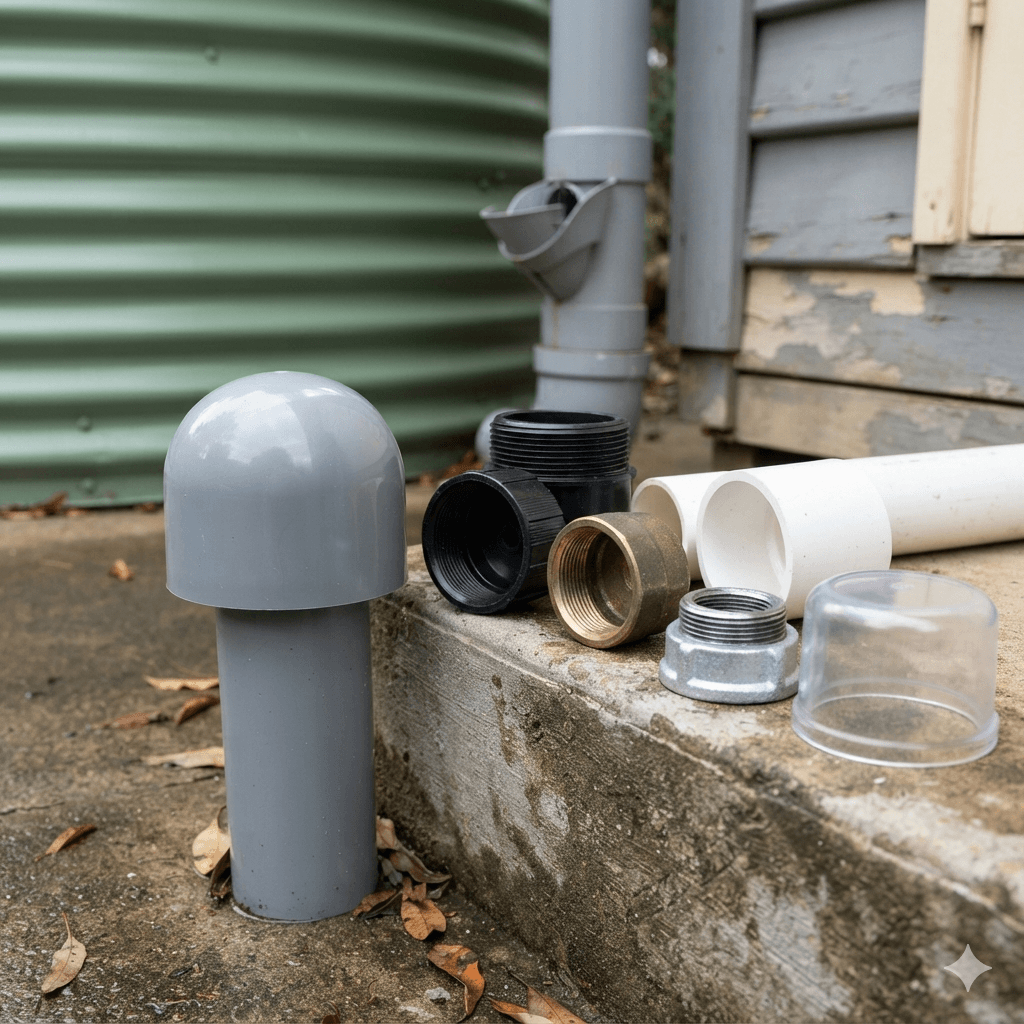

Industrial Female Pipe Caps for Secure Stormwater Network & Tank Termination
In municipal stormwater engineering, proper isolation of pipeline dead-ends and temporary extension branches is critical to system integrity. Our Pipe Cap for Rainwater Harvesting provides a secure mechanical seal over bare male pipe ends. Often integrated at the terminal point of first-flush sediment traps, future expansion manifolds, or maintenance access junctions on large attenuation tanks, these pipe caps prevent external soil contaminants and root systems from penetrating the clean-water storage framework while ensuring zero system leakage under gravity or pressurized pump flows.
Why Our End-Sealing Pipe Caps are Preferred by Western Contractors
- True Female Fitment Profile: Slips perfectly over the outside perimeter of the pipe run, providing extra boundary coverage to reinforce the joint against bending stress or ground movement.
- All-Material Comprehensive Range: Fabricated in Marine-Grade Stainless Steel (304/316) for industrial high-pressure treatment zones, or UV-stabilized heavy plastics (PVC-U/HDPE) for cost-effective downspouts.
- Precision Thread & Socket Standards: Machined to strict North American NPT (ANSI B1.20.1) and European Metric/BSP standards, preventing cross-threading or weeping leaks during extreme rainfall loads.
- Engineered Clean-Out Compatibility: Threaded variations serve as excellent removable caps for seasonal flushing lines, allowing contractors to wash away trapped leaf debris and roof silt easily.
Technical Specifications & Structural Dimensions
| Specification Parameter | Stainless Steel Pipe Cap (Forged / Cast) | Plastic Pipe Cap (Molded PVC / HDPE) |
|---|---|---|
| Size Accommodation | 1/2″ to 12″ (DN15 – DN300) | 1/2″ to 8″ (DN15 – DN200) |
| Connection Types | Female NPT/BSP Threaded, Socket Weld, Butt-Weld | Female Threaded, Solvent Cement Socket |
| Dimensional Standards | ASME B16.11 (Forged), ASME B16.9 (Butt-weld) | ASTM D2665, ASTM D2467, EN 12200, ISO 4427 |
| Wall Thickness Rating | 3000lbs, Sch 10S, Sch 40S Heavy Duty | Schedule 40, Schedule 80, SDR 11 |
| Geometric Profile | Flat-top Hex Cap or Domed Elliptical Cap | Deep Socket Round Cap with gripping ribs |
| Environmental Tolerance | Acid rain proof, anti-pitting, saline soil safe | High outdoor UV resistance, zero microbial rot |
B2B Mass-Production Packaging & Global Delivery Assurance
Operating as a premium manufacturing supplier for international construction tenders, we optimize our finishing lines for effortless component cross-compatibility. Every batch of pipe caps undergoes digital laser gauging for internal diameter compliance and thread accuracy tests before final crating. To preserve the polished sealing surfaces of our stainless steel and plastic caps, components are layered with protective separation padding within heavy-duty corrugated export boxes. Secured on heat-treated ISPM-15 wooden pallets, we orchestrate efficient maritime and multi-modal logistics (offering FOB, CIF, and DDP terms) to keep your project deployment fluid and worry-free.
Frequently Asked Questions (FAQ)
Q1: What is the mechanical difference between a Pipe Cap and a Pipe Plug in a stormwater network?
A1: The difference lies entirely in the structural gender and mounting method. A Pipe Cap is a female fitting (“女扣”) that fits **over the outside** of a bare pipe or a male-threaded end. A Pipe Plug is a male fitting (“男扣”) that screws or inserts **inside** the female opening of another fitting (like a tee or coupling). Caps are preferred for terminating a pipeline extension because enclosing the pipe exterior offers superior resistance against structural bending or shear forces caused by shifting soil.
Q2: Why are domed or elliptical pipe caps recommended for high-volume urban rainwater harvesting cistern lines?
A2: When storm gates snap shut or pump stations cycle on, sudden fluid velocity drops create dramatic pressure spikes known as water hammer. Flat-bottom caps concentrate this stress directly on the corner welds or plastic seams. Our premium domed and elliptical structural profiles distribute hydraulic shock waves outward across the curved radius, increasing the surge-pressure threshold by up to 40% over flat variants.
Q3: Can your female-threaded PVC caps be used on above-ground downspouts for winterization or seasonal flushing?
A3: Yes, they are highly popular for seasonal maintenance. In cold North American and European climates, contractors install our female-threaded caps at the lowest point of first-flush diverters or rain collector lines. Before winter freezing sets in, or during heavy spring silt clean-outs, the caps can be simply unscrewed to fully purge mud, leaves, and stagnant water, preventing ice-expansion cracks.
Q4: Do you offer material tracking validation like EN 10204 3.1 certification for municipal eco-construction bids?
A4: Yes, absolutely. We support all commercial B2B procurement processes with transparent compliance paperwork. For municipal, government-funded green infrastructure projects, we furnish certified Mill Test Reports (MTR) according to EN 10204 3.1 for stainless steel components, alongside pressure test declarations and raw polymer compliance sheets for PVC and HDPE components.
Get Custom Pipe Cap for Rainwater Harvesting Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
