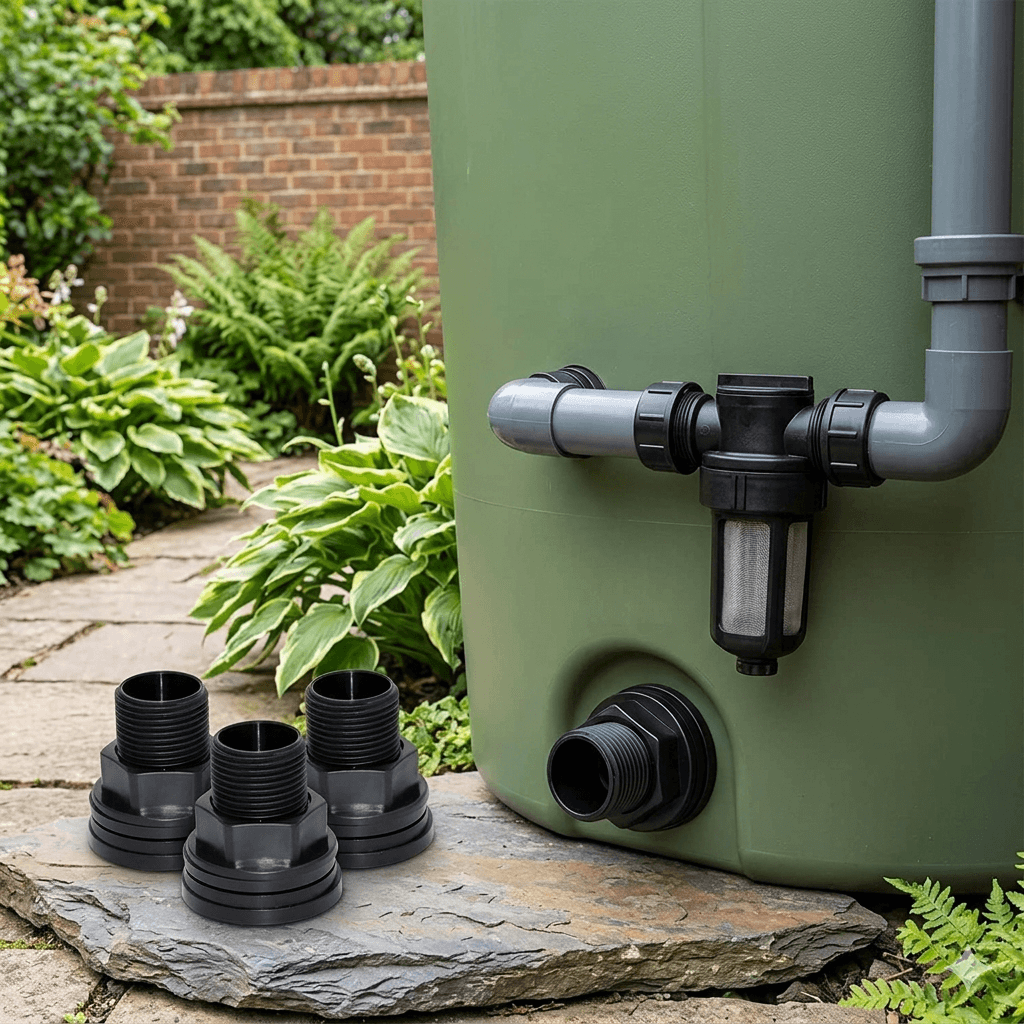

Heavy-Duty Plastic Tank Connector & Leak-Proof Bulkhead Fittings for Poly Water Tanks
In residential and commercial storm asset management across Europe and North America, expanding storage infrastructure safely requires flawless seal design. Our structural-grade plastic tank connector lineup provides the definitive technical solution for retrofitting raw plastic drums, recycled barrels, and heavy-duty polyethylene (PE) cisterns. Designed to eliminate the leaks that constantly occur when metal fittings interface with expanding polymer walls, these engineering plastic bulkhead couplers deliver an impenetrable, corrosion-proof connection point for all downhill distribution plumbing.
Engineering Masterpieces of Our Polymer Bulkhead Fittings:
- Elastic Stress Absorption Washers: Outfitted with an extra-thick, high-density EPDM rubber gasket that compresses evenly onto curved drum profiles, neutralizing barrel wall warping and flexing under full water weight.
- Advanced Polymer Toughness: Molded from premium virgin PP, PVC, or ABS with built-in UV stabilizers to completely eliminate seasonal cracking, winter frost brittleness, and outdoor chemical fading.
- Anti-Slip Reverse Thread Tech: Features precision-machined heavy locking nuts with broad seating shoulders, preventing thread stripping or backward loosening during high-torque valve installations.
- Zero Galvanic Corrosion: 100% metal-free formulation ensures complete resistance to acidic roof runoff, stagnant biological elements, and concentrated plant-feeding fertilizers.
Technical Specifications & Polymer Material Engineering
To guarantee complete compatibility with local plumbing lines in overseas distribution sectors, our factories cut threads under strict international tolerances. Below are our high-volume B2B manufacturing parameters.
| Component Configuration | Standard US Imperial Standards | Standard EU Metric Standards |
|---|---|---|
| Thread Size Selections | 1/2″, 3/4″, 1″, 1-1/2″, 2″ NPT Threads | 20mm, 25mm, 32mm, 40mm, 50mm BSP |
| Material Formulations | Heavy PVC / Impact-Resistant ABS | Glass-Reinforced Polypropylene (PP) |
| Gasket Sealing Geometry | 0.15″ (4mm) Thick EPDM Soft Washer | Heavy-Duty Dual Silicone Flat Rings |
| Adaptive Wall Grip Range | Up to 0.78 inches Thick Tank Shells | 1 mm to 20 mm Structural Tanks |
| Safe Static Head Pressure | Up to 120 PSI Hydrostatic Base Limit | Up to 0.8 MPa (Atmospheric Tank Base) |
| Outdoor Thermal Adapting | -4°F to 158°F (Anti-Weathering Blend) | -20°C to 70°C Grade 5 UV Stabilization |
Applications in Plastic Rain Barrels & Polyethylene Cistern Configurations
Our heavy-duty plastic tank connectors are specialized, high-utility anchoring solutions specifically tailored for low-pressure domestic water storage setups. In standard residential backyards across the UK, Europe, and North America, thin-walled 55-gallon polymer drums and massive blow-molded polyethylene (PE) cisterns collect downspout runoff. Installing a heavy brass bulkhead fitting in these lightweight polymer structures introduces structural weight discrepancies; the rigid metal can cut or tear the softer plastic tank shell when the wall expands and flexes under summer heat loads or extreme fluid capacities. Our engineered PP/PVC tank connectors solve this issue perfectly by sharing identical thermal expansion coefficients with the tanks themselves. Placed at the lowest barrel points for main drainage valves, or positioned near the rim as multi-barrel overflow link connections, they form a flexible, durable seal that stays 100% drip-free over decades of continuous seasonal exposure.
B2B Global Building Material Supply Chain & Retail Bundle Customizations
As an elite B2B manufacturing provider of environmental rainwater components and industrial plumbing hardwares, our production facilities are optimized for high-volume, cost-contained private labeling runs. Polymer plumbing accessories hold an exceptional logistics advantage: being exceptionally lightweight and impact-proof, they permit high-density packing nested stacking arrangements without risking transoceanic friction cracking. We offer individual retail-ready skin blister cards, eco-conscious kraft retail cartons, and high-margin turn-key DIY installation bundles—incorporating our premium plastic connector, dual extra-wide rubber washers, and a precisely matched carbon-steel hole saw blade. Located immediately adjacent to premier international deepwater ports, we execute rapid automated harbor container loading and streamlined export clearings, keeping your localized landing freight expenditures optimized.
Frequently Asked Questions (FAQ)
Q1: Why is a plastic tank connector preferred over a brass fitting for polymer rain barrels?
A1: Polyethylene (PE) and PVC tanks expand and contract considerably with temperature changes and water pressure variations. A heavy brass bulkhead fitting does not flex, creating localized structural stress that often splits thin plastic barrel walls. Our plastic connectors match the tank wall properties, flexing safely alongside the polymer matrix while staying completely rust-free.
Q2: What specific rubber chemistry is utilized in your heavy-duty washers?
A2: We use an outdoor-grade EPDM (Ethylene Propylene Diene Monomer) rubber formula, or high-purity food-grade silicone shims. This formulation ensures excellent elasticity under compression, completely resists high solar UV degradation, and stays free of ozone cracking, maintaining an absolute seal over long outdoor lifespans.
Q3: Can your factory provide custom threads to match specific regional gate valves or spigots?
A3: Yes, absolutely. We operate independent molding and CNC threading setups for different global regional standards. For the North American market, we supply accurate ANSI NPT tapered internal threads, while for European, British, and Australian distribution grids, we produce parallel ISO 228 BSP threads, ensuring a perfect leak-proof match with local plumbing fixtures.
Q4: What is the wholesale MOQ required for custom injection molding colors?
A4: Our catalog standard colors (such as deep charcoal gray and matte black) have a flexible wholesale MOQ starting at 1,000 units. For specialized architectural color matchings (such as forest green to blend with residential water butts or pure gloss white), our custom compounding extrusion line requires a minimum threshold of 3,000 units per run.
Get Custom Rainwater Plastic Tank Connector Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
