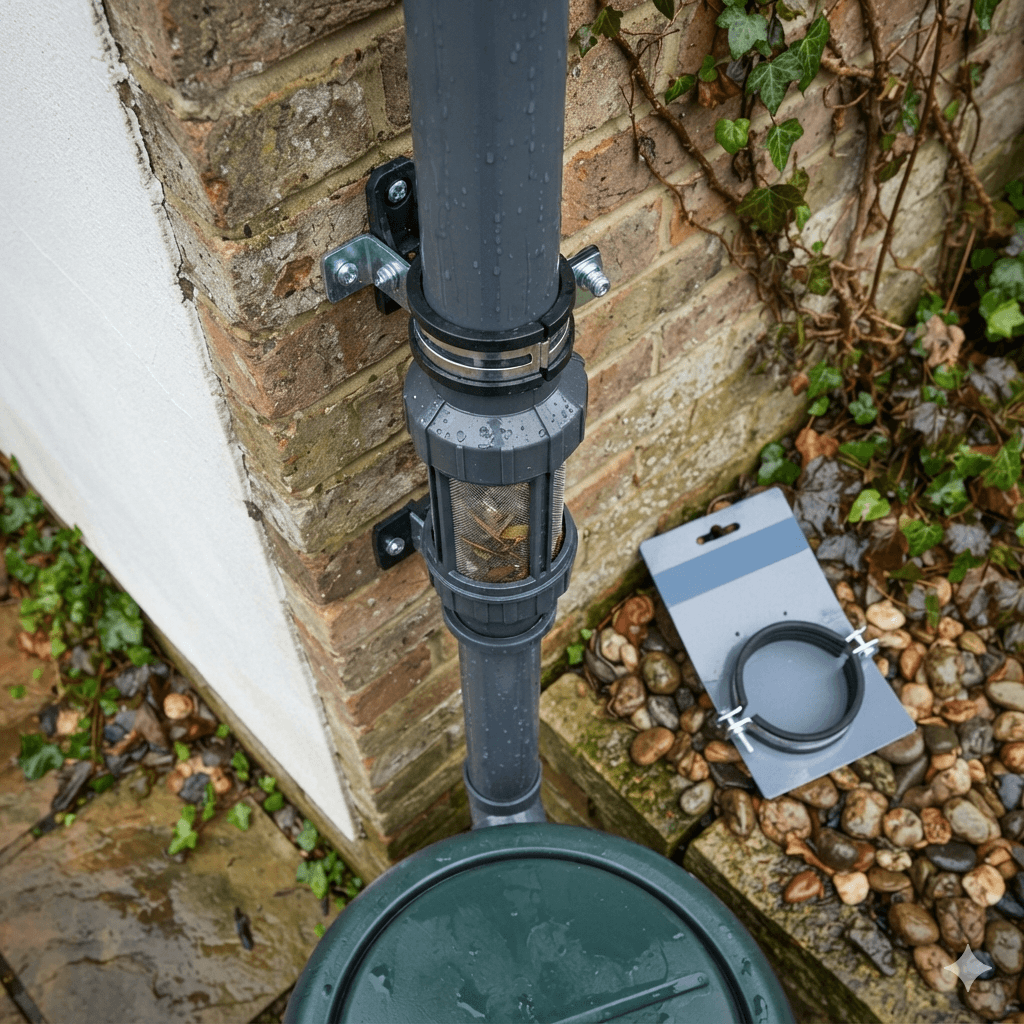

Industrial-Grade Rainwater Pipe Clamp & Downspout Structural Wall Brackets
In high-performance structural architecture, securing vertical drainage infrastructure is critical. Our masterfully crafted rainwater pipe clamp series serves as the definitive structural support anchoring heavy downspouts directly to masonry, concrete, or timber external walls. Tailored to withstand shifting seasonal loads across North America and Europe, these industrial-strength pipe clips prevent downpipe sag, joint separation, and structural alignment failures caused by torrential water volume weights during unexpected heavy rainstorms.
Engineering Strengths of Our Downpipe Clamping Systems:
- Unmatched Anti-Corrosion Longevity: Manufactured via hot-dip galvanization or high-grade stainless steel to completely repel rust, industrial smog acids, and coastal marine air.
- Thermal-Expansion Acoustics: Available with integrated UV-stabilized EPDM rubber liners that allow seamless pipe expansion/contraction while suppressing liquid turbulence acoustics.
- Heavy-Duty Reinforced Gauge: Features a thickened metal bandwidth (up to 2.5mm) engineered to eliminate structural bending or cracking under heavy external ice or snow accumulation packs.
- Optimized Threaded Anchoring: Equipped with premium-welded M8/M10 dual-thread collar nuts or specialized drive pins for lightning-fast, ultra-secure structural stone embedding.
Technical Specifications & Metal Engineering Standards
To comply with international architectural safety standards, our manufacturing lines adhere to strict physical load profiling. Below are the verified technical parameters for our global B2B distribution orders.
| Specification Matrix | Standard US Measurements | Standard EU Measurements |
|---|---|---|
| Compatible Pipe Dimensions | 2″ / 3″ / 4″ / 6″ Round & Square | 50mm / 75mm / 90mm / 110mm / 160mm |
| Material Gauge Thickness | 0.06″ to 0.10″ (Industrial Thickened) | 1.5 mm / 2.0 mm / 2.5 mm |
| Surface Finish Coating | Zinc Plating / Outdoor Polyester Powder | Hot-Dip Galvanized (HDG) EN ISO 1461 |
| Max Structural Load Capacity | Up to 450 lbs Tension Force resistance | Up to 2.0 kN Safe Working Load Limit |
| Rubber Profile Insulation | Weatherproof EPDM (Acoustic Grade) | DIN 4109 Noise Prevention Grade Compliant |
| Fixing Component Integration | Hanger Bolt / Wood Screw Dowel Combo | M8/M10 Connection Nut + Masonry Plug |
Applications in Architectural Guttering & Heavy Rainfall Drainage Systems
Our heavy-duty downspout pipe clips are fully versatile engineering assets across multiple civil construction applications. In multi-family residential blocks, industrial warehouses, and large commercial shopping malls, massive downpipe arrays route hundreds of gallons of water per minute from high-altitude roof gutters. Without our high-tensile rainwater pipe clamps placed every 1.5 to 2 meters, water velocity surges create cyclical lateral swaying forces that rip loose plumbing brackets out of fragile brickwork facades. These brackets adapt effortlessly to both modern smooth metallic systems and standard exterior domestic PVC systems, offering permanent, sleek-profile structural stability.
Global Building Material B2B Supply Chain & Bulk Packaging Efficiencies
As an elite global provider of structural building hardwares, our production lines are optimized for high-volume, cost-contained manufacturing. Hardware components like heavy pipe clamps can suffer from excessive scratching or moisture condensation damage during ocean transit. To resolve this, our factory utilizes rust-inhibitor plastic bagging, robust internal cardboard dividers, and heavy-duty ISPM-15 certified heat-treated wooden pallets to guarantee pristine delivery states. We support major DIY building supermarkets and specialized hardware distributors with direct custom barcoding, custom structural stampings, and tiered bulk wholesale pricing. Positioned near primary international shipping hubs, we execute rapid harbor container loading and streamlined customs clearings to maximize your retail margin profiles.
Frequently Asked Questions (FAQ)
Q1: Can your rainwater pipe clamps withstand the high-salinity marine environments of coastal regions?
A1: Yes, absolutely. For coastal or highly corrosive industrial zones, we highly recommend our 304 or 316 marine-grade stainless steel pipe clamps, or our hot-dip galvanized steel clamps that undergo advanced salt spray lab chamber testings exceeding 480 hours with zero red rust indicators.
Q2: Do you support custom architectural color matching for downspout wall brackets?
A2: Yes. We offer premium exterior-grade polyester powder coating solutions. We can accurately match any standard European RAL color code or American Pantone standard (such as Anthracite Gray RAL 7016, Sepia Brown, or Gloss White) to blend seamlessly with the building facade.
Q3: What is the maximum wind load rating for these downpipe brackets?
A3: When anchored correctly using our M10 industrial masonry expansion anchors into structural concrete, our reinforced 2.5mm gauge steel pipe clamps are structurally engineered to resist high wind sheer loads up to Category 4 hurricane velocity vectors without tearing or loosening.
Q4: Can we order the metal brackets without the acoustic rubber liners to minimize cost?
A4: Yes, we provide flexible component assembly configurations. Commercial importers can purchase standard unlined metal pipe straps for budget-sensitive industrial warehousing projects, or fully lined acoustic EPDM clamps optimized for high-end residential luxury developments.
Get Custom Rainwater Pipe Clamp Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
