Heavy-Duty Cable Grab Trash Rake for Mega Stormwater & Pumping Facilities

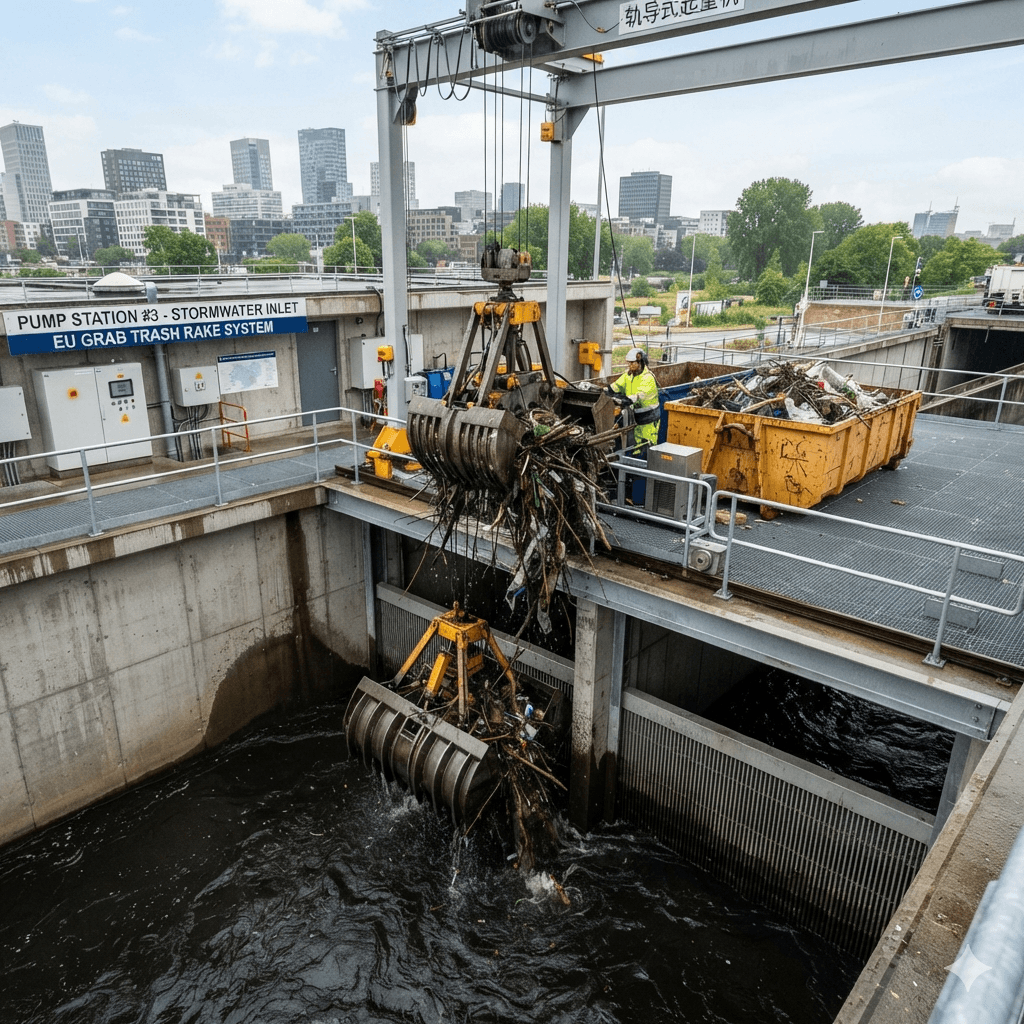

The premium engineering Mechanical Trash Rake represents the peak of bulk solid extraction from deep water intakes and storm-water collection sumps. Unlike regular chain-loop bar screens that can jam or slip when struck by heavy underwater logs, our heavy grab design drops vertically via high-tensile wire ropes. It locks cleanly into the static bar rack slots from the bottom up, scraping off massive obstacles safely and dumping them into waste containers with zero underwater bearing friction.
Engineering Strengths for High-Risk Municipal Infrastructure
During seasonal flash storms, municipal inlets see immense sudden surges of urban rubbish. The open hydraulic structure of this cable-guided grab rake minimizes water resistance, processing maximum volumetric flow rates while continuous lift cycles secure critical pump vaults from backing up.
All motors, wire rope drums, and electronic sensors are stationed completely above the high-water line. This specialized deep well design removes the risk of sand grit grinding down drive components, providing a highly reliable B2B asset that functions flawlessly under heavy silt conditions.
Equipped with advanced weight-load indicators and smart torque limiters. The system identifies when a grab basket encounters an immovable obstacle at the bottom, automatically stopping the winch and triggering alarms to prevent stress fractures in the structural steel framing.
Target Global Engineering Deployments
Our heavy-duty industrial trash rakes are meticulously optimized for demanding performance in a variety of sectors:
- Regional Stormwater Lift Stations: Primary defense for high-volume drainage pumps during metropolitan typhoon or hurricane emergencies.
- Deep Intake Sump Wells: Reliable vertical extraction for municipal water works and industrial cooling sumps down to 30 meters depth.
- Hydropower Plant Headworks: Safe extraction of drift material, logs, and riverine organic blockages from main intake channels.
- Industrial Sea Intake Buffers: Sturdy pre-screening protecting desalination units from bulk seaweed mass and sea detritus.
Technical Matrix & Heavy-Duty Sizing Guide
| Model Variant | Grab Width (mm) | Max Well Depth (m) | Lifting Tonnage (kg) | Hoist Motor (kW) | Bar Gap Range (mm) |
|---|---|---|---|---|---|
| GTR-1200H | 1200 | 10 | 500 – 800 | 4.0 | 20 – 60 |
| GTR-1800H | 1800 | 15 | 1000 – 1500 | 5.5 | 30 – 100 |
| GTR-2500H | 2500 | 25 | 1500 – 2000 | 7.5 | 40 – 120 |
| GTR-3500Mega | 3500 | 30 | 2500 – 3000+ | 11.0 / 15.0 | 50 – 150 |
Heavy Machinery Custom Packing & Overseas Field Support
As a leading heavy-scale mechanical plant vendor, we specialize in streamlined logistical transport setups for over-dimensional global engineering projects:
- Modular Breakdown Packaging: Large portal frames and grab assemblies are strategically sectioned to safely pack into standard 40ft High Cube or Flat Rack sea containers.
- Heavy Engineering Quality Certifications: Fully certified with premium welding inspect traces, ultra-sonic non-destructive testing (NDT) logs, and CE material heat codes.
- Turnkey Site Commissioning: Pre-wired electronic modules paired with comprehensive 3D installation videos and real-time remote engineering links ensure hassle-free assembly on site.
Frequently Asked Questions (FAQ)
A1: Our trash rakes feature a gravity-assisted claw engagement with hydraulic or mechanical closure. If it encounters heavily packed sludge, it will execute a continuous “peeling” stroke sequence. If it traps an oversized rock that exceeds maximum safe structural weight loads, our automated torque meters stop the hoist instantly to protect the cable framework from strain.
A2: Yes, we provide an advanced motorized cross-travel traverse carriage option. The entire hoist assembly can be mounted on automated overhead gantry rails, allowing one single trash rake module to move laterally across 3 to 6 parallel channels to clean multiple intakes sequentially.
A3: For standard projects, we implement ultra-thick heavy industrial hot-dip galvanization matching ISO 1461. For highly corrosive sea-water channels or heavy chemical storm runoffs, we fabricate the entire structural skeleton out of certified Duplex Stainless Steel or Marine Grade 316L.
A4: Virtually zero. The control panel uses an upgraded smart SCADA/PLC configuration. It runs on ultrasonic water-level differential logic or a programmable integrated storm-warning clock, autonomously lowering, grab-clamping, hoisting, and traversing into debris carts completely hands-free.
Get Custom Trash Rake Technical Layouts & Factory Estimates
Are you managing an upcoming regional flood discharge scheme, a municipal deep-well water plant, or bidding on a municipal Western storm asset upgrade? Reach out to our senior industrial design division with your channel widths, water depth metrics, and hoist safety requirements. We will engineer a custom mechanical layout draft and provide direct factory pricing within 24 hours.
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
