Architectural Tree Grates for Modern Public Streetscapes & Urban Greenways
As a highly distinguished B2B manufacturer specializing in high-capacity landscape castings and precision steel metalwork lines, we present our certified collection of Tree Grates. Modern public spaces, shopping centers, and commercial parks require seamless integration between living green infrastructure and pedestrian walking networks. Soil surrounding urban trees quickly compacts under continuous walking shoes, choking off oxygen and moisture to root systems. Our modular tree pit covers act as high-efficiency mechanical bridge decks, optimizing root respiration metrics while maximizing usable pedestrian floor index planes smoothly.
Why Buy Our Engineering Landscape Tree Surrounds?
● Strict ADA & Heel-Proof Slot Engineering: Public liability insurance demands absolute walking safety parameters. Our grates restrict the linear slot apertures to a maximum width under 8mm (approx. 5/16 inch), complying perfectly with global disability access acts. High-heeled shoes, crutches, and strollers pass over the surface without entrapment risks.
● Concentric Grow-Ring Knockout Architecture: Sourcing long-term infrastructure requires lifecycle planning. Our tree grate halves are cast with integrated concentric inner break-away rings. As the young sapling matures and its structural trunk expanding over the years, landscaping crews can easily snap out the inner steel rings without replacing the outer frame assembly.
● Matching Galvanized Steel Sub-Frame Arrays: Loose tree guards placed directly into soil will sag, tilt, or create fatal pedestrian trip ledges. We manufacture heavy-gauge structural angle-iron sub-frames that embed straight into the concrete pour. This secures the grate sections flat and flush with adjacent interlocking pavers permanently.
Technical Specifications & Material Matrix
| Specification Property | Standard Performance Matrix | B2B Customization Options |
|---|---|---|
| Material Composition | Ductile Iron GGG50 / Corten A & B Steel Plates / Heavy HDPE | Grade 304/316 Stainless Steel laser-cut covers |
| Safety Compliance Class | ADA Compliant, Heel-Proof Slits (Slots ≤ 8mm / 0.31 Inch) | Light vehicular load rating options for sweepers |
| External Geometric Profiles | Square Grid, Circular Disc, Hexagonal Interlock, Linear Run | Asymmetrical organic custom outlines to CAD drafts |
| Standard Dimensions (mm) | 1000×1000, 1200×1200, 1500×1500, 1800x1800mm Sizes | Imperial matching sizes (4x4ft, 5x5ft) cut for US buyers |
| Center Hole Diameters | 300mm / 400mm / 500mm with Expandable Breakout Rings | Eccentric center positioning tailored for close-wall paths |
| Surface Finish Finishes | Raw Weathered Rust / Black Bitumens / Electro-Powder Painting | Custom corporate RAL palette colors matching is supported |
Commercial Applications & Operational Performance

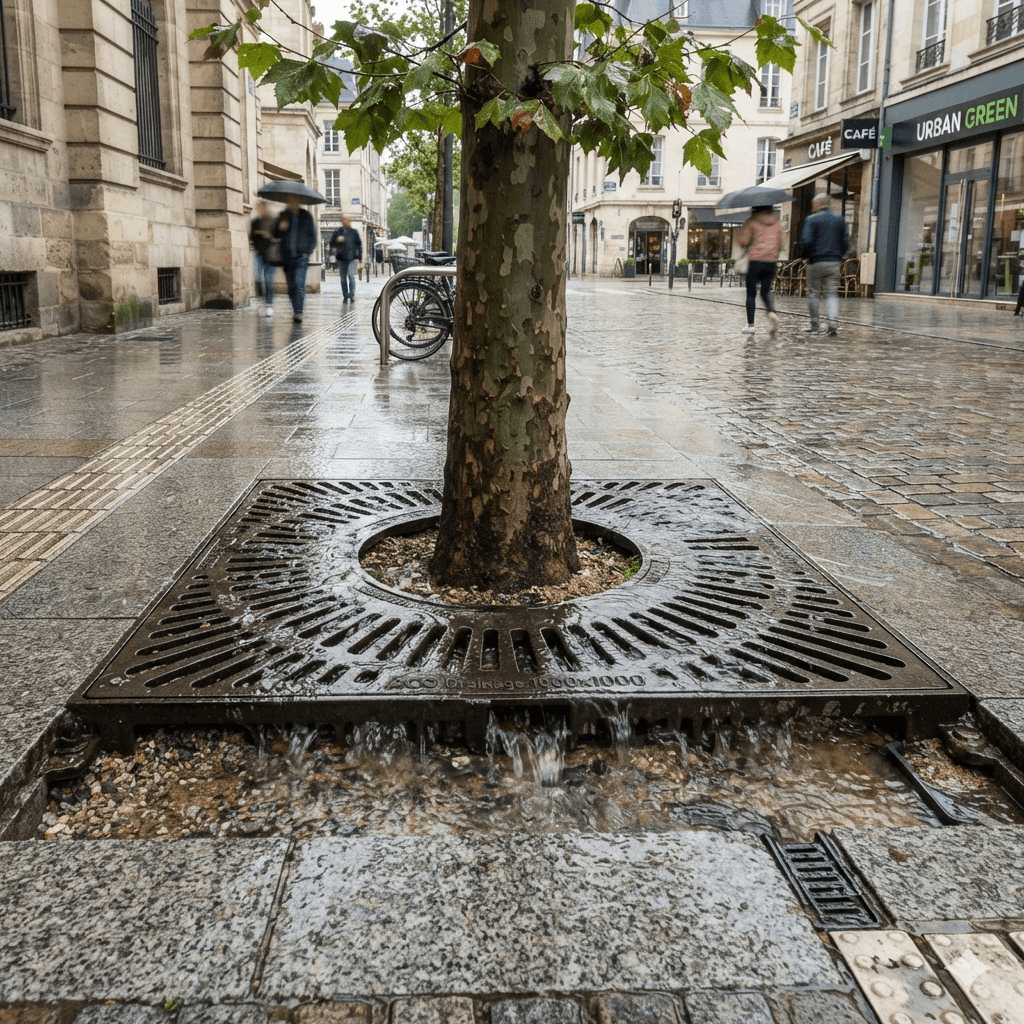

The strategic deployment of high-specification tree grates is highly vital for modern municipal greenways, university campuses, downtown retail sectors, and corporate office parks. In luxury retail strips or high-end residential plazas, architectural aesthetics must complement strict pedestrian safety rules. Traditional raw open dirt rings around tree bases quickly convert into muddy potholes during rain events or accumulate urban litter bags, creating localized eye-sores and trip injury hazards. Our advanced casting or laser-cut slots bridge these cavities completely. Rainwater and liquid fertilizers drain into the grid face smoothly, keeping public walking lines uniformly flat and clean.
Furthermore, landscape designers highly prize our rustic Corten steel alloy variations for contemporary urban centers. Corten steel develops its own protective, uniform iron oxide patina over a 6-month exposure loop. This rich orange-brown layer stops internal oxidation decay completely, making ongoing rust painting or chemical treatments entirely unnecessary. The open-grid geometry enables city maintenance teams to install integrated sub-grade root watering pipes and uplighting fixtures easily underneath the panels, creating striking night landscape lighting effects across premium developments worldwide.
Factory Wholesale Logistics & Packaging Advantages
Ensuring absolute finish preservation while maximizing container loading density metrics is a prominent cornerstone of our industrial export service line. Tree grate sections feature a highly advantageous flat geometric profile, enabling dense, zero-void vertical stacking arrangements inside transport boxes. To completely eliminate surface friction or enamel chipping during long intermodal maritime transits, our packaging division layers cushioning protective foam sheets between individual metal halves. The complete stack is centered onto heavy-capacity, fumigation-free ISPM-15 plywood pallets bound securely with high-tensile steel straps and full wrap-around stretch film shields. This precise layout maximizes cargo spatial stability and allows a standard 20ft container to safely load up to its absolute maximum weight capacity limits (CBM density optimization), granting wholesale B2B buyers premium freight savings per item.
Frequently Asked Questions (FAQ)
Q1: What are the main benefits of Corten Steel versus Ductile Iron for public plaza tree grates?
A1: Ductile Iron (GGG50) delivers massive compressive structural load ratings, making it ideal for urban sidewalks where street sweepers or delivery vans occasionally cross the curb. Corten Steel offers an architectural, ultra-modern slim aesthetic profile. Its chemical masterbatch forms a self-protecting rustic oxidation skin, providing incredible corrosion resistance without requiring future painting maintenance cycles.
Q2: How do your landscape tree pit grates fulfill strict global ADA compliance guidelines?
A2: Global disability acts dictate that open surface slots across accessible walking pathways must restrict gaps to a width under 8mm to 12mm to protect wheelchair users and walking canes. Our specialized heel-proof patterns utilize strict slot width tolerances below 8mm, completely neutralizing trip liability exposures for public municipal bids.
Q3: Can your factory engrave customized landscape patterns or custom municipal city text logos?
A3: Yes, we specialize in high-capacity B2B global customization. Backed by heavy fiber-laser cutting stations and advanced CNC casting pattern manufacturing, we can trace custom geometric scroll designs, embed specific municipal city seals, or silk-screen commercial developer text logos straight into the metal plates seamlessly.
Q4: What are your factory’s production lead times and MOQ scales for large public tenders?
A4: Our baseline wholesale manufacturing batch MOQ is 80 sets of frames and grates. Supported by fully automated molding lines and heavy laser fabrication lines running 24/7, we can manufacture, test, and crate a full container load order (approx. 20-22 tons of finished landscaping metals) within 15 to 25 calendar days.
Scale Up Your Business with a Reliable Tree Grates Manufacturer
Secure Factory-Direct B2B Pricing for Landscape Tree Grates
Expand your civil contracting and landscape architecture distribution lines with the highest-rated ADA-compliant tree pit covers available. Contact our international commercial sales division now to receive customized container weight simulations, volume-tiered factory price matrix structures, and full CAD drafting consultations.
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
