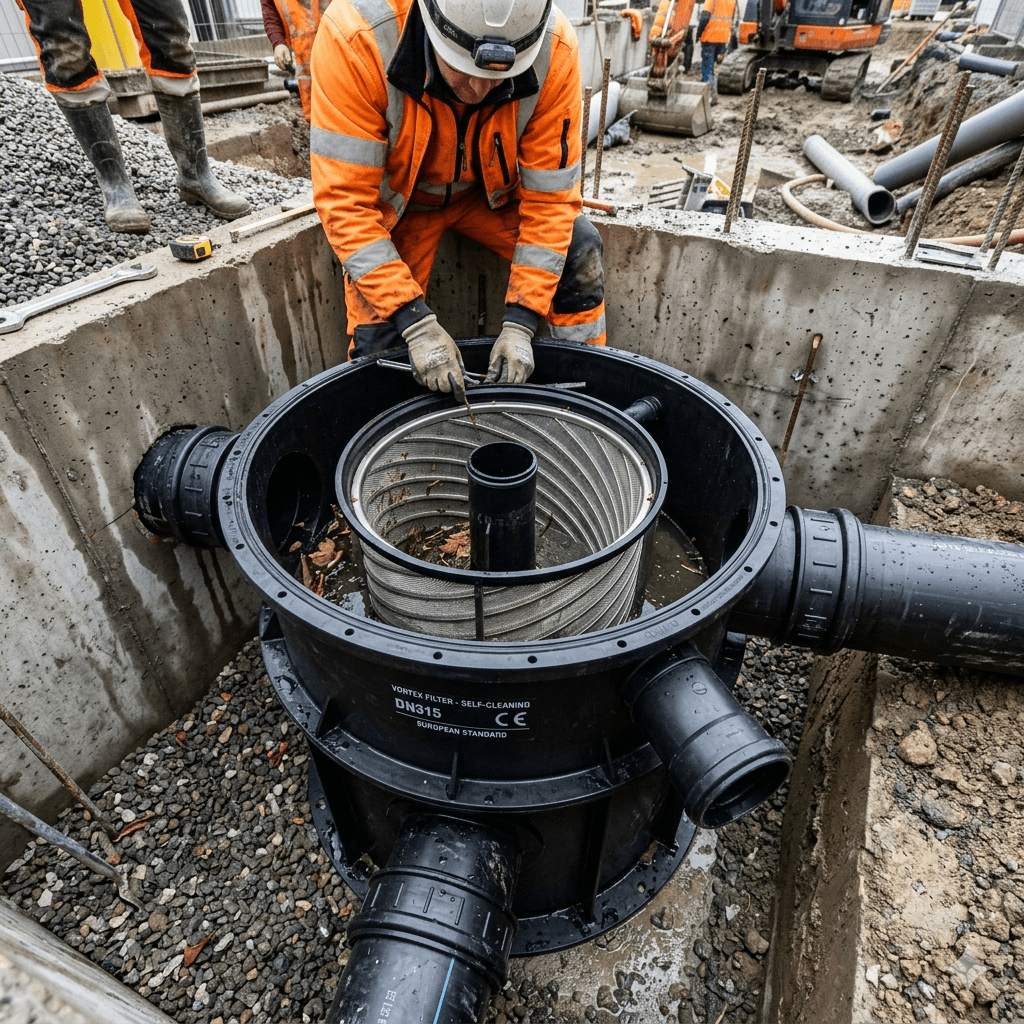

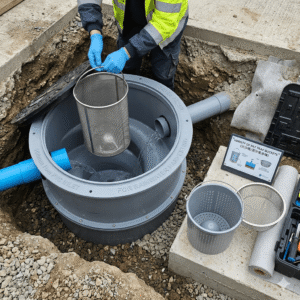

Self-Cleaning Vortex Rainwater Filter for Industrial Underground Pipelines
Optimize large-scale commercial rainwater management networks with cutting-edge subgrade engineering. As a core component of premium **Underground Pipeline Filters**, our Vortex Rainwater Filter utilizes natural gravitational hydraulics to replace high-maintenance inline basket screens. Installed directly within buried drainage lines before storage cisterns or retention ponds, this filter manages peak torrential stormwater volumes efficiently, separating particulates continuously while protecting civil assets against silt accumulation.
High-Velocity Centrifugal Flow with Zero Moving Parts

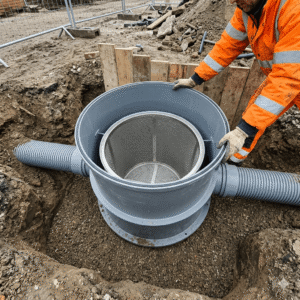

Our vortex technology works through geometric fluid controls. Incoming stormwater enters the chamber tangentially, spiraling downward at high velocity. The kinetic force pushes clean water horizontally outward through a fine vertical stainless steel cylindrical screen mesh matrix. Simultaneously, heavier suspended solids, sand, and roof moss patches are driven down the center core to the discharge drain, delivering a highly continuous, non-clogging operation profile.
Heavy-Duty Civil Specification & Earth Loading Endurance
- Structural Subgrade Housing Configurations: Available in thick-walled, rotationally molded virgin HDPE or industrial 1.5mm to 2.0mm thick SUS304/SUS316 stainless steel casings for harsh chemical soils.
- Transatlantic Pipeline Adaptation: Standard socket and spigot collar variants align with European DIN standard DN110/DN160 lines and North American smooth-wall PVC drainage pipe profiles.

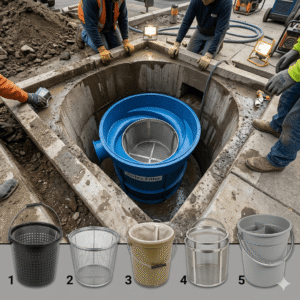

- Integrated Telescopic Extension Shafts: Accommodates variable underground pipeline installation depths, allowing inspection covers to flush perfectly with finish grading, turf, or asphalt walkways.
- Over 95% Filtration Yield: Precision laser-slotted or wire-mesh cylinders capture particulate matter down to 200–500 microns, ensuring exceptionally clear water quality for sustainable recycling cisterns.
Technical Specifications & Pipeline Hydraulic Parameters
| Model Parameter | Medium Commercial Variant (VF-160) | Heavy Industrial Variant (VF-315) |
|---|---|---|
| Pipeline Connection Size | DN 160 (Approx. 6 inch Outer Diameter) | DN 315 (Approx. 12 inch Outer Diameter) |
| Max Catchment Area Cover | Up to 500 m² (Roof / Surface catchment) | Up to 3,000 m² (Commercial warehouse hubs) |
| Max Hydraulic Flow Rate | 11 Liters / second peak threshold | 75 Liters / second high-volume profile |
| Inner Core Mesh Alloy | SUS304 Trapezoidal wedge wire profiles | SUS316 Marine-grade micro-perforated matrix |
| Mesh Aperture Rating | 0.35 mm ultra-fine particulate filter | 0.50 mm or 1.0 mm custom sorting grid slots |
| Burial Depth Adjustment | 400mm – 1000mm via modular collar extensions | Up to 2500mm using reinforced dynamic shafts |
Industrial Freight Handling & Project Supply Packaging
As a key supplier for international infrastructure procurement, we engineer our export logistics to withstand rough trans-shipment and long-term dock staging. Medium and heavy industrial vortex filters are individual secured to heavy reinforced wooden bases using heavy-duty poly strap matrices. All fine fittings, extension shafts, and premium internal filter inserts are bundled within IP65-sealed weather-proof protective films. We optimize maritime freight space, provide structured product load distributions, and offer complete customs declaration files, and trace certifications for seamless arrivals across global construction sites.
Frequently Asked Questions (FAQ)
A1: Our vortex underground filters feature optimized interior fluid angles that balance drop metrics with high fluid speeds. Depending on the model connection diameters (DN110 to DN315), the required level difference between the inlet invert and dirty water outlet invert ranges from 250mm to 450mm, ensuring efficient separation without requiring extra pumping stations.
A2: The vertical orientation of our wedge-wire stainless steel screen filter prevents debris from baking onto or pinning against the slots. When the first heavy storm-water surge flushes through, the tangential hydraulic impact produces an active scouring action that strips off pre-existing sediment layers, sweeping them directly into the sewer bypass channel.
A3: Yes, our heavy poly housings feature computer-optimized reinforcing ribs that easily withstand earth loads. For installations under heavy commercial traffic lines (SLW 60 rating / Class D loading), we provide heavy-gauge stainless steel vault bodies and recommend a localized concrete load-distribution ring surrounding our inspection covers to isolate vehicular stresses.
A4: Unlike basket systems that require monthly deep cleaning, our vortex models are virtually maintenance-free. We recommend a basic visual inspection twice a year through the access cover. If severe organic grease layers build up, the internal stainless filter cylinder can be pulled straight up using its pre-installed lifting handle and pressure washed in less than 5 minutes.
