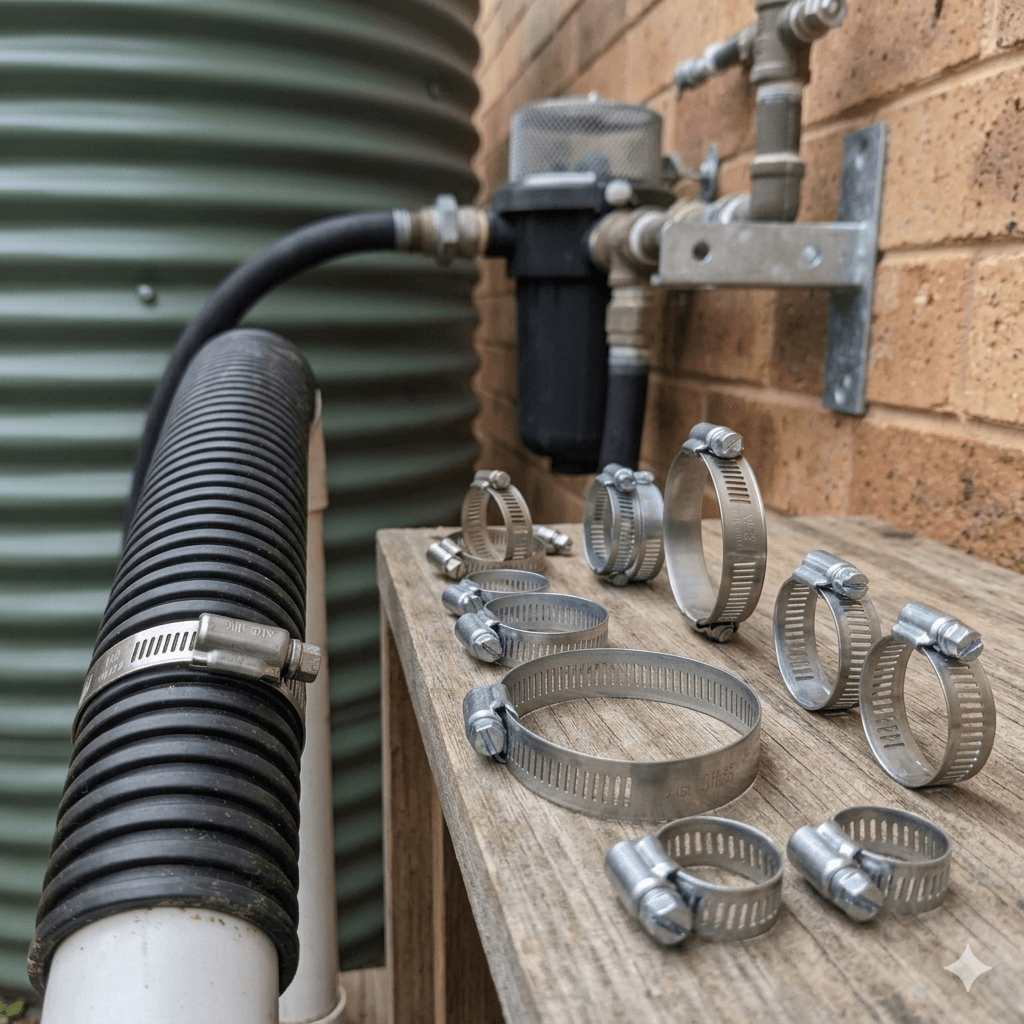

A close-up, eye-level product application photo of rain harvesting and filtration systems. In the foreground, a stainless steel worm drive hose clamp is securely installed on a black corrugated hose. On the wooden shelf to the right, a variety of full stainless steel DIN 3017 standard Worm Drive Hose Clamps in multiple sizes are displayed, showcasing their premium metallic finish. The background features a green rainwater tank and a plumbing filter system.

Engineered as the premium structural fastening component for European and American rainwater harvesting and filtration networks, our heavy-duty Worm Drive Hose Clamps (widely known as Jubilee Clips in the UK) offer maximum corrosion resistance. Featuring a smooth, non-perforated inner band, they provide uniform high-torque radial compression without biting or cutting into flexible suction or connection conduits.

Category:
Add to quote

Heavy-Duty Worm Drive Hose Clamps & Jubilee Clips for Rainwater Harvesting Infrastructure

In mid-to-large scale rainwater utilization and sustainable filtration plumbing, a system is only as secure as its fastening joints. The continuous vibration from high-flow booster pumps, combined with the permanent high-humidity inside underground concrete cisterns, places massive mechanical stress on hose joints. Our premium Worm Drive Hose Clamps, also referred to globally as Jubilee Clips, are specifically optimized to eradicate pipeline blowouts. Perfect for securing reinforced suction hoses, corrugated link pipes, and terminal garden quick connectors, these structural fasteners deliver localized, uniform radial locking pressure to ensure your ecological water loops remain 100% airtight and leakage-free for decades.

Key Performance Advantages

  • Full Grade 304/316 Stainless Steel: Unlike low-tier clips that hide a cheap zinc-plated carbon steel screw inside a stainless band, our entire clamp (including housing and screw) is crafted from genuine anti-acid steel, passing aggressive salt-spray evaluations.
  • Smooth, Non-Perforated Stamped Band: The internal band face is strictly stamped and features rolled-up edges, preventing the metal from slicing into soft PVC, EPDM, or rubber hose jackets under maximum tension.
  • High-Torque Precison Worm Gear: The cold-formed thread housing provides rigid interlocking with the worm screw, eliminating stripping, slipping, or backward gear creeping during intense hydraulic expansion loops.
  • Global Standard Compliance Matrix: Precision machined to fulfill British Standard BS 5315 (Jubilee), German DIN 3017, and American SAE J1508 parameters, ensuring effortless specification approvals for engineering bids.

Technical Specifications

Clamping Size Range (mm) Band Width & Thickness Material Matrix & Torque Rating International Compliance
8-12mm / 10-16mm / 12-20mm 9.0mm Width x 0.6mm SUS304 Stainless Steel / Max 3.5 Nm DIN 3017 / Small Tubing
16-27mm / 20-32mm / 25-40mm 12.0mm Width x 0.7mm SUS304 or SUS316 / Max 5.0 Nm BS 5315 Jubilee Style (UK/EU)
32-50mm / 40-60mm / 50-70mm 12.7mm (1/2″) x 0.7mm Full Stainless W4/W5 / Max 6.0 Nm SAE J1508 American Type
60-80mm / 70-90mm / 90-110mm 12.7mm (1/2″) x 0.8mm Heavy Duty Construction / Max 6.8 Nm High-Flow Suction Pipe Fasteners
110-130mm / Custom Oversize 14.0mm Width x 0.9mm Marine Grade SUS316 / Max 8.0 Nm Commercial Filtration Chambers

B2B Supply Chain Packaging & Commercial Logistics Compliance

As a global B2B contract manufacturer specializing in high-performance fluid clamps, we operate high-speed automated stamping and assembly lines to secure flawless quality consistency. For international plumbing wholesalers and home improvement chains, we offer tailored retail presentation methods, including custom-branded assortment organizer boxes (e.g., 50pcs/100pcs mixed hardware kits), individual polybags with header slots, or bulk industrial carton packing. Our logistics facility adheres to absolute export stringency; all master cartons are securely stacked, plastic-wrapped, and loaded onto certified heat-treated ISPM-15 wooden skids or Euro-pallets to guarantee scratch-free maritime or trans-continental freight fulfillment.

Frequently Asked Questions (FAQ)

Q1: What is the technical difference between a “Worm Drive Hose Clamp” and a “Jubilee Clip”?A1: Mechanically, they utilize the same worm gear concept. However, “Jubilee Clip” is the historic brand terminology predominantly used in the United Kingdom, Ireland, and South Africa, typically requiring specific British thread pitches. “Worm Drive Clamp” is the universal industrial classification favored in North America and mainland Europe, matching SAE or DIN specifications. Our factory manufactures variants that perfectly satisfy both regional specifications.
Q2: Why is a non-perforated embossed steel band crucial for rainwater harvesting hoses?A2: Cheap American-style clamps have perforated rectangular slots punched straight through the steel band. When torqued down, soft PVC or rubber expansion hoses squeeze through these holes, leading to severe localized extrusion cutting. Our embossed stamped bands leave the internal steel face 100% smooth, maintaining a uniform 360-degree liquid-tight compression boundary without harming the flexible pipe.
Q3: How do we identify if a clip is entirely stainless steel or contains hidden carbon steel elements?A3: Many commercial suppliers cut costs by using a stainless band combined with a zinc-plated carbon steel screw. In damp rainwater cisterns, the screw will fail first, snapping the joint. Our factory strictly utilizes W4 (All 304 Stainless Steel) and W5 (All 316 Marine Grade Stainless Steel) classifications, meaning every component, down to the tiniest pivot pin and screw housing, is fully non-magnetic anti-corrosive steel.
Q4: What is the Minimum Order Quantity (MOQ) for mixed custom hardware kits?A4: For bulk individual sizes packed in factory neutral boxes, our MOQ is 5,000 pieces per size due to high-speed automation tooling. For customized multi-size retail plastic organizer kit boxes carrying your brand logo labels, we can support a lower trial MOQ of 1,000 total assortment boxes. Mixed container orders are fully welcome.

Get Custom Worm Drive Hose Clamps Technical Layouts & Factory Estimates

Are you a rainwater storage kit aggregator, fluid hose manufacturer, or industrial hardware distributor seeking to protect your brand from loose joints and rusty consumer returns? Secure an elite manufacturing alliance with our automated factory today. Contact our international trade department now to receive official SGS salt spray test reports, physical sample boxes, and tiered B2B bulk pricing contracts.

Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!


📧 Request a Bulk Quote & Free Sample Now

Application

Rainwater Harvesting Systems, Suction Hose Fastening, Downspout Filtration Link
Product Terminology

Worm Drive Hose Clamps / Jubilee Clips (UK Standard)
Material Grade

Full SUS304 / SUS316 Stainless Steel (Band, Housing & Screw)
Band Width

8mm (Mini), 9mm (German Type), 12.7mm (1/2" American Type)
Clamping Range

8-12mm up to 110-130mm (Full engineering range options available)
Screw Head Type

Slotted Hex Head (7mm / 8mm) / Phillips Cross Drive
Band Design

Smooth Stamped Inner Band (Non-Perforated to protect soft hoses)
Corrosion Resistance

Over 100-500 Hours Salt Spray Test (Grade 4/5 Outdoor Rating)
Max Torque Resistance

4.5 Nm – 6.8 Nm (Depending on band width)
Target Market Standards

DIN 3017 (Germany), SAE J1508 (USA), BS 5315 (UK Jubilee Spec)
