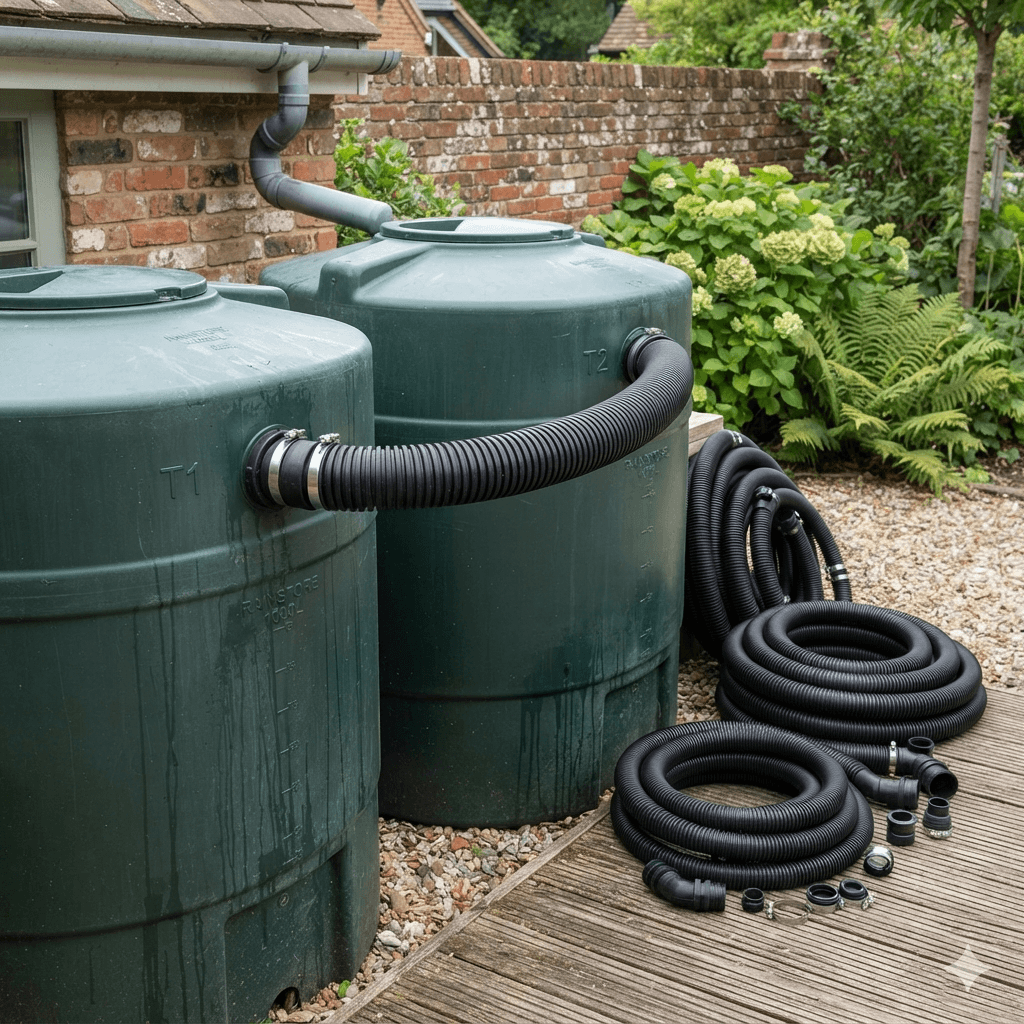

Heavy-Duty Corrugated Tank Connection Hose for Multi-Cistern Rainwater Harvesting Networks
When engineering multi-tank rainwater storage configurations or installing large-scale underground cisterns, rigid piping joints often fail due to soil shifting, thermal expansion, or continuous water pump pulsations. Our premium Corrugated Tank Connection Hose provides the perfect flexible decoupling solution for modern rainwater harvesting and filtration systems. Optimized for European modular water butts and American residential rain networks, this heavy-duty flexible coupling links adjacent storage tanks flawlessly, enabling uniform water balancing and trouble-free overflow redirection.
Key Performance Advantages
- Anti-Kink Corrugated Profile: The engineered corrugated geometry allows tight bending radii without collapsing or narrowing the inner diameter, ensuring constant maximum water flow rate.
- Premium UV and Weather Resistance: Formulated with advanced UV-stabilized polymers, this connector resists sun degradation, algae growth, and environmental stress cracking under extreme outdoor exposure.
- Vibration and Settlement Compensation: Absorbs mechanical stress from high-power filtration pumps and tolerates uneven ground settling between connected rainwater storage tanks.
- Heavy-Duty Industrial Fittings: Equipped with precision BSP/NPT threaded brass nuts or industrial-grade compression seals to prevent annoying structural leaks over decades of continuous submersion or surface installation.
Technical Specifications
| Technical Parameter | Available Specifications | International Standard |
|---|---|---|
| Inner Diameter (DN) | DN20 (3/4″), DN25 (1″), DN32 (1-1/4″), DN40 (1-1/2″), DN50 (2″) | Standard Metric & Imperial Sizing |
| Hose Material Matrix | High-Density UV-Stabilized Polyethylene (PE) / Flexible EPDM | RoHS & REACH Material Compliance |
| End Connection Style | Forged Brass Nut / PP Union Nut / Stainless Steel Flange Connector | ISO 228 / ANSI B1.20.1 |
| Max Working Pressure | Up to 3 Bar (Gravity Flow & Low-Pressure Suction Networks) | Hydrostatic Factory Tested |
| Temperature Tolerance | -20°C to +80°C (Optimized for Outdoor Above-Ground Tanks) | All-Climate Performance Proven |
| Customization | Custom Lengths (20cm to 300cm), Pre-Assembled Kits, Retail Packaging | Full OEM/ODM Support |
B2B Supply Chain, Custom Packaging & Logistics
As a seasoned manufacturing partner exporting to top-tier water management brands in Germany, the UK, France, and the United States, we specialize in high-volume, turn-key B2B fulfillment. We can provide full tank connection assembly kits including the corrugated hose, brass fittings, rubber washers, and even hole-saw drill bits. For distribution networks, we support customized commercial presentation options, including polybags with header cards, bulk cardboard boxes, or color-coded labels. All shipments are palletized according to strict European Pallet (EPAL) or ISPM-15 US customs standards to ensure safe, moisture-free maritime transit.
Frequently Asked Questions (FAQ)
A1: Rigid PVC pipes are prone to cracking or leaking at the connection thread when rainwater tanks settle or expand due to fluctuating water weight. The corrugated hose profile absorbs this structural shift entirely, requiring no precise pipe cutting or gluing during installation.
A2: Absolutely not. Our rainwater tank connectors are extruded using custom-formulated PE/EPDM blends containing high-grade carbon black and anti-UV stabilizers, specifically engineered to withstand harsh North American and European solar radiation without dry-rotting or degrading.
A3: This corrugated connection hose is optimized primarily for gravity-fed interconnectivity, gravity downspout filter links, and low-pressure suction distribution. If your filtration system utilizes ultra-high vacuum suction pumps, please consult our engineering department for our reinforced inner-core helix options.
Get Custom Corrugated Tank Connection Hose Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
