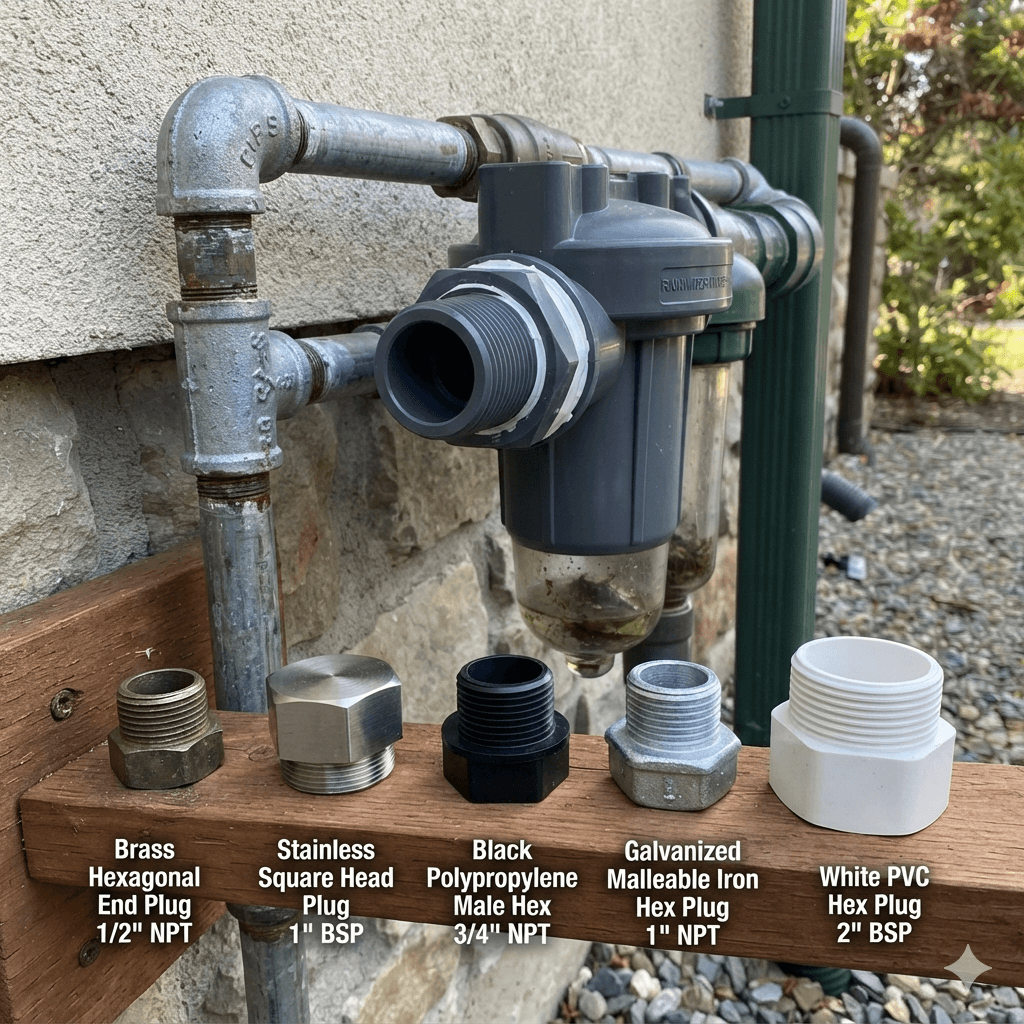

Premium Hex & Square End Plugs for Commercial Stormwater & Residential Cistern Maintenance
In municipal rainwater attenuation grids and automated commercial filtration systems, providing reliable access for flushing out trapped silt while guaranteeing a zero-weep seal during standard operations is vital. Our End Plug for Rainwater Harvesting offers the ultimate containment rating for integrated manifold branches. When threaded inside the bottom chamber of a vortex filter, a downspout first-flush diverter, or clean-out access points of underground storage vaults, these plugs effectively withstand deep water columns and pressure cycles while remaining completely removable for periodic site service.
Why Our Solid Threaded End Plugs Outperform Generic Irrigation Fittings
- Solid-Core Cast Construction: No hollow cavities mean enhanced strength to withstand violent water hammer shockwaves during intense, localized flash floods.
- Hex & Square Options: Hex plugs provide a clean profile for standard sockets and adjustable wrenches, while Square plugs are excellent for high-fouling underground ports that require heavy-duty leverage bars to open.
- Universal Global Thread Standards: Precision CNC threading line delivers separate, verified options matching North American NPT/NPTF parameters and European BSP/BSPT/G formats perfectly.
- Advanced Environmental Resiliency: Complete material selection includes SUS316 for corrosive industrial runoff and UV-shielded Schedule 80 PVC for budget-driven green housing project designs.
Technical Specifications & Structural Tolerances
| Specification Parameter | Stainless Steel End Plug (Forged / Cast) | Plastic End Plug (Molded PVC / Nylon) |
|---|---|---|
| Male Thread Sizes | 1/4″ to 4″ (DN8 – DN100) | 1/2″ to 3″ (DN15 – DN80) |
| Drive Configurations | Solid Hex Head, Solid Square Head, Countersunk Socket | Heavy Hex Nut Profile with top raised gripping bars |
| Thread Class Standards | ANSI B1.20.1 (NPT), EN 10226 (BSPT), ISO 7-1 | Molded NPT American Standard / Metric European |
| Pressure Rating Bounds | 150lbs, 3000lbs Forged Class, PN16 / PN25 | Schedule 80 Heavy Wall rating, ASTM D2467 |
| Material Certification | EN 10204 3.1 Mill Test Compliant, ASTM A182 | Virgin resin formula, NSF/ANSI 61 Drinking Safe |
| Estimated Lifespan | 65+ Years embedded in aggressive chemical soils | 40+ Years exposed to direct daylight weather paths |
Advanced B2B Palletization & Rapid Cross-Border Transit Security
As an established wholesale supplier managing continuous procurement contracts with international water utility groups and plumbing distributors, we enforce a zero-damage logistics workflow. Because external threads are highly vulnerable to localized nicking or compression cross-friction inside loose cargo sacks, our end plugs are placed into compartmentalized grid trays before final master boxing. These cases are layered onto standard, heat-treated ISPM-15 export wooden pallets, shrink-wrapped, and steel-banded. Our warehouse proximity to major deep-water seaports ensures highly optimized shipping tariffs and agile delivery options (FOB, CIF, DDP) straight to your regional logistics hubs.
Frequently Asked Questions (FAQ)
Q1: How do I choose between a male End Plug and a female Pipe Cap when sealing a junction in a rainwater system?
A1: Selection depends entirely on the gender of the pipe interface you are terminating. If you have a raw pipe section or a male-threaded pipe end extending outwards, you must slide a female **Pipe Cap** *over* it. However, if you are terminating a valve body, the branch outlet of a tee, or a port integrated into a tank bulkhead (which always feature internal female threads), you must screw a male **End Plug** *inside* the port. End plugs are the ideal choice when a flush, compact finish is required to fit inside space-limited service boxes.
Q2: What are the distinct application advantages of a Hex Head plug compared to a Square Head plug?
A2: Hex head plugs feature a lower vertical profile and allow contractors to use standard sockets, open-ended spanners, or crescent wrenches, which is perfect for compact, neatly packed indoor pump manifolds. Square head plugs project further outward from the port, allowing operators on heavy commercial construction sites to use large pipe wrenches or pry bars. This extra leverage is critical for loosening plugs that have become bound by underground soil compaction, mineral scaling, or seasonal frost lock.
Q3: How do your threaded plugs perform under constant, repeated disassembly during seasonal filtration washouts?
A3: For ports designed for aggressive maintenance, such as flushing out muddy sediment traps, our Stainless Steel (304/316) plugs feature precision-chased threads with specialized anti-galling tolerances. For plastic networks, our Schedule 80 PVC and reinforced nylon plugs maintain their structural pitch and angle over multiple thread engagements, provided a standard thread lubricant or PTFE sealing tape is applied during each reset.
Q4: Can we purchase your small-diameter end plugs pre-drilled or adapted for electronic telemetry instrumentation?
A4: Yes, we provide comprehensive OEM custom machining services. Many advanced municipal stormwater networks require tracking fluid pressure or water levels via electronic telemetry. Our facility can custom-bore solid hex blanks to accommodate specific capillary channels or tap custom internal threads, allowing you to use the plug as an airtight sensor mount for your proprietary tracking probes.
Get Custom End Plug for Rainwater Harvesting Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
