Industrial-Grade Floating Suction Inlets for Water Pump Systems

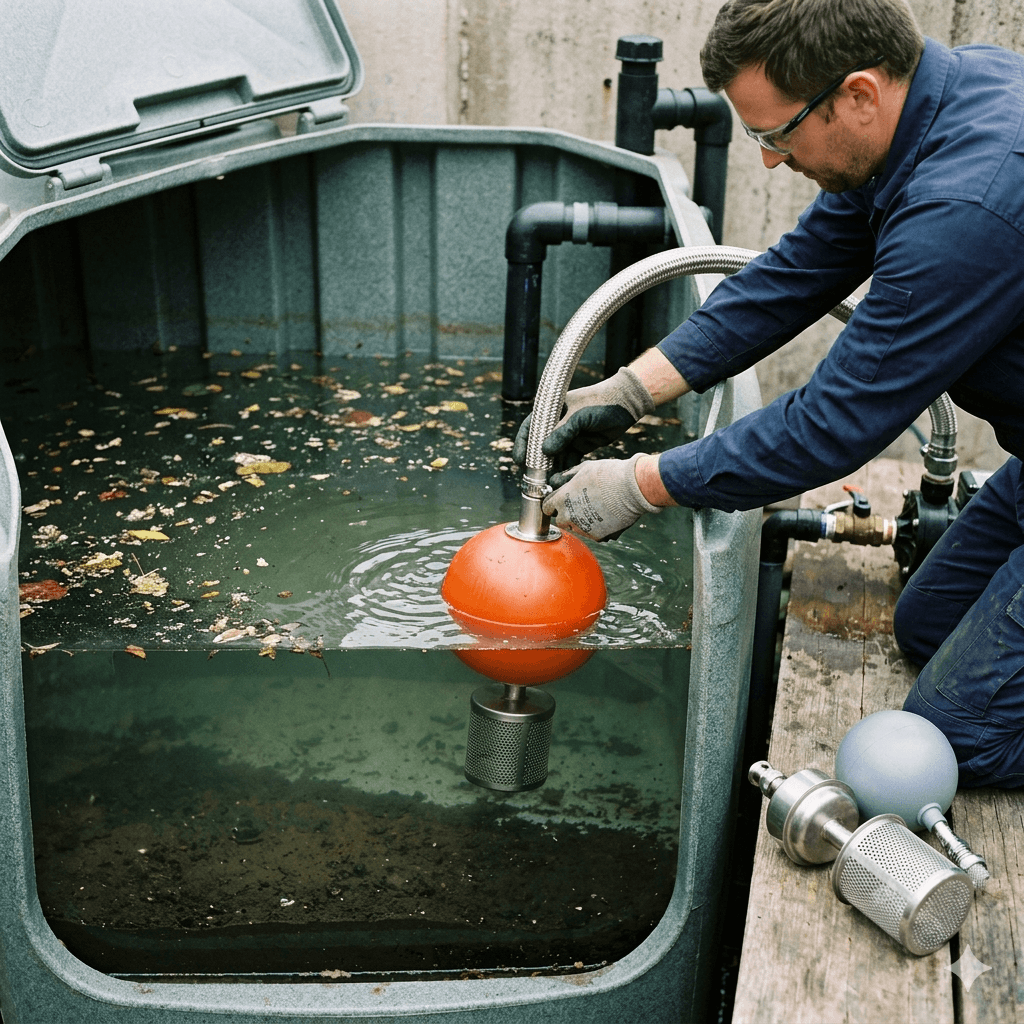

Achieving pristine water quality in commercial and domestic rainwater harvesting setups requires smart extraction zoning. Our professional-grade Floating Suction Inlet (also known across global markets as a floating intake or water sweeter) solves a major systemic plumbing flaw. In any stagnant holding tank, fine heavy particles naturally settle into a muddy bottom layer, while airborne pollens, oils, and micro-plastics float along the absolute top surface film. Our floating mechanism ensures that your suction pump draws water strictly from the middle zone—precisely 10 to 15 centimeters below the moving water level—where the water remains at its highest biological and mechanical purity.
Strategic Advantage of Sub-Surface Floating Water Intake Units
- Precision Selective Extraction: Automatically adjusts with fluctuating water levels to continuously draw water from the cleanest zone, preventing sediment resuspension.
- Integrated Secondary Filtration: Outfitted with an anti-corrosive stainless steel mesh screen cap to block granular sediments from entering the suction piping.
- Integrated One-Way Check Valve: Prevents water backflow and maintains constant pump prime, preventing dry-running and operational pressure delays.
- Durable Non-Toxic Metallurgy: Built using heavy-duty SUS304/316 steel and premium eco-resins, matching strict UK BS 8515 and American rainwater purity norms.
Targeted Deployment in Advanced Rainwater Filtration Architecture
Standard static drop-pipes constantly risk sucking up bottom grit that shreds pump seals or surface film that fouls sensitive downstream fine sediment filters. Our B2B-grade floating extraction assemblies provide the ideal fluid entry point for multi-stage water infrastructure setups:
- Domestic Rainwater Utilization Hubs: Feeds water directly into home filtration setups supplying washing machines and toilet flush networks, eliminating foul odors and staining particles.
- Commercial Greywater Treatment Plants: Acts as the intake regulator inside heavy-duty multi-chamber storage holding vaults, reducing the backwash frequency of automatic secondary media filters.
- Precision Drip Irrigation Networks: Feeds clean water into agricultural micro-sprinklers, avoiding nozzle blockages caused by suspended silt or organic matter typically stirred up from tank floors.
Technical Specifications & Configuration Matrix
| Technical Parameter | Standard Export Specification | Custom Available Range |
|---|---|---|
| Connection Sizes (Inches / DN) | 1″ (DN25), 1-1/4″ (DN32), 1-1/2″ (DN40) | Up to 3″ (DN80) for high-flow industrial pumps |
| Extraction Position Depth | 100 mm to 150 mm below fluid surface | Adjustable tether cable chains up to 500mm |
| Buoyancy Float Material | Hollow AISI 304 Stainless Steel Ball (150mm) | Food-Grade Polyethylene (PE) Sealed Float Pods |
| Filter Screen Mesh Rating | 1.2 mm Aperture Mesh (SUS304) | 0.3 mm / 0.5 mm / 0.8 mm ultra-fine screening |
| Suction Hose Specification | 1.5m to 2.5m Highly Flexible Anti-Collapse PE | Custom lengths up to 10 meters with steel wire reinforce |
| Check Valve Configuration | Integrated heavy-brass one-way foot valve | Full Stainless Steel (SUS316) Spring Foot Valve |
Global B2B Wholesale Supply Chain & Freight Engineering
Operating as an export-oriented global manufacturer specializing in advanced water tank internals, we understand that supply chain reliability, physical item packaging stability, and regulatory certification are crucial to European and American B2B building material distributors. We guarantee high-performance manufacturing backed by elite trade logistics:
- Shock-Proof Foam Matrix Packaging: To prevent any denting or leakage of the hollow stainless steel float balls during rugged international ocean transit, every unit is individually nestled inside pre-molded high-density polyethylene foam cradles and secured within heavy double-wall master export boxes.
- Full Material and Pressure Verification: Every floating inlet batch leaves our factory with certified hydrostatic test records proving foot-valve sealing accuracy and PMI alloy analysis confirming full 304/316 structural classification.
- Optimized Freight Consolidated Routes: Fast-track manufacturing pipelines supporting both Less-than-Container Load (LCL) pallet distribution and Full Container Load (FCL) sorting straight to main logistics gateways including Rotterdam, Felixstowe, and Long Beach.
Frequently Asked Questions (FAQ)
A1: Water directly at the surface contains light floating debris, dust, and organic oils forming a film layer. Conversely, water at the absolute bottom of the tank contains settled fine sediments. Fluid dynamics and biology prove that the layer sitting 10–15 centimeters beneath the water line is the cleanest zone, with minimum bacterial concentrations and particulate matter.
A2: No. Our specialized flexible suction hoses are manufactured using high-tensile food-grade polymers reinforced with an integrated rigid plastic spiral ribbing or steel wire core. This engineering design prevents vacuum-collapse under heavy pump suction pressure while remaining highly flexible across varied ambient water temperatures.
A3: No. The integrated heavy-duty brass or stainless steel foot valve features an optimized wide-port internal flow channel that creates minimal friction loss. It is designed to maintain a perfect hermetic seal when the pump cycles off, keeping the suction line fully primed to prevent dry-running wear.
A4: Absolutely. We work extensively as a dedicated OEM and ODM supplier for tier-1 plumbing and engineering brands. We can customize hose lengths up to 10 meters, integrate BSP or NPT thread configurations, or supply specialized quick-disconnect camlock adapters to match your engineering blueprints.
Get Custom Floating Suction Inlet for Water Tank Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
