Industrial-Grade Hose Barb Bulkhead Fitting | Extended Plastic Hose Barb Fitting with Gasket
In mid-to-large scale rainwater harvesting layouts, agricultural siphon structures, and commercial drainage networks across North America and Europe, managing stable fluid transitions at the vessel wall is critical. Our industrial-grade hose barb bulkhead fitting lineup delivers the definitive mechanical answer for routing fluid safely through polymer tank surfaces. By utilizing an advanced extended plastic hose barb fitting with gasket blueprint, these professional-grade gray fittings expand the available internal locking area, delivering a multi-stage serrated tail that locks deeply into heavy-gauge flexible rubber or vinyl tubing lines.
Image-Verified Mechanical Strengths of Our Hose Tail Fittings:
- Monolithic Extended Hose Tail: The deep multi-serrated barb is molded as a single physical part with the body, ensuring zero seam cracking and maximizing internal pipe holding traction.
- Pre-Assembled Heavy-Duty Gasket: Outfitted with an extra-thick, weather-resistant EPDM washer that conforms seamlessly to round poly drum profiles, maintaining an absolute drip-free seat.
- In-Mold Permanent Specification Marks: Deep specification stampings are embedded directly on the heavy-duty hex neck (as shown in the inquiry image) to ensure rapid, permanent inventory sorting.
- All-Weather Impact Polymer Chemistry: Synthesized from virgin glass-reinforced resins to successfully endure brutal sub-zero winter frost expansion and blazing summer solar UV rays.
Technical Specifications & Material Performance Standards
To comply with rigid commercial plumbing and agricultural infrastructure specifications in international markets, our manufacturing lines maintain exact dimensional metrics. Below are our high-volume B2B export configurations.
| Nominal Standard Size | US Barb/Thread Specification | EU Barb/Thread Specification | Barb Tail Serration Count |
|---|---|---|---|
| 1″ (25mm) Series | 1 inch Barb ID / 1″ NPT Thread | 25mm Barb OD / G 1″ BSP Thread | 4-Stage Deep Holding Ridges |
| 2″ (50mm) Series | 2 inch Barb ID / 2″ NPT Thread | 50mm Barb OD / G 2″ BSP Thread | 5-Stage High-Load Ridges |
| 3″ (75mm) Series | 3 inch Barb ID / 3″ NPT Thread | 75mm Barb OD / G 3″ BSP Thread | 6-Stage Heavy Industrial Ridges |
| 4″ (100mm) Series | 4 inch Barb ID / 4″ NPT Thread | 100mm Barb OD / G 4″ BSP Thread | 6-Stage Commercial Torrential Ridges |
| Material Configuration | Glass-Fiber Reinforced Polypropylene (PP) / Industrial Schedule 80 PVC | Gasket: 4.5mm Weatherproof EPDM | |
Applications in High-Capacity Storm Overflows & Pumping Infrastructure

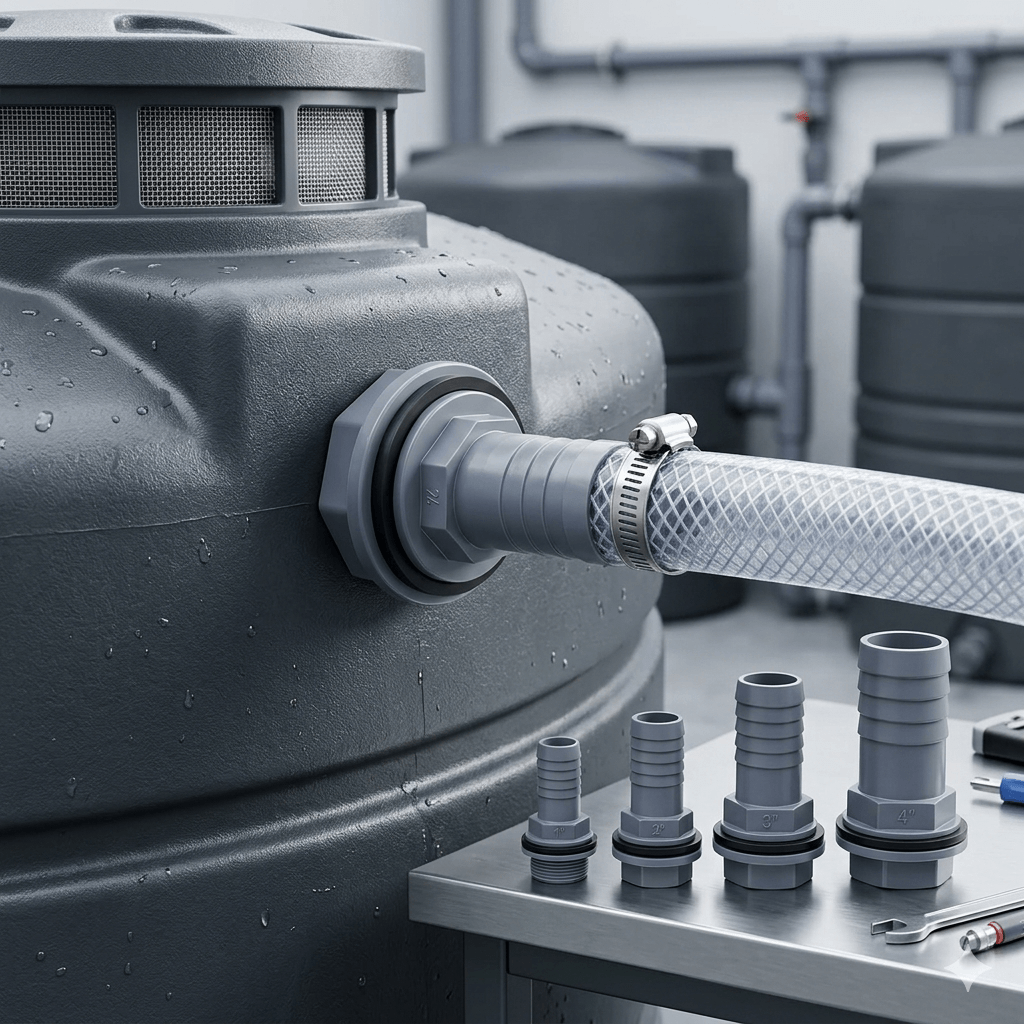

Our heavy-duty hose barb bulkhead fittings are highly specialized, high-utility anchoring assets built to withstand severe physical stresses inside large-scale water distribution frameworks. In multi-family residential blocks, massive commercial greenhouses, and industrial factory roofs across North America and Europe, torrential downpour water is captured inside multi-ton rotationally molded polyethylene (PE) cisterns. When installers set up drainage or high-velocity siphon lines using conventional short-tailed fittings, the huge weight of fluid-filled flexible hoses creates a destructive downward leverage force at the container wall interface. This continuous asymmetric load can cause micro-warping of the plastic tank shell or force the hose to slide off completely during a heavy storm. Our optimized extended plastic hose barb fitting with gasket resolves this hazard permanently. The extra-long multi-serrated barb maximizes internal gripping coverage, allowing heavy-duty hose clamps to bite deep into the tubing matrix. Whether deployed as a baseline extraction port for automated commercial irrigation pumps or as a full-bore 4-inch overflow conduit to redirect severe flash storm surges, it keeps lines securely locked and 100% drip-free over decades of outdoor weather exposure.
Global Supply Chain & Logistics Capabilities
As a leading China manufacturer of architectural environmental water management fittings and high-performance plumbing hardware components, our factory is optimized for high-volume OEM/ODM fulfillment and private labeling. Extended polymer fittings hold a significant global logistics advantage over heavy metallic alternatives: being exceptionally lightweight and structural-impact resistant, they permit massive reductions in landing oceanic freight expenditures per container quota. To prevent raw thread and sharp barb scuffing during long maritime transport intervals, our logistics center implements individual scratch-resistant bag isolation lines, high-rigidity internal cardboard stabilizer frames, and heavy shrink-wrapped wooden pallet structuring. We support international DIY superstores and specialized environmental hardware distributors with direct custom barcoding, custom structural molding stamps, and ready-to-sell retail bundle kits—packaging our premium barbed bulkhead connector alongside custom 304 stainless steel worm-gear hose clamps and high-density thread seal tape inside clean visual clamshell blister cards. Positioned in immediate proximity to premier deepwater maritime shipping hubs, we execute rapid automated container loadouts and streamlined custom clearings to maximize your localized distribution profit margins.
Frequently Asked Questions (FAQ)
Q1: Why is an extended multi-stage hose tail necessary for large-scale poly tank connections?
A1: Larger 2″, 3″, and 4″ flexible hoses carry immense water weights that generate high lateral pulling forces. An extended barb tail dramatically increases the mechanical friction area inside the tubing, allowing heavy clamps to bite into multiple secure ridges, preventing the hose from blowing off during peak storm velocity volumes.
Q2: What material grade creates the heavy grey body shown in the inquiry photo?
A2: The industrial gray body is injection-molded from a customized, glass-fiber reinforced high-impact Polypropylene (PP) or thickened Schedule 80 PVC. This engineering polymer matrix provides high structural toughness, completely repels acidic rainwater chemistry, and shares identical thermal expansion coefficients with large poly tanks.
Q3: Will the pre-fitted thick rubber washer maintain a tight seal on cylindrical tanks or round drums?
A3: Yes, perfectly. Every fitting features a pre-fitted, 4.5mm extra-thick washer manufactured from elite automotive-grade EPDM rubber. When the hex flange is driven home, the gasket compresses smoothly across curved surfaces, absorbing micro-deflections in the poly tank wall and ensuring a permanent 100% leak-proof seal.
Q4: What thread types can your factory cut into the bulkhead core for global distributors?
A4: We run distinct CNC machining configurations for different global standards. For North American pipe setups, we cut precise ANSI NPT tapered threads into the inner core. For European, British, and Australian distribution channels, we machine parallel ISO 228 BSP threads, ensuring a perfect airtight match with local hard-piping and valves.
Get Custom Hose Barb Bulkhead Fitting Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
