Manual Basket Strainer for Rainwater Harvesting Systems: Pre-Tank Filtration Units
In large-scale water management, ensuring clean raw water input is vital. Our heavy-duty Manual Basket Strainer is purpose-built to act as the primary Pre-Tank Filtration Unit in industrial, commercial, and municipal rainwater harvesting filter systems. Positioned strategically at the gravity-fed line right before the storage tank inlet, this strainer functions as the final, definitive mechanical filtration barrier to eliminate contaminants before they degrade your stored water quality.
The Final Shield Before Your Rainwater Storage Tank
Untreated roof and surface runoff contains organic matter like leaves, moss, debris, and gravel. If allowed into the storage tank, this debris breaks down into anaerobic sludge, ruining water clarity and fouling downstream pumps. Our pre-tank manual basket filter traps 100% of these large solids in an easily accessible mesh basket, keeping your reservoir pristine.
Engineered Features for Rainwater Applications
- High-Volume Gravity Flow Design: Engineered with a broad body diameter to handle sudden storm peaks and heavy downpours without causing fluid back-up or roof flooding.
- Corrosion-Proof Construction: Rainwater can be slightly acidic. Our strainer housings are available in grade 304/316 stainless steel or specially coated carbon steel to guarantee zero rust and decade-long service life.
- Optimized Debris Basket: Equipped with heavy-gauge perforated screens (ranging from 500 microns to 2mm) that optimize water throughput while providing unmatched strength against full-load debris pressure.
- Manual Quick-Access Cover: No specialized tools are required for seasonal or post-storm maintenance. Simply loosen the hand bolts, pull out the basket handle, dump the debris, and rinse.
Technical Specifications Table
| System Parameters | Pre-Tank Filtration Specifications |
|---|---|
| Recommended Application | Rainwater Harvesting Systems, Roof Runoff Pre-filtration |
| Installation Site | Immediately Prior to Storage Tank Inlet Pipe |
| Housing Materials | Stainless Steel 304/316, Epoxy-Coated Carbon Steel |
| Strainer Mesh Size | 10 mesh to 35 mesh (500µm to 2mm open size) |
| Inlet/Outlet Diameters | DN50 to DN400 (2″ to 16″ Flanged / Slip-On) |
| Filtration Mechanism | Manual Gravity-Fed Flow / Low-Pressure System Barrier |
| Cover Type | Quick-Release Hinged Cover / Swing-Bolt Manual Lid |
| Drainage System | Bottom flush port for fine sand/silt elimination |
B2B Supply Chain & Project Customization
We work closely with rainwater harvesting system integrators, green building contractors, and environmental engineering consultants worldwide. Whether you need a standard flanged model or a custom dimensions unit to fit into an existing underground pre-tank vault, we provide full technical drawing support.
- Custom Engineering: Layout matching for off-set inlets, air vent additions, and overflow integration options.
- Export Packaging: Packed in reinforced eco-friendly plywood crates with protective foam buffering to guarantee safe handling to global ports.
- Global Compliance: Manufacturing standards align with international environmental and mechanical pipeline criteria.
Frequently Asked Questions (FAQ)
A1: Placing the pre-tank filtration unit at the tank inlet makes it the absolute final mechanical barrier. This position ensures that any fine organic matter or leaves that bypassed the coarse roof-gutter guards are captured right before they enter the storage tank, significantly reducing tank muck build-up and septic odors.
A2: No. Our rainwater harvesting basket strainers are engineered with an extra-large basket housing body. The filtration open area ratio is over 600% of the pipe cross-sectional area, ensuring unrestricted gravity flow even under heavy torrential conditions.
A3: For typical roof runoff applications, we highly recommend our 1mm to 1.5mm stainless steel mesh screens. This mesh size balances excellent filtration (stops pine needles, seeds, leaves, and large insects) with prolonged maintenance intervals.

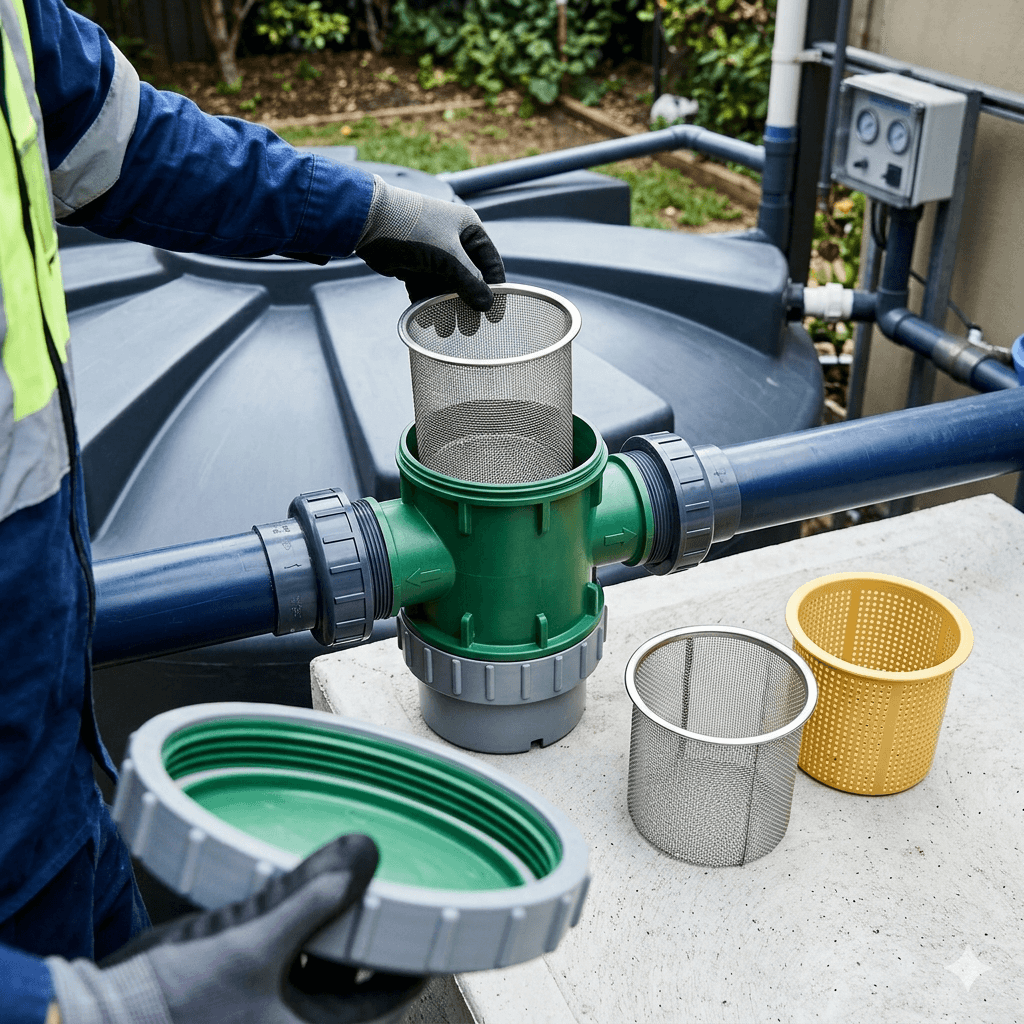

A4: Maintenance is highly efficient. Because it is a manual basket filter, operators simply open the swing bolts on the cover lid, lift out the lightweight basket by its integrated handle, shake off the organic matter, rinse, and place it back inside.
