Industrial Single Basket Strainer: High-Performance Pipeline Filtration Solution

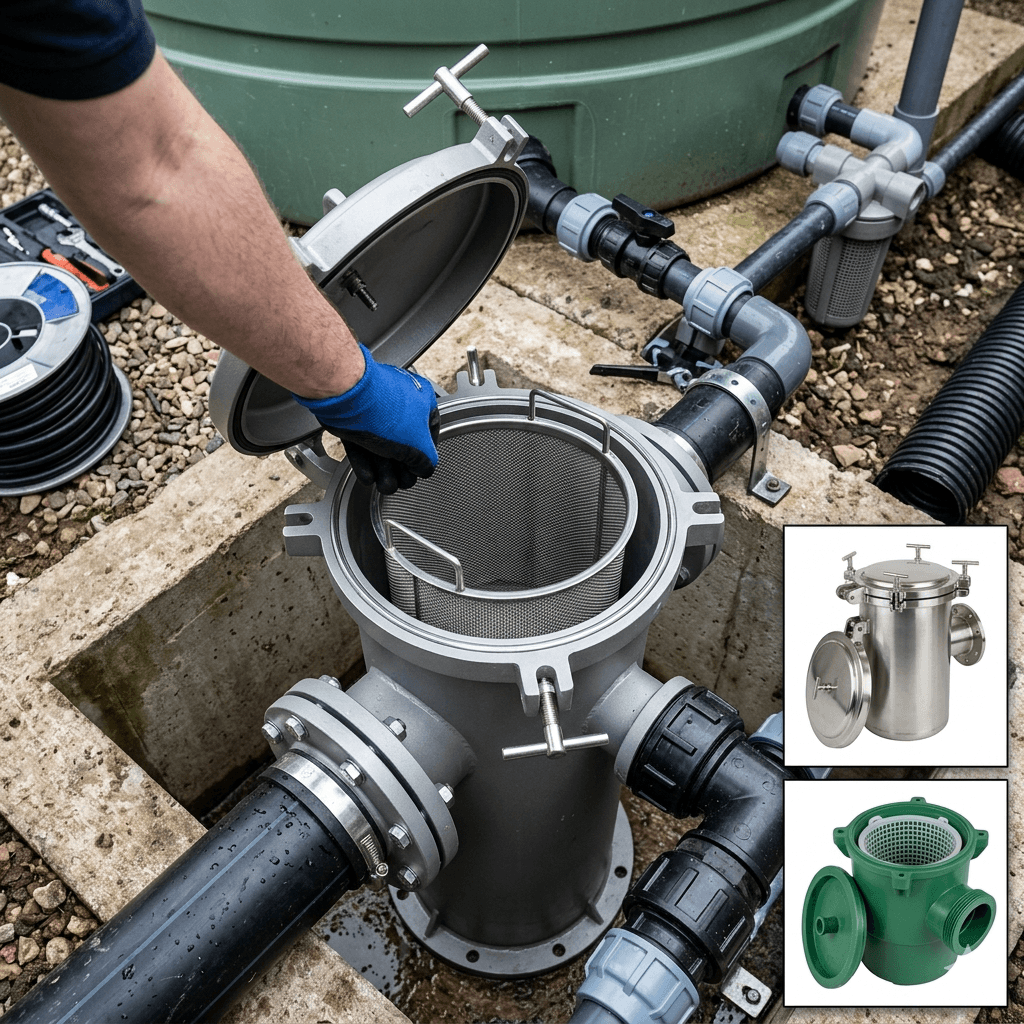

The industrial Single Basket Strainer (also known as a Simplex Strainer) is an indispensable filtration component designed to remove foreign particles from fluid pipelines. Positioned upstream of pumps, control valves, and measuring instruments, this strainer prevents costly damages, operational downtime, and component wear by trapping debris in its easily removable basket screen.
Why Choose Our Single Basket Strainer?
Our strainers are engineered with an optimized hydrodynamic body profile. This guarantees a remarkably low pressure drop while maximizing the open-area ratio of the internal basket. Built to handle harsh industrial environments, they deliver long-term reliability with minimum maintenance overhead.
Key Performance Features
- Premium Material Selection: Manufactured from superior cast steel (WCB) or stainless steel (CF8/CF8M) to withstand severe working pressures and temperatures.
- Optimized Basket Geometry: The heavy-duty stainless steel wire mesh basket provides maximum dirt-holding capacity, resulting in less frequent cleaning cycles.
- Flexible Connection Options: Fully compliant with global standard flange norms including ASME B16.5 Class 150/300, DIN PN16, and JIS 10K/20K.
- Custom Micron Ratings: Standard filtration profiles range from coarse perforated plates to ultra-fine multi-layered mesh weaves tailored to your specific process parameters.
Technical Specifications Table
| Technical Parameter | Standard Specifications |
|---|---|
| Nominal Diameter | 1″ to 24″ / DN25 to DN600 |
| Body Materials Available | ASTM A216 WCB, A351 CF8, A351 CF8M, Cast Iron |
| Strainer Basket Material | Stainless Steel 304, 316, 316L |
| Design Pressure Rating | Class 150, Class 300, PN16, PN25, PN40 |
| End Connections | RF Flanged, RTJ Flanged, Threaded NPT/BSPT |
| Filtration Rating Range | 20 mesh to 400 mesh (Perforations from 1mm to 5mm) |
| Operating Temperature | -29°C to +425°C (Depending on body and seal material) |
| Drain & Vent Plugs | Standard with NPT drain plug; custom vents available |
B2B Supply Chain & Logistic Advantages
As an established industrial valve and strainer exporter, we offer customized OEM/ODM services for procurement managers and engineering distributors. Our manufacturing line ensures rigorous hydro-testing and material traceability certification (MTC EN10204 3.1) for every single unit shipped.
- Seaworthy Packing: Wrapped in heavy-duty ply-wooden cases with internal moisture-barrier bags to prevent salt-water corrosion during long-haul sea freight.
- Rapid Lead Time: Standard sizes (2″ to 8″) are maintained in stock for urgent project requirements, enabling dispatch within 7-14 working days.
- Global Logistics Support: Seamless integration with FOB, CIF, CFR, and DDP shipping configurations through top international freight forwarders.
Frequently Asked Questions (FAQ)
A1: A single basket strainer (simplex) requires the pipeline flow to be temporarily shut down or bypassed during maintenance and basket cleaning. A duplex strainer features two separate chambers connected via a changeover valve, allowing continuous pipeline operation while one basket is being cleaned.
A2: The cleaning frequency depends on the fluid cleanliness. We recommend installing differential pressure gauges across the inlet and outlet. When the pressure differential reaches 0.05–0.1 MPa, it indicates the basket is loaded with debris and requires immediate servicing.
A3: Absolutely. We offer standard internal screens lined with 20, 40, 60, 100, up to 400 mesh stainless steel linings. For heavy oil or highly viscous mediums, we provide customized heavy gauge perforated plates to guarantee optimal structural integrity and flow rates.
A4: Yes, our single basket strainers are fully engineered and manufactured in accordance with ASME B16.34 and wall thickness requirements. Flange dimpling and drillings perfectly align with ASME B16.5 standards for easy drop-in replacement.
Get Custom Single Basket Strainer Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
