Stainless Steel Tapered Rainwater Filter Basket for Inline Rainwater Shafts
Maintaining long-term performance in downstream greywater utility pumps and multi-stage fine micron cartridges depends completely on efficient initial heavy trash containment. Our commercial-grade Stainless Steel Rainwater Filter Basket provides the ultimate heavy-duty, deep-capacity structural solution classified under essential water tank accessories. Expertly configured as a drop-in tapered insert for rainwater inline filtration shafts, this non-clogging steel cone traps heavy volumes of wind-blown leaf matter, decaying mulch, roofing bitumen, and macro-sediment while allowing thousands of gallons of clean fluid to pass into underground storage cisterns.
Advanced Performance Benefits of Tapered Pre-Filtration Cone Baskets
- Optimized Geometry for Gravity Flows: The specific tapered angle allows incoming raw stormwater to cascade down the sides, collecting debris efficiently at the wide bottom base without creating air locks or pipe backups.
- Rigid Structural Truss Engineering: Equipped with industrial cross-welded reinforcement ribs lining the perimeter, ensuring the mesh envelope never distorts or warps when full of wet debris.

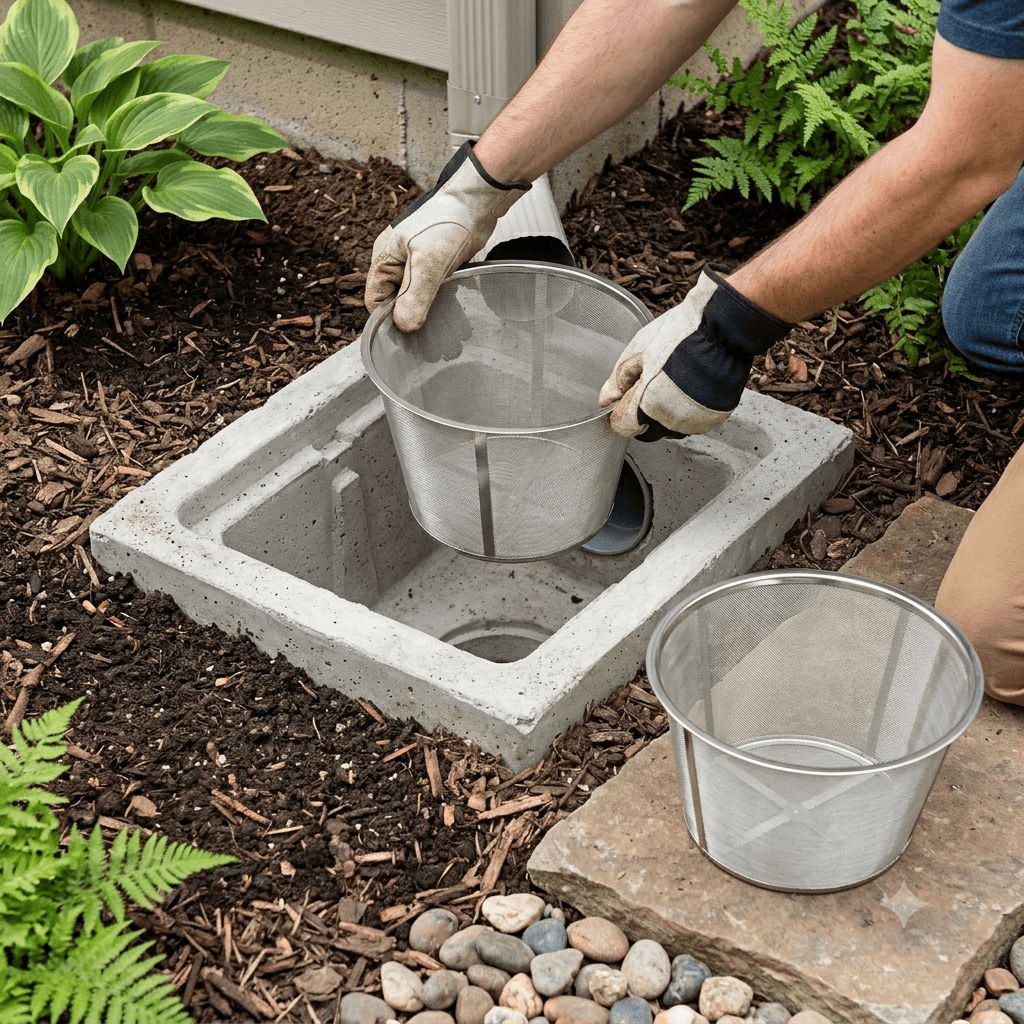

- Effortless Lift-Out Maintenance: Designed with an integrated top flange collar rim that hooks firmly onto step rings inside poly or concrete chambers, supporting quick pull-out clearing schedules.
- Immunity to Bio-Film & Tannic Degradation: Formed from raw, non-recycled metallurgical alloys that reject bacterial slime and withstand corrosive plant acids, matching UK BS 8515 eco-building parameters.
Targeted Deployment Touchpoints for Sustainable Stormwater Networks
Standard plastic plastic or flexible mesh fabric catch bags frequently split or rot within months under dark, damp underground conditions. As a leading B2B export manufacturer, we provide custom dimensional scaling to fit your proprietary plumbing designs perfectly:
- Underground Inline Filtration Wells: Drops effortlessly onto the internal seating ledge of poly-structural rainwater attenuation shafts, serving as the main physical shield protecting municipal water systems.
- High-Capacity Water Cistern Inlets: Placed beneath main gravity downspout junctions inside commercial vaults, creating an intuitive pre-screening stage that keeps floating impurities from choking down-stream calmed inlets.
- Commercial Runoff Pre-Treatment Blocks: Deployed in sustainable urban drainage systems (SuDS) across large parking structures to catch trash debris before water infiltrates local sand filter holding layers.
Technical Specifications & Ordering Configuration Matrix
| Technical Feature | Standard Export Specification | Custom Available Range |
|---|---|---|
| Structural Framework Type | Tapered Cone Basket with Welded Rigid Top Rim Collar | Cylindrical straight baskets / Hanging step-lip geometries |
| Alloy Metallurgy Grade | AISI 304 Premium Austenitic Stainless Steel | AISI 316 / 316L Marine Alloy for coastal storm sites |
| Mesh Aperture (Clear Opening) | 0.35 mm – 0.55 mm (High-retention macro intercept rating) | 0.25 mm up to 1.2 mm based on targeted debris criteria |
| Reinforcement Grid Profile | Cross-welded 4mm steel support bars along side and base | Perforated outer steel backup sheet wraps for industrial loads |
| Top Collar Outer Diameter | Standard 300 mm / 400 mm / 500 mm | Fully customizable from 150 mm up to 1500 mm Wells |
| Lifting Attachments | Flush-welded rigid wire cross-bars | Detachable chain linkages / Extended vertical loop tethers |
Global OEM Supply Chain & Volume Logistics Advantage
Operating as an export-driven global manufacturer specializing in stormwater management hardware, we understand that supply chain stability, high-burst container load factors, and verified metallurgical transparency are critical to European and American B2B trade networks. We ensure high-performance manufacturing backed by optimized trade logistics:
- Highly Nestable Shipping Geometry: Thanks to their precision tapered cone structure, our filter baskets nest seamlessly within one another for batch shipments. This smart volumetric nesting reduces international ocean freight volume footprint (CBM) by up to 60%, drastically minimizing import customs transport costs.
- Rigorous Impact Weld Verification: Every batch leaves our automated welding lines backed by certified shear test sheets, proving that the cross support ribs and top collar bonds can easily withstand high vertical gravity water drops without fatiguing.
- Streamlined Port Clearance Documents: Fast-track maritime container logistics providing complete documentation folders including official material test certificates (MTR), CE compliance records, and factory origin statements.
Frequently Asked Questions (FAQ)
A1: Flat or square bottom buckets cause rushing water to bounce straight backward, creating immediate turbulence and blinding the bottom mesh with silt layers. A tapered cone allows incoming gravity streams to glide downward, shifting organic leaves to the bottom vortex while keeping the angled sidewalls free for clean, continuous water flow.
A2: No. Our filtration mesh utilizes an ultra-fine wire weave profile designed to maximize the net open surface area. By combining this high open-area rating with the massive vertical surface area of the elongated cone geometry, the basket handles peak storm inflows easily without creating pipe backpressure.
A3: Unlike delicate nylon bag filters that tear or deteriorate from coarse gravel abrasion, our baskets are crafted from cold-drawn austenitic stainless steel wire. They offer exceptional surface hardness and puncture resistance, making them completely immune to sand erosion or heavy stone impact.
A4: Absolutely. We work extensively as a premium OEM/ODM manufacturing partner for leading global drainage equipment brands. We can easily modify the outer collar diameters, adjust cone depths, integrate extended chain loops for deep wells, or laser-weld your private brand tags directly onto the steel rim.
Get Custom Rainwater Filter Basket Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
