Stainless Steel Rainwater Filter Slider Mesh & Grate Panels
Achieving successful sediment separation in modern rainwater harvesting grids requires hardware capable of handling immense storm volume velocities while remaining resilient against physical blockages. Our premier Rainwater Filter Slider Mesh (also commonly classified as a leaf slider panel or filter grate cartridge) provides a highly advanced physical zoning solution within global sustainable drainage frameworks. Fabricated from industrial-grade SUS304 or marine-grade SUS316 stainless steel, this heavy-duty dual-layer screen assembly seamlessly drops inside downspout interceptors or underground filtration chambers, maximizing downstream water clarity before fluid enters clean holding vaults.
Strategic Engineering Benefits of Dual-Layer Slider Grates
- Integrated Debris Deflecting Bars: The heavy-gauge upper metal grates act as a physical slide, directing twigs, pine needles, and heavy moss outward into organic waste areas.
- High-Speed Micronic Under-Screen: Positioned directly below the bars, a uniform micronic mesh layer stops fine roof dust and organic matter down to sub-1mm without creating hydraulic bottlenecks.

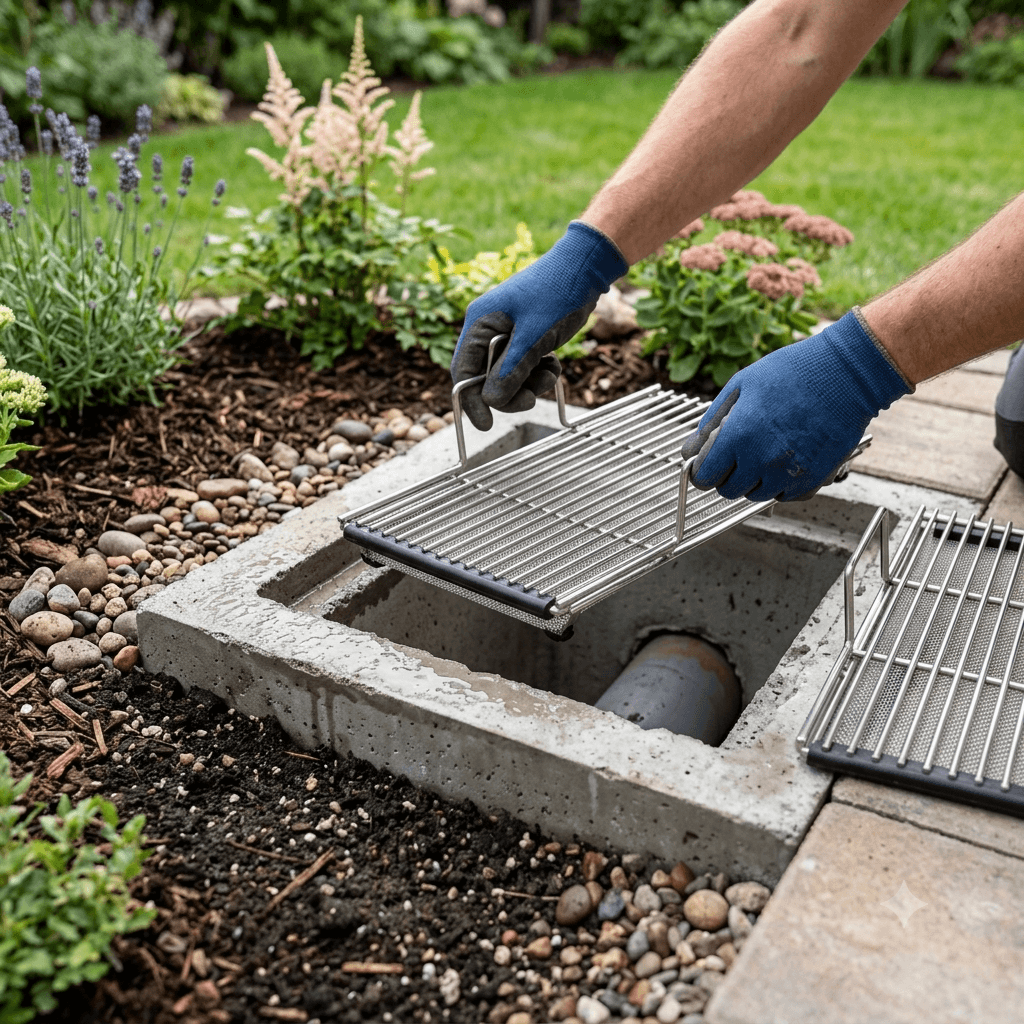

- Tool-Free Pull Lifting Handles: Reinforced welded wire loop handles allow homeowners or commercial field engineers to quickly pull out the panel for periodic cleaning.
- Acid-Rain and UV Immunity: Pure non-recycled alloy matrix prevents localized rust pitting from stagnant moist organic leaf rot, matching strict UK SuDS regulations and US building code metrics.
Targeted Placement in Advanced Drainage Infrastructure
Standard flat or lightweight mesh screen cloth elements easily rupture or bend outward when slapped by continuous rapid downspout runoff. As an established global B2B factory supplier, we engineer our handled grid sliding cassettes to offer permanent structural integrity across major water filtration assemblies:

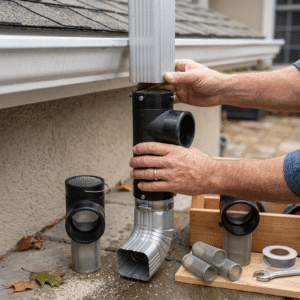

- Residential Gutter Downspout Filters: Acts as the slanted sliding filtration insert inside external home piping, letting stormwater drain seamlessly into garden rain tanks while shedding tree debris onto the ground.
- Inline Rainwater Filtration Shafts: Functions as the heavy pre-screening slider panel inside underground modular distribution boxes, safeguarding sensitive downstream ultra-fine cloth filters from getting torn by sharp sticks.
- Commercial Stormwater Attenuation Networks: Placed inside massive retention cistern inlets to trap sediment particles during extreme flash floods, keeping water tank accessories working cleanly.
Technical Specifications & Structural Dimensions
| Technical Parameter | Standard Export Specification | Custom Available Engineering Range |
|---|---|---|
| Structural Type | Dual-Layer Composite Grid (Heavy Bar Grates + Fine Mesh Support) | Single heavy mesh layer / Multi-stage stepped filter grids |
| Material Selection Grade | AISI 304 Austenitic Stainless Steel | AISI 316 / 316L Marine Grade Steel for industrial chemical lines |
| Grate Bar Thickness & Spacing | 3.0 mm Bar Diameter with 12 mm clear spacing interval | 2.0 mm to 5.0 mm wire bars with adjustable spacing metrics |
| Under-Mesh Aperture Rating | 0.75 mm Fine Opening Weave (Compliant with eco codes) | 0.40 mm to 1.50 mm customized micronic grid nets |
| Handle Ergonomics | Welded Dual-Loop Rigid Steel Handle (Center Mounted) | Flush-mount fold-down handles / Side-sliding latch flanges |
| Dimension Scaling (WxL) | Standard 300mm x 500mm Rectangular Profile | Fully customized widths up to 1200mm for municipal vaults |
Global B2B Supply Chain & Freight Packing Standards
Operating as an elite global manufacturer specializing in stormwater management hardware, we understand that supply chain stability, high-burst packaging structural integrity, and clear technical compliance are necessary to European and American B2B trade channels. We ensure that our filter slider panel shipments arrive on time and intact:
- Custom Molded Cradle Packaging: To prevent the protruding lifting handles from puncturing adjacent cartons during rugged international ocean transit, every slider panel batch is stacked on heavy wooden pallets utilizing custom anti-crush foam slot rings, then tightly shrink-wrapped to lock out moisture.
- Rigorous Structural Weld Testing: Every batch leaves our factory backed by verified welding tensile strength reports, proving that the central handles and grate bar bonds can withstand repeated field pulling force without detaching.
- Flexible Freight Management: Comprehensive global logistics support covering Full Container Loads (FCL) or Less-than-Container Loads (LCL) consolidated shipping routes direct to main distribution terminals across Rotterdam, Felixstowe, and Long Beach.
Frequently Asked Questions (FAQ)
A1: A single-mesh sheet quickly bends or tears when hit by continuous torrents of rushing rainwater mixed with heavy organic branches. Our dual-layer slider utilizes thick upper steel grate bars to handle the heavy impact and slide away larger leaves first. This prevents premature wear on the fine under-mesh, which safely captures smaller particles underneath.
A2:Because the top grates are engineered with a specific slant to promote self-cleaning by naturally washing leaves outward, maintenance is minimal. For standard residential setups, pulling the handle out for a quick hose rinse is typically recommended once every quarter or right after heavy autumn leaf shedding events.
A3: Absolutely not. We exclusively utilize non-recycled, premium austenitic SUS304 or marine-grade SUS316 stainless steel. These alloys are entirely inert, food-safe, and do not leach heavy metals or trace chemicals into your stormwater collection, ensuring compliance with global environmental health drainage codes.
A4: Yes, we provide extensive custom OEM/ODM tooling services. We can customize the outer width and length to perfectly drop into your proprietary injection-molded downspout filters, stamp your brand trademark onto the side framing rails, or adjust handle dimensions to match your technical blueprints.
