Precision Stainless Steel Wedge Wire Screen Panels & Slot Grates

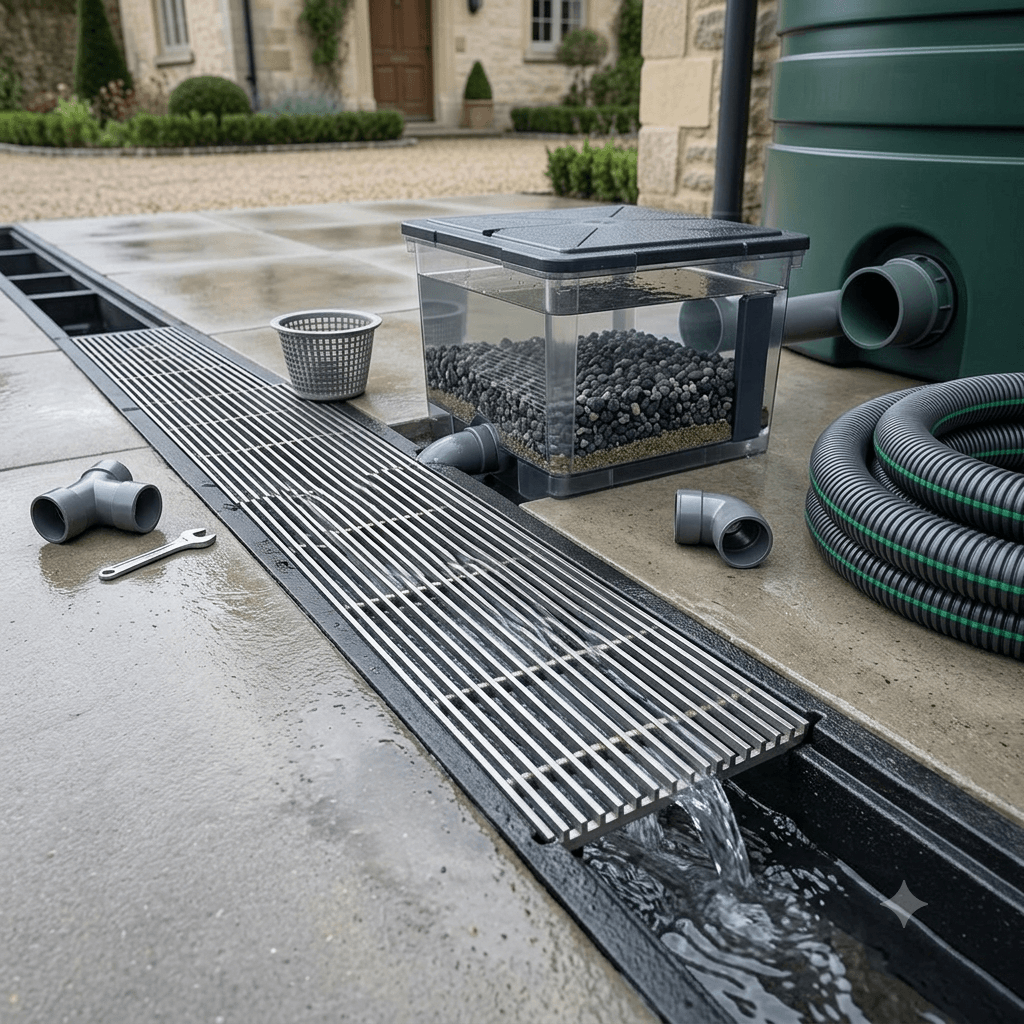

Engineered for excellence under the most demanding municipal and industrial environments, our Stainless Steel Wedge Wire Screen Panel sets the benchmark for high-capacity liquid clarification. By utilizing advanced profile wire fusion welding, each flat panel exhibits perfect slot uniformity down to the micron scale. Whether utilized as heavy-duty drainage channel grates, screen bends for static dewatering, or internal components within massive rainwater retention wells, these panels outlast and outperform traditional media alternatives.
Unmatched Advantages of Our V-Wire Screen Technology
- Self-Cleaning Geometry: The sharp V-profile creates a two-point contact line. Particles smaller than the slot pass instantly, preventing wedging or blinding.
- Superior Mechanical Strength: Multi-point fusion welding bonds every wire-to-rod intersection, providing an incredibly tough, vibration-proof construction.
- Highly Customizable Slot Size: Slot gaps can be fine-tuned starting from 0.1mm up to larger openings to target precise solid grain sizes.
- Perfect Surface Planarity: Advanced tension leveling ensures the filtration surface remains perfectly flat, making it ideal for scraper blades or linear trench grates.
Technical Specifications & Profile Wire Dimensions
| Technical Parameters | Standard Engineering Spec | B2B Custom Range |
|---|---|---|
| Available Alloys | Grade 304 Stainless Steel | Grade 316, 316L, Super Duplex Steel |
| Slot Width (Gap) | 1.0 mm / 2.0 mm | 从 0.1 mm 到 10.0 mm 均可定制 |
| Profile Wire Size (V-wire) | 2.2mm x 3.0mm (Width x Height) | 1.5×2.5mm, 2.5×4.0mm, 3x5mm, etc. |
| Support Rod Options | 3.0mm x 5.0mm Flat Bar Support | Round rods, heavy rectangular bars, or framing flanges |
| Panel Dimensions | Width: 500mm / Length: 1000mm | Up to 3000mm x 3000mm monolithic panels |
| Border Frame / Edging | Raw edge or Welded Side Plates | Angle iron frame, flat bar bounding, or customized lugs |
Global B2B Logistics Security & Custom Fabrications
Due to the critical role of slot parallelism in fluid mechanics, avoiding structural skewing or impact bending during international sea transit is paramount. We pack our Wedge Wire Screen Panels by wrapping them in multi-layered protective plastic films, layering them with dense shock-absorbing foam boards, and strapping them securely to reinforced wooden pallets. The entire bundle is then secured within heavy-duty export plywood crates.
We take pride in our robust factory-direct production capacity, accommodating large municipal infrastructure orders with strict time schedules. For custom architectural trench systems or water treatment retrofits, our engineering division can review your technical prints or CAD datasets to ensure seamless edge-framing and bolt-hole configurations. Standard samples can be expedited globally via top express carriers, and flexible commercial shipping arrangements like FOB, CIF, or DDP are fully integrated into our service model.
Frequently Asked Questions (FAQ)
Q1: Why are wedge wire screen panels completely clog-resistant compared to perforated panels?
A: Perforated plates have parallel hole walls, allowing near-sized debris to frictionally stick inside the hole, blinding the screen. Wedge wire uses a unique triangular cross-section wire. The surface slot is the narrowest point; once a particle squeezes through the initial surface gap, it encounters a rapidly expanding space underneath, falling away freely with the liquid flow.
Q2: Can these flat screen panels handle heavy commercial load conditions like vehicles or light trucks?
A: Yes. The load-bearing capacity of a wedge wire grid depends on the profile wire height and the density/pitch of the underlying support rods. By choosing thickened support bars and short support intervals, we can fabricate wedge wire panels that meet standard load classes, making them robust enough to be used as plaza trench drain covers or airport terminal run-off grates.
Q3: How does the profile wire orientation affect the filtering efficiency in a rainwater system?
A: The orientation is crucial. If the V-wires run perpendicular to the water flow direction, they act as an aggressive shear barrier, catching maximum water while skimming off leaves and debris over the top. If the wires run parallel to the flow, they reduce hydraulic turbulence and optimize linear flow capacity. Our engineers will configure the screen structure to fit your exact flow mechanics.
Q4: What custom options do you offer for attaching these screens to industrial frames?
A: We provide versatile structural edge bounding. We can weld heavy angle-iron profiles around the perimeter for easy drop-in mounting, add pre-punched flat side flanges for bolting down, or supply completely raw mesh panels if you intend to weld them directly into your existing processing machinery or drainage basins.
