High-Durability Stainless Steel Screening Baskets for Inspection Chambers

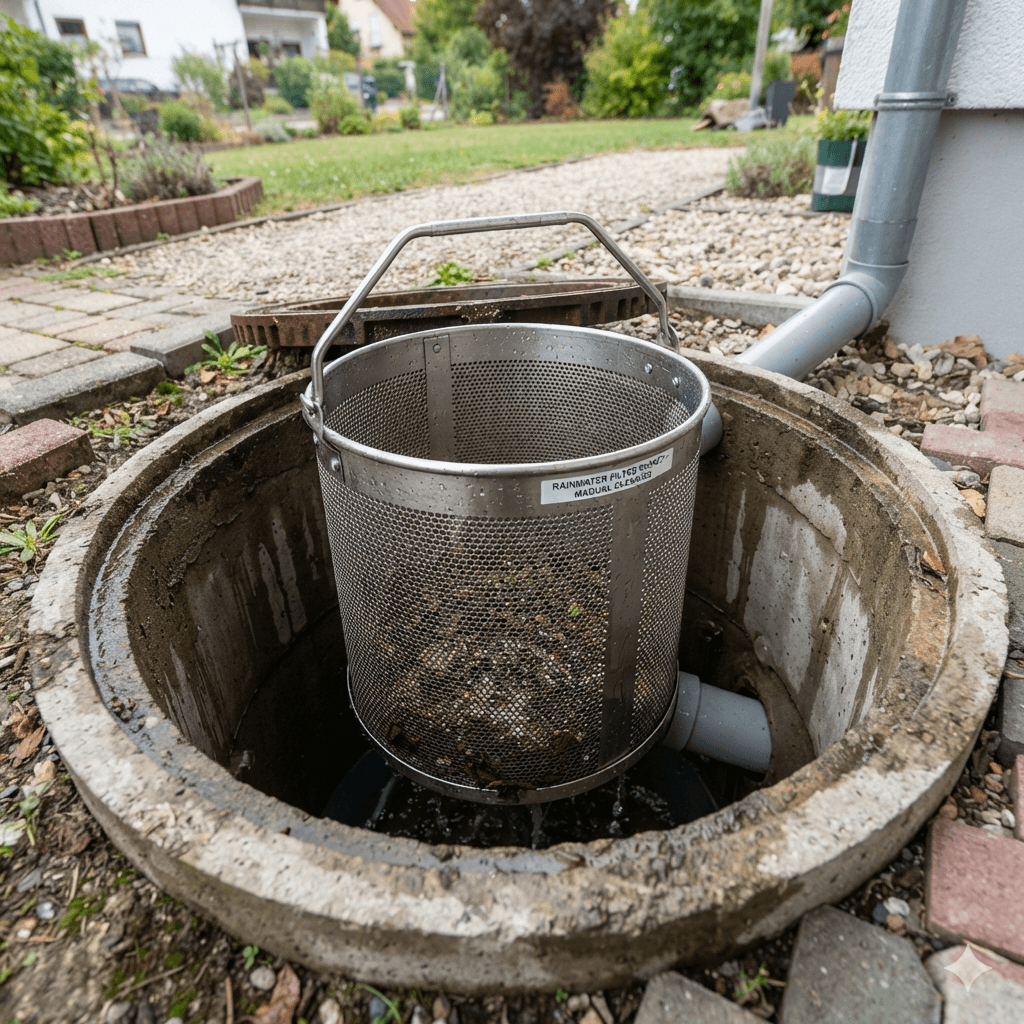

The industrial-grade Screening Basket (also known as a catch basin insert or manhole filter basket) acts as the decentralized first line of defense in modern storm-water infrastructure. Unlike fragile fabric screen sacks or plastic nets that rapidly tear under high water pressure or rot in damp subterranean vaults, our rigid stainless steel baskets offer unparalleled durability. Installed right below the manhole grate, they channel incoming surface runoff through a high-precision perforated metal grid, ensuring optimal solid capture with zero bypass leakage.
Core Advantages of Our Decentralized Filter Baskets
Manufactured using precision-welded SUS304 or Marine Grade 316 stainless steel. It actively resists degradation caused by aggressive de-icing salts, hydrocarbons, fertilizers, and acidic rainwater runoff commonly washed off highway networks.
To prevent surface localized flooding during extreme weather anomalies, each basket can be customized with integrated high-level bypass slots. If the basket is completely full of debris, extreme storm surges bypass safely into the drainage line, maintaining urban safety.
We manufacture to fit your precise civil engineering blueprints. Baskets can be configured with specialized integrated sediment traps to collect heavy grit sand, or custom internal framing hooks to hold oil-absorbent pillows for parking lot runoffs.
Widespread Application Across Global B2B Projects
Our heavy-duty industrial screening baskets are meticulously optimized for demanding performance in a variety of sectors:
- Commercial Parking Lot Inlets: Removing urban litter, cigarette butts, and oil-slicked debris right at the surface grate entry point.
- Rainwater Harvesting Headworks: Cost-effective coarse screening safeguarding downstream geo-cellular plastic attenuation tanks.
- Industrial Plant Outfalls: Safety barrier intercepts to block plastic pellets, wood chips, and factory floorspace packaging loss from municipal discharge.
- Highway Drainage Vaults: Fast manual-clean modules lining logistics corridors to trap asphalt grits and roadside organic mass.
Technical Specifications & Sizing Grid
| Model Code | Top Diameter / Dimensions (mm) | Basket Depth (mm) | Standard Perforation (mm) | Dry Weight Load Cap (kg) | Lifting Interface |
|---|---|---|---|---|---|
| STB-300P | Ø 300 | 400 | 2.0 / 3.0 / 5.0 | 40 | Dual Fixed Handles |
| STB-500P | Ø 500 | 500 | 3.0 / 5.0 / 8.0 | 75 | Heavy Fold-Down Grips |
| STB-600R | 600 x 600 (Square) | 600 | 5.0 / 10.0 | 100 | Triple Chain Bridle Ready |
| STB-800Max | Ø 800 / Custom Size | 700 | Custom Slot Mesh | 150 | Reinforced Lift Eyes |
B2B Batch Export Logistics & Palletized Packing Optimization
As a seasoned B2B manufacturing vendor partner, we specialize in bulk global distribution networks, ensuring high efficiency from factory floor to international port:
- Optimized Nestable Packaging: Specially designed taper tap angles allow physical units to nest seamlessly inside one another, cutting container shipping volume allocations by up to 50%.
- Acid Pickling & Passivation Treatments: Every welded stainless screen undergoes total immersion chemical passivation, removing carbon heat tints to maximize atmospheric life.
- Palletized Protection: Delivered on sturdy ISPM-15 export plywood pallets secured with heavy-gauge PET banding straps and puncture-resistant stretch wrap barriers.
Frequently Asked Questions (FAQ)
A1: For general municipal roadside catch basins, a 3mm to 5mm round perforation is considered the industry sweet spot. It provides an optimal balance, letting high-volume rainwater flow through rapidly while effectively intercepting more than 90% of structural organic debris like maple leaves and grass clippings.
A2: For deep inspection wells, we can weld specialized auxiliary extension bars or supply custom-length 316 stainless steel lifting chains. This allows the highway maintenance crews to pull the basket directly out of the chamber vault using standard service crane hooks or manual pull bars without entering confined underground spaces.
A3: Yes. Unlike light alternative wire mesh liners, our baskets are formed from thick 2.0mm to 3.0mm solid stainless steel sheets, backed by welded support rings on the outer frame. They handle constant scouring from gravel, concrete particles, and sand without deformation.
A4: Absolutely. Over 70% of our B2B export orders are tailored to site-specific infrastructure layouts. You can send us your architectural vault dimensions or raw vector CAD files, and our engineers will supply accurate step-by-step assembly drawings for your approval before bulk production begins.
Get Custom Screening Basket Technical Layouts & Factory Estimates
Are you a developer, civil engineering contractor, or a drainage hardware distributor bidding on a commercial rainwater retention scheme or municipal sponge city update? Share your target manhole inner diameters, required clearance depths, and volume quantities with us. Our technical support office will supply direct factory FOB/CIF pricing estimates and structural design drafts within 24 hours.
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
