Custom Rainwater Filter Insert with Dual-Layer Stainless Steel Mesh
The innovative custom rainwater filter insert sets a commercial standard for decentralized rainwater pre-treatment. Positioned inside inline downspout boxes, storm catch basins, or directly beneath the inspection lid of a home rain harvesting system, this heavy-armor basket locks out organic impurities at the point of entry. Utilizing an advanced dual-barrier technology, the outer perforated metal sheet absorbs high-velocity hydraulic impacts and retains solid geometric shape, allowing the integrated fine micro-mesh inner layer to execute precise debris filter separation down to the micron level without suffering mechanical stress fractures.
Technical Strengths of Our Dual-Layer Stormwater Strainers / Rainwater Filter Insert
As shown in our production models, the heavy metal outer core provides unyielding resistance to heavy loads of wet mud, gravel, and shingle grit. The inner woven mesh sleeve captures microscopic atmospheric dust and decaying plant fibers, ensuring ultra-clean water clarity.
The top of the filter bucket features a smooth, beautifully polished flared flange rim. This geometric collar permits an instantaneous, tool-free drop-in fit onto storage tank openings or concrete pipe sleeves, suspending securely with zero bypass risk.
Global B2B procurement agents face severe limitations regarding zinc coating degradation or plastic chemical outgassing in subsurface assets. Our certified food-grade SUS304 and marine-grade SUS316 layouts are completely inert and anti-pitting, matching the highest green building mandates.
Strategic Integration Across B2B Green Water Networks
Our heavy-duty industrial custom rainwater filter insert solutions are meticulously optimized to serve as an OEM hardware anchor for numerous applications:
- Inline Gutter Downspout Filter Boxes: Serving as the premium replacement core insert inside high-end wall-mounted rainwater diverters.
- Underground Cistern Neck Openings: Suspended beneath inspection covers of residential fiberglass or PE storage tanks to capture fine shingles particles.
- Eco-Friendly Green Building Infrastructure: Highly demanded in modern sustainable urban villages, LEED-certified architectural resorts, and off-grid modular cabins.
- Backyard Pump & Sprinkler Guarding: Acting as a coarse sand and moss filter to safeguard fine lawn drip irrigation spray heads from frequent clogging.
Technical Matrix & Fully Custom Engineering Options
| Custom Model Code | Top Flange OD (mm) | Basket Body Diameter (mm) | Total Depth (mm) | Outer Perforation / Inner Mesh | Hydraulic Open Area Ratio |
|---|---|---|---|---|---|
| RFI-DL300 (Compact) | 350 | 300 | 300 | Ø 3mm / 40 Mesh (0.42mm) | > 60% High Flow |
| RFI-DL400 (Standard) | 460 | 400 | 400 | Ø 4mm / 60 Mesh (0.25mm) | > 58% High Flow |
| RFI-DL500 (Pro Sump) | 560 | 500 | 450 | Ø 5mm / 80 Mesh (0.18mm) | > 55% Optimized |
| RFI-BlueprintX | Per CAD Request | Tailor Made | Tailor Made | Multi-Stage Custom Combination | Fully Tailored |
B2B Supply Chain Packaging Optimization & Global Wholesaling
As an expert manufacturing vendor focusing on large-scale international commercial hardware contracts, we optimize logistical execution for maximum profitability:
- Nestable Stacking Configuration: Engineered with a specialized smooth draft taper, allowing multiple inserts to nest ultra-tightly together. This drives down container space wastage, cutting your overseas sea freight costs significantly.
- Strict Compliance Documentation: All production batches ship with comprehensive Mill Test Reports (MTR) verifying exact nickel/chromium ratios, alongside welding trace profiles required for governmental environmental tenders.
- Fumigation-Free Palletization: Bound securely on heavy plywood pallets lined with scratch-resistant foam layers, wrapped tightly in waterproof commercial stretch barriers.
Frequently Asked Questions (FAQ)
A1: Simple wire mesh lacks structural strength; when full of heavy autumn foliage or gravel silt under a massive rain surge, it easily expands, warps, or tears at the seams. Our dual-layer construction uses a heavy perforated sheet skeleton as a shield to lock the geometry permanently, ensuring the inner fine woven screen operates completely stress-free for a decade-plus lifespan.
A2: Yes, absolutely. Over 70% of our wholesale volume is contracted as an OEM supplier for international rotomolded and fiberglass tank companies. You can send us your raw DWG/CAD blueprints or specify the tank neck diameter limits, and our CNC laser cell will cut a perfectly matched seating flange lip to ensure a flush, seamless drop-in fit.

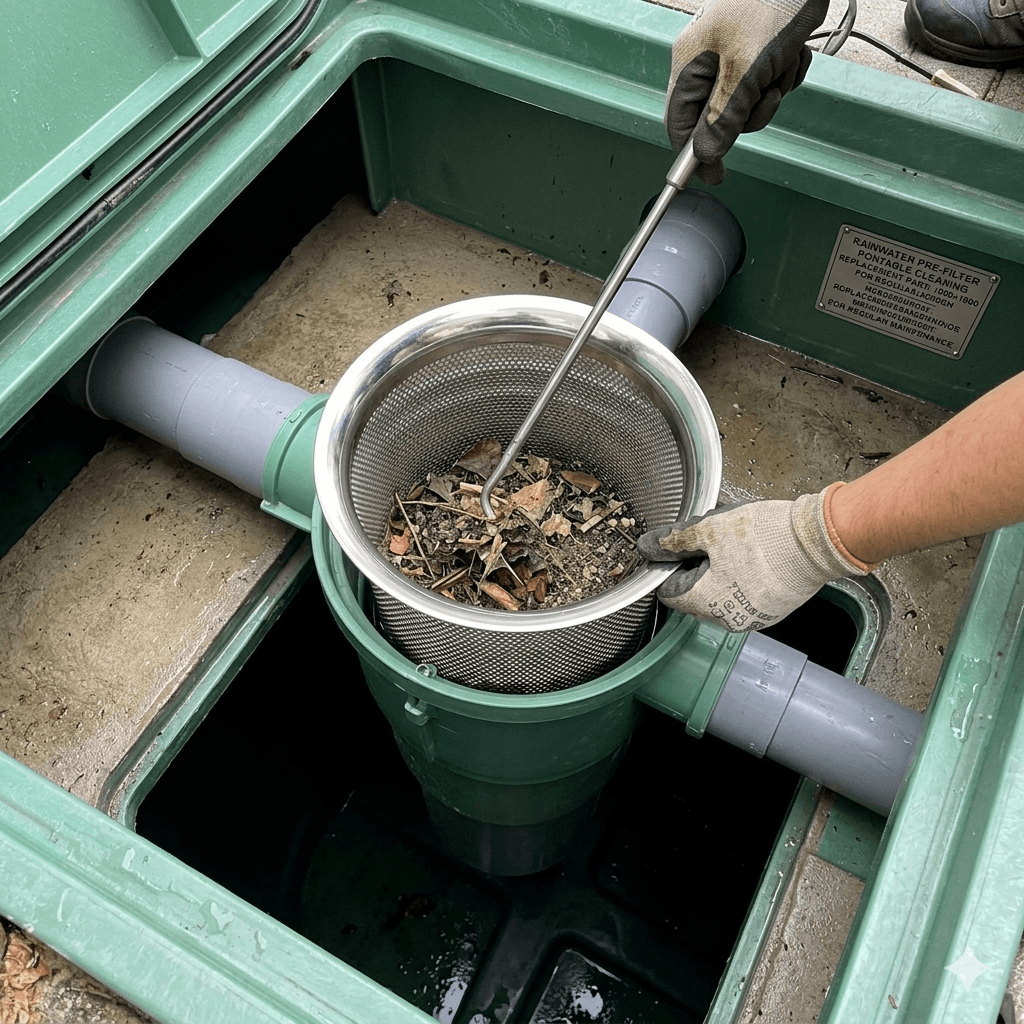

A3: Cleaning is fully manual and tool-free. Thanks to the electro-polished smooth surfaces generated by our post-processing line, debris cannot easily adhere. Service crews simply lift the unit out by its wide collar rim or an optional welded wire handle, invert it to dump the solid waste cake, and quick-rinse it using a low-pressure garden hose for less than 60 seconds.
A4: For dimensions that match our standard internal molding dies, our wholesale inventory MOQ is highly adaptable to support initial trial runs. For custom structural cross-sections or unique dual-stage pore diameter combinations requiring completely new welding jigs, our commercial production line typically initiates at 100 to 200 units per batch.
Get Custom Rainwater Filter Insert Technical Layouts & Factory Estimates
Are you an international green housing developer, a drainage hardware wholesale merchant, or an OEM rotomolding water tank factory engineer putting together a high-volume municipal rainwater harvesting tender? Send over your required top flange outer diameters, filter depth targets, mesh micron demands, and annual projection quantities today. Our industrial sales branch will deliver detailed structural vector layouts and highly competitive factory direct quote matrices within 24 hours.
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
