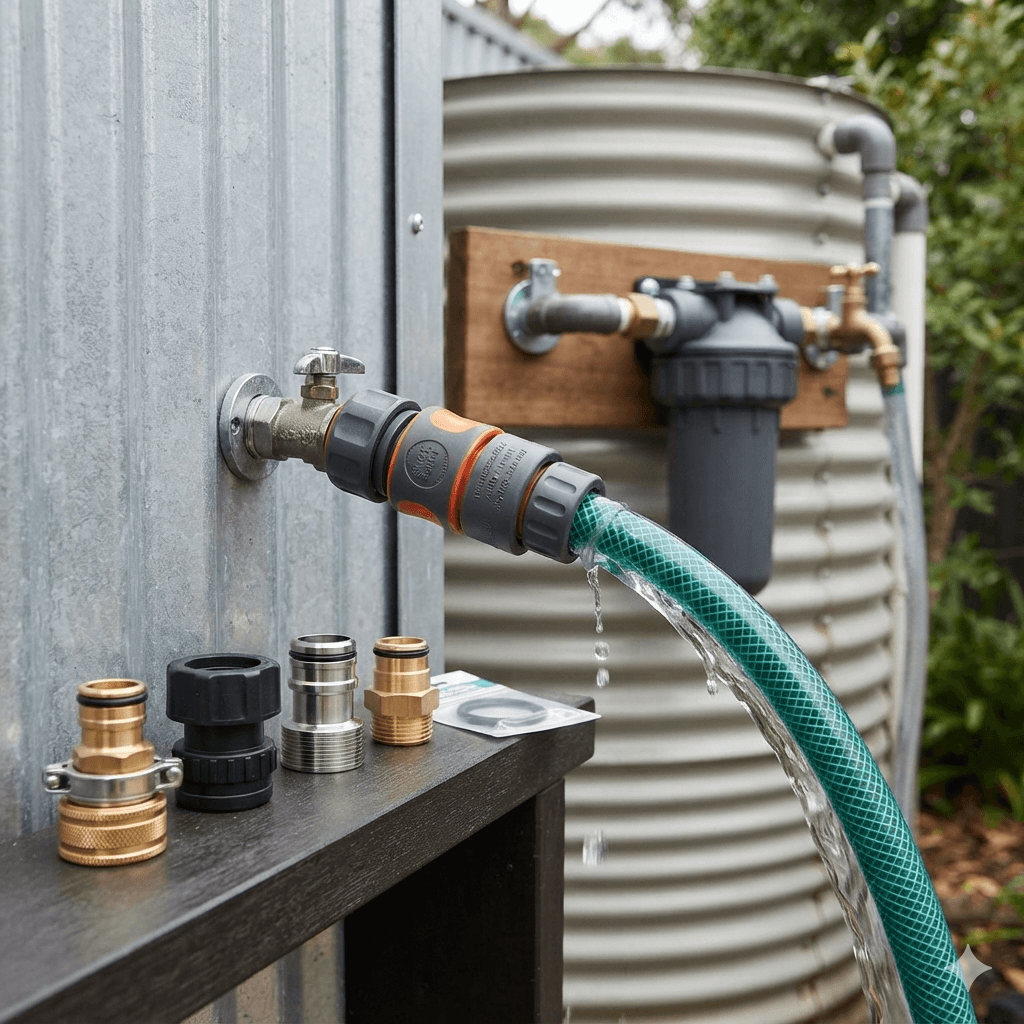

Heavy-Duty Snap-On Hose Fitting for Professional Rainwater Systems
In modern rainwater harvesting and ecological filtration architecture, pipeline transmission efficiency determines the stability of the entire ecosystem. Our premium Snap-On Hose Fitting is purposefully designed to bridge the gap between rainwater gullies, filtration diverters, sedimentation tanks, and final agricultural or landscape irrigation lines. By eliminating obsolete threaded locking or cumbersome metal clamps, this commercial-grade quick coupling maximizes fluid dynamics while cutting engineering installation times by over 70%.
Key Advantages in Rainwater Infrastructure
- Instant Snap-Lock Mechanism: Allows operators to perform line switching, filter cleaning, or reservoir bypass routines within seconds without any specialized mechanical tools.
- Dual O-Ring Sediment Defense: Engineered with premium EPDM gaskets that resist fine grit, sand particles, and organic debris common in raw storm runoff, maintaining a 100% leak-proof rating under continuous hydraulic load.
- All-Weather Climate Tolerance: Built to endure harsh outdoor exposure, providing exceptional resistance against UV radiation, acid rain degradation, and extreme seasonal freezing cycles.
Versatile Engineering Applications
Whether deploying urban residential rain gardens or macro-scale industrial stormwater storage yards, fluid routing security is critical. This snap-on connector handles multiple heavy-duty roles seamlessly:
- Rainwater Filtration Units: Links vortex fine filters to main drainage downspouts, facilitating quick removals for mesh purging.
- Storage Tank Cascades: Safely cross-connects multiple polyethylene or fiberglass water cisterns to equalize liquid levels during storm surges.
- Downstream Irrigation Outlets: Instantly adapts heavy discharge pumps to agricultural sprinkler layouts or drip networks without line drops.
Technical Specifications & Dimensions
| Parameter Specification | Metric Value | Imperial Standard |
|---|---|---|
| Available Nominal Diameters | DN15, DN20, DN25, DN32, DN40, DN50 | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ |
| Maximum Working Pressure | 1.6 MPa | 232 PSI |
| Gasket Material Grade | High-Density EPDM Weather-Resistant Compound | |
| Connection Profile | Euro-Standard Snap Groove / Quick Push-In Interface | |
| Threading Options | BSP Parallel Threads | NPT Tapered Threads Standard |
| Corrosion Resistance Rating | Salt Spray Test ASTM B117 Approved (Over 480 Hours) | |
Global Supply Chain & Logistics Capabilities
As an established B2B manufacturer exporting to Europe and North America, we guarantee highly optimized cargo handling. Every consignment of Snap-On Hose Fittings undergoes rigorous moisture-proof vacuum batch bagging before loading into robust maritime-certified corrugated outer cartons. Our deep partnerships with major container hubs ensure flexible shipping selections, including expedited FOB ocean routing, door-to-door DDP transit, or urgent airfreight dispatch for ongoing infrastructure developments. Wholesale customized branding, private white-label laser etching, and custom retail sorting kits are available upon contractual request.
Frequently Asked Questions (FAQ)
Q1: How does the snap-on fitting perform when rainwater contains fine silt or sand particles?
A1: Our fitting incorporates an advanced debris-rejection groove behind the primary sealing zone. When the adapter snaps in, the integrated wiper profile pushes residual particles outward, ensuring the double EPDM O-rings sit flush against the sealing surface to prevent micro-leaks caused by sediment abrasion.
Q2: Will outdoor acidic rainwater runoff degrade the fitting or cause heavy-metal leaching?
A2: Absolutely not. The metallic variants utilize low-lead, high-tensile dezincification-resistant (DZR) brass alloys, while our polymer lines use virgin, UV-stabilized polypropylene. Both materials are fully certified under global environmental criteria to resist acidic rain chemistry and ensure zero secondary water pollution.
Q3: Can these connections withstand freezing winter temperatures when lines cannot be drained?
A3: Yes. The elastomeric EPDM seals are tested down to -20°C, maintaining their flexibility and structural memory. While we advise draining municipal or residential piping during deep ground freezes to avoid ice expansion ruptures, the internal locking jaws will not fracture under normal frozen-water pressures.
Q4: Are your snap-on patterns cross-compatible with standard European or American quick couplings?
A4: Yes, our dimensions are fully synchronized with standard international quick-connect geometries. The male profile inserts match common industrial patterns seamlessly, ensuring hassle-free drop-in replacement across pre-existing third-party rainwater filtration networks globally.
Get Custom Snap-On Hose Fitting Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
