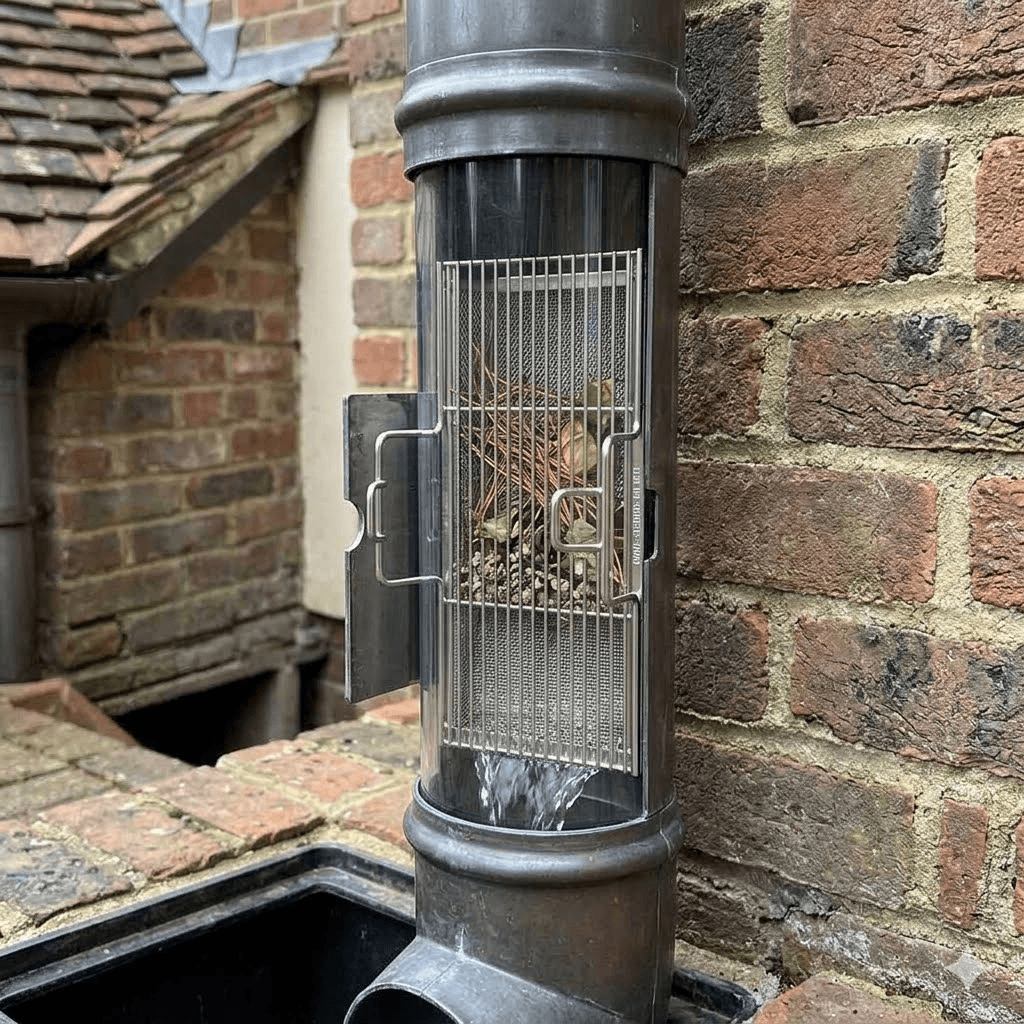

Custom Stainless Steel Filter Sieve for Downspouts & Residential Rainwater Collection
The specialized custom stainless steel filter sieve stands at the forefront of sustainable urban hydrology components. Embedded directly inside high-volume gutter downspouts or integrated as a pre-filter within a home rain harvesting system, this robust component blocks raw pollutants at the primary contact stage. Fabricated via heavy-gauge industrial laser-cutting and precision TIG welding, our downspout debris filter ensures that incoming surface water is physically stripped of abrasive asphalt grains and organic plant fragments, shielding downstream storage cells from biological slime build-ups.
Strategic Selling Points for International Procurement Agents
Our dual-stage filtration layout features an outer perforated stainless steel skeleton that handles heavy hydrodynamic storm surges, lined with a fine woven stainless micro-mesh. This configuration traps over 95% of fine grit particles while maintaining excellent hydraulic drop coefficients.
Different regions utilize highly distinct plumbing and gutter standards (e.g., European square downspouts vs. American corrugated rectangular pipes). We eliminate installation headaches by manufacturing each batch fully customized to your precise cross-sectional dimension and flange specs.
Modern Western residential builds place severe restrictions on chemical leaching into garden soils. Our certified Grade 304 or 316 Stainless Steel sieves are fully inert, toxic-free, and 100% recyclable, assisting project developers in meeting strict eco-building rating points.
Diverse B2B System Integrations & Applications
Our heavy-duty industrial custom filtration sieves are meticulously optimized for demanding performance in a variety of sectors:
- Inline Gutter Downspout Boxes: Providing a rugged downspout debris filter core insert that snaps easily into localized municipal wall-mounted rain diversion housings.
- Underground Cistern Intakes: Acting as a high-flow horizontal or vertical sieve shielding the intake pipe entries of residential underground polymer water storage vaults.
- Commercial Green Building Upgrades: Highly utilized in modern low-impact development (LID) eco-resorts, smart urban villages, and green-certified modular housing lines.
- Agricultural Outbuilding Catchments: Heavy-duty initial pre-filtration for large steel water barn tanks used in greenhouse farming and equestrian facilities.
Technical Matrix & Custom Sizing Options
| Custom Series SKU | Target Downspout Shape | Standard Mesh / Aperture | Available Material Grades | Open Area Flow Ratio | Flange Mounting Mechanism |
|---|---|---|---|---|---|
| CSS-R100 (Round) | Cylindrical (Ø 80mm – 150mm) | 40 Mesh (0.42mm) Fine | SUS 304 / SUS 316 | > 62% High Flow | Top Seating Drop-in Lip |
| CSS-S200 (Square) | Square (100mm x 100mm etc.) | 20 Mesh (0.84mm) Medium | SUS 304 / SUS 316 | > 68% High Flow | Side-Sliding Channel Tabs |
| CSS-K300 (K-Style) | Rectangular (2×3″ / 3×4″ US Std) | 60 Mesh (0.25mm) Ultra-Fine | Marine Grade SUS 316L | > 58% Optimized | Snap-Lock Elastic Edge |
| CSS-BlueprintX | Custom / Per OEM Layouts | Perforated Sheet + Mesh Blend | Fully Tailor Made | Fully Tailored | Integrated Bolt Holes |
B2B Supply Chain Packaging Optimization & Global OEM Support
As a seasoned manufacturing exporter focusing on commercial hardware partnerships, we manage every layer of logistics for efficient global delivery:
- Anti-Deformation Interlocking Packing: Every custom filter sieve is layered with a scratch-resistant protective film and wrapped within interlocking structural cardboard sleeves to eliminate sea-freight crushing or mesh tearing.
- Verified Engineering Documentation: Batch orders include official Mill Test Reports (MTR), material heat numbers, and precise dimensional verification documents required for municipal environmental tenders.
- Palletized Batch Dispatch: Grouped into ISPM-15 export-compliant non-fumigation wooden pallet box setups wrapped tightly in thick waterproof stretch barrier materials.
Frequently Asked Questions (FAQ)
A1: It depends on your primary target and end-use application. If you are filtering raw rainwater mainly for lawn irrigation or underground infiltration cells, 20 mesh (0.84mm) is ideal as it captures all leaves while requiring very rare manual cleaning. If you are protecting fine spray heads or targeting pre-potable filtration setups, a 60 mesh (0.25mm) debris filter is recommended to intercept asphalt granules and fine shingle dust.
A2: Absolutely. Over 80% of our production volume operates as an OEM contract supply chain for major drainage brands across North America and Europe. You can send us the dimensions or standard product codes of your existing filtration boxes, and we will laser-cut matching seating collars to guarantee a seamless drop-in fit.
A3: When engineering these filters for downspout debris filter enclosures, we position the sieve screen at an optimized angle (typically 45° to 60°). This layout leverages gravity and structural water kinetic energy, allowing rushing rainwater to push leaves down toward an external discharge slot, establishing a smart passive self-cleaning effect.
A4: For configurations matching our existing digital laser stamping tooling setups, the batch MOQ is highly flexible. For entirely new shapes or highly specific non-standard mesh specifications that require bespoke welding jig setups, our B2B commercial production run typically begins at 200 to 500 pieces per batch.
Get Custom Stainless Steel Filter Sieve Technical Layouts & Factory Estimates
Get Custom Engineering Layout Verification & Direct Factory Batch Quotes
Are you a green building material supplier, an e-commerce brand owner in the home improvement niche, or a rainwater engineering consultant assembling a high-volume housing tender? Share your custom downspout measurements, mesh specifications, and targeted annual volume requirements with us. Our factory design cell will provide accurate vector structural drafts and highly competitive B2B factory pricing within 24 hours.
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
