Stainless Steel Round Duct Joiner for Stormwater & Rainwater Infrastructure
Precision Engineering for Seamless Pipe Connections

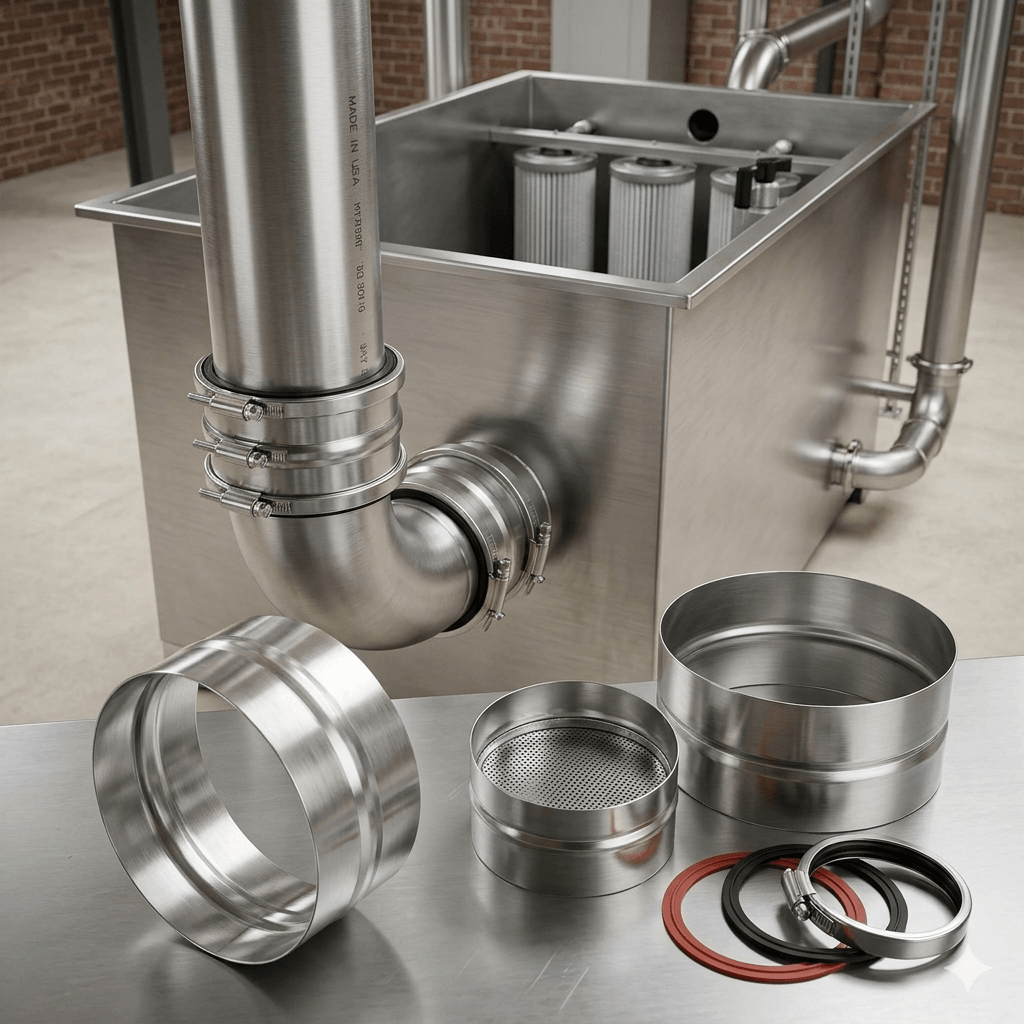

When constructing long-run stormwater distribution conduits or linking multi-stage filtration vessels, maintaining a reliable, linear connection is crucial. Our stainless steel circular duct joiners eliminate the alignment difficulties associated with raw butt-welding. By slipping internally into mating pipes, these sleeves secure structural continuity, minimize fluid turbulence, and are ideally suited for infrastructure subject to strict environmental regulations in Western Europe and North America.
Anti-Corrosive Architecture for Rainwater Management
Unlike standard HVAC ventilation joints, components utilized in rainwater reclamation installations face continuous contact with humid atmospheres, seasonal flood volumes, and acidic organic runoffs from roof tiles or parking lots. Our production line exclusively uses certified SS304 or SS316L stainless steel alloys. The metal faces are fully passivated to remove any manufacturing impurities, preventing the formation of localized crevice corrosion and pitting over decades of underground or exposed outdoor service.
The product features a roll-formed exterior central rib that serves a dual purpose: acting as a physical stop mechanism for workers sliding the outer tubes together, and increasing the radial crushing resistance of the joiner under soil or heavy concrete backfill loads commonly encountered in European sustainable urban drainage systems (SuDS).
Optimized Flow Efficiency & Low Head Loss
A primary challenge in gravity-fed stormwater filtration systems is head loss and sediment buildup. Heavy debris like leaves, twigs, and micro-plastics carried by initial downpours can easily snag on thick internal pipe obstructions. Our round joiner sleeve utilizes an ultra-precise, cold-rolled tolerance profile that tightly hugs the internal diameter of the connecting conduits. The resulting joint preserves an almost flush interior cross-section, ensuring maximum hydraulic throughput and ensuring that self-cleaning vortex rainwater filters operate at peak efficiency.
Technical Specifications Table
| Model Code | Nominal Diameter (mm) | Standard Length (mm) | Wall Thickness (mm) | Stop Bead Height (mm) | Fits Pipe Standards |
|---|---|---|---|---|---|
| RDJ-SS100 | 100 mm | 120 mm | 0.6 mm | 2.0 mm | DIN / EN 12220 |
| RDJ-SS150 | 150 mm | 140 mm | 0.8 mm | 2.5 mm | DIN / EN 12220 |
| RDJ-SS200 | 200 mm | 150 mm | 0.8 mm | 2.5 mm | DIN / Euro-Norm |
| RDJ-SS300 | 300 mm | 180 mm | 1.0 mm | 3.0 mm | US Civil Piping / Metric |
B2B Supply Chain, OEM, & Specialized Logistics Standards
We are a dedicated global B2B metal fabrication partner capable of fulfilling high-volume contractual orders for civil infrastructure networks, eco-drainage developers, and commercial plumbing suppliers. Each batch of round duct connectors is thoroughly checked for roundness using digital calipers and plug gauges to eliminate on-site fitting delays. Products are protected with internal anti-scratch films, tightly packed into heavy-duty seaworthy wooden crates, and integrated onto standardized Euro-pallets for seamless container unloading.
Our facility provides full technical document support including Mill Test Certificates (MTR) according to EN 10204 3.1, dimensional drawings for CAD import, and fully custom length or gauge fabrications to meet proprietary rainwater filter design constraints.
Frequently Asked Questions (FAQ)
Q1: How do you achieve a completely water-tight seal with this duct joiner sleeve?
A1: This joiner acts as an internal alignment sleeve. To achieve a comprehensive hydraulic seal for fluid transport, a specialized rubber sealing mastic or a heavy-duty external mechanical pipe coupling clamp with EPDM liners should be fastened directly over the outer joint line.
Q2: Can you customize the exact outer diameter to fit non-standard European rainwater tanks?
A2: Yes, absolutely. We can recalibrate our laser-cutting and roll-forming equipment to achieve custom tolerances down to ±0.2mm, accommodating specific composite filter bodies, precast concrete stormwater manholes, or unique proprietary tank outlets.
Q3: Is SS316L material highly recommended over SS304 for underground urban runoff networks?
A3: While SS304 performs excellently for standard municipal rainwater retention systems, SS316L is highly recommended if the water network manages coastal rainwater runoffs with high salinity concentrations or handles aggressive commercial chemical washdown storm drains.
Q4: What is your standard lead time for a 20ft container order of standard sizing?
A4: For standardized Euro-norm sizes (100mm to 300mm), our manufacturing lead time for a full container load is typically 25 to 30 days. We also offer partial air freight shipments for ongoing public works or urgent environmental engineering site developments.
Get Custom Stainless Steel Round Duct Joiner Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
