Heavy-Duty Filter Housing O-Ring for Residential & Commercial Rainwater Filtration
In residential greywater recycling and large-scale commercial stormwater purification infrastructures, the pre-filtration unit is the primary line of defense. Because sediment cartridges and stainless steel mesh filters require regular cleaning or seasonal replacement, the Filter Housing O-Ring experiences frequent compression, twist forces, and chemical exposure. Our premium O-rings are designed to overcome these challenges. Engineered with high-precision dimensional tolerances, they provide a reliable hydraulic seal that prevents bypassing and exterior leaks under municipal booster pressure and extreme thermal cycles.
Advanced Fatigue Resistance for Repeated Maintenance Cycles
Zero Elongation Failure and Minimal Compression Set Under Constant Load:

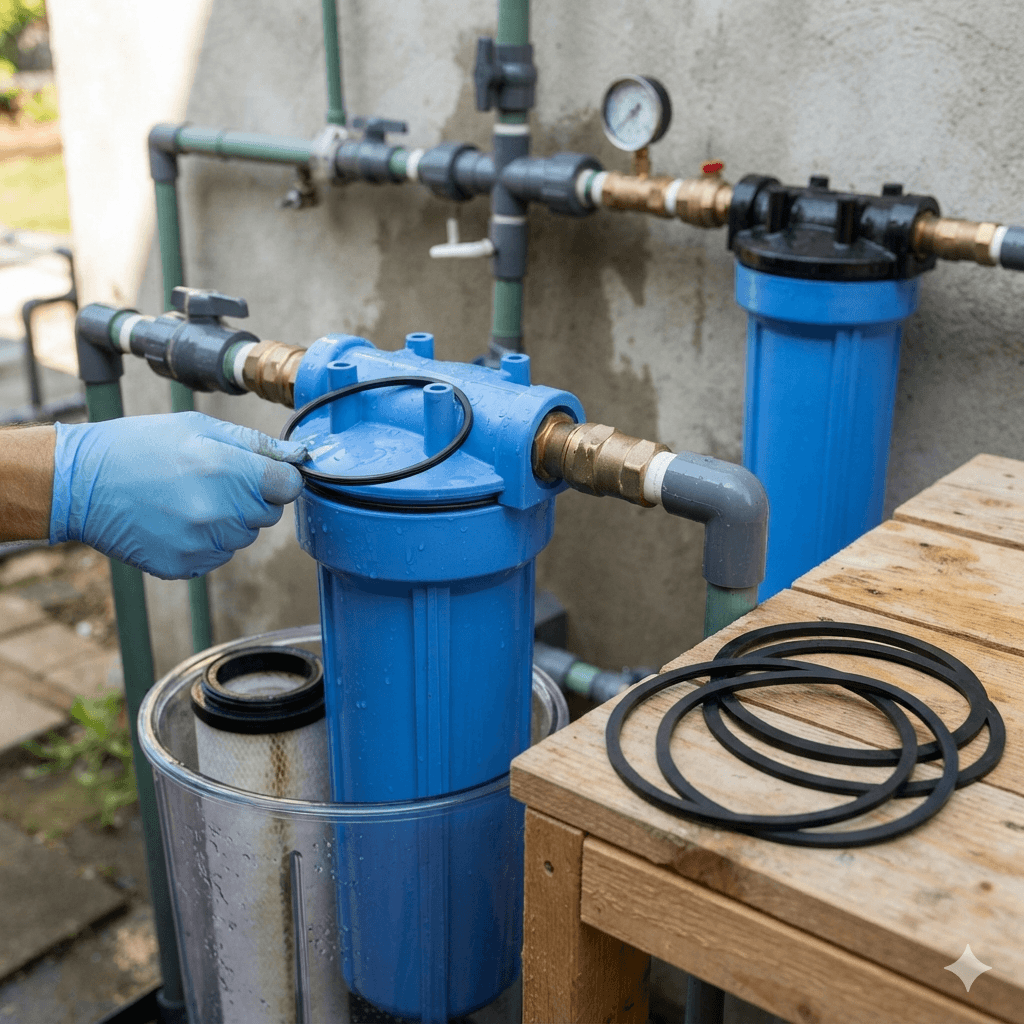

When technicians or homeowners twist off a water filter casing, low-grade rubber O-rings stretch permanently or pinch, making them unusable for re-assembly. Our custom EPDM polymer matrix features excellent tensile recovery properties. It snaps back immediately to its original circular profile, ensuring an absolute watertight seal without requiring messy lubricants or excessive tightening torque.
For large multi-cartridge commercial filter vessels, water pressure fluctuates wildly between pump activation cycles. This rapid pulsing causes standard commercial gaskets to fail via micro-fissures and compression cracks. Our 70 Durometer Shore A rubber material is optimized to absorb high impulse pressures up to 125 PSI without expanding into the clearance gap of the plastic or steel threads, providing unmatched long-term sealing security for modern green architectures.
Key Performance Advantages for B2B Procurement
- Universal Brand Compatibility: Seamlessly matches standard North American and European housing sizing formats (including Slim Line, Big Blue 10-inch, and 20-inch industry models).
- Optimized Hardness Durometer: 70 Shore A rating balances physical elasticity with structural crush-resistance for quick, leak-free industrial hand tightening.
- Extreme Water Hydrolysis Protection: Retains its material profile without chemical degradation or swelling when exposed to high-chlorine city backup lines or raw acidic rainwater runoff.
- Eco-Sensitive Safe Materials: Manufactured completely clean, utilizing no hazardous processing oils; fully compliant with global REACH and RoHS 2.0 directives.
- Precision Flash-Free Finish: Molded with high-tech automated equipment to guarantee completely smooth sealing faces free from parting line defects.
Technical Specifications Table
| Physical Criterion | Technical Standard Value | Testing Compliance |
|---|---|---|
| Elastomer Base | Ultra-Pure Grade EPDM / Premium Nitrile Alternative | ASTM D2000 Standard |
| Durometer Hardness | 70 ± 5 Shore A (Optimal mechanical sealing score) | ISO 48 / ASTM D2240 |
| Tensile Strength | ≥ 10.5 MPa | ASTM D412 Method A |
| Compression Set (70h) | ≤ 18% (Exceptional elastomeric memory retention) | ASTM D395 Method B (100°C) |
| Dimensional Tolerances | Strict adherence to ISO 3601-1 Class A standard | Laser Dimension Gauged |
| Ozone Aging Resistance | No Visible Micro-Cracks (100 pphm, 168 Hours) | ASTM D1149 |
| Chemical Compliance | RoHS 2.0 directive compliant, REACH SVHC chemical free | SGS Labs Certified |
High-Frequency Commercial Packing & Retail Kitting Options
As a high-turnover replacement element widely supplied to plumbing wholesalers, hardware store chains, and ecommerce sellers across North America and Europe, we provide specialized packaging customization. Whether you require loose bulk industrial packaging in protective multi-layer polybags or retail-ready blister cards, we can accommodate your needs. Our in-house branding lab supports customized private label kits containing 3-packs or 5-packs with unique barcoding and UPC printed directly on the card face. Our optimized logistical network ensures fast customs processing and direct shipping routes to Western fulfillment hubs.
Frequently Asked Questions (FAQ)
Get Custom Filter Housing O-Ring Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
