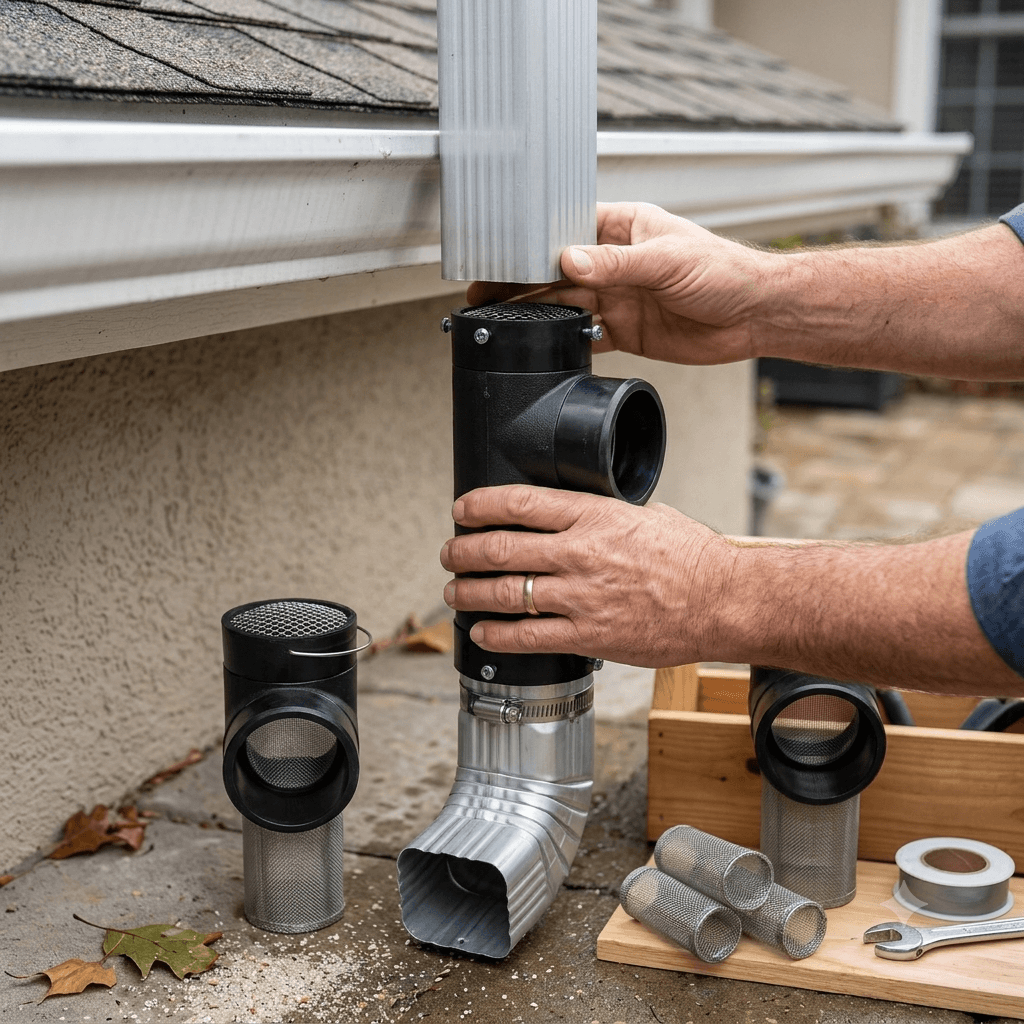

Inline Downspout Filter Gutter with Stainless Steel Mesh Cartridges
Securing absolute clarity in your water inventory begins right at the vertical collection drop paths long before runoff encounters complex underground cistern infrastructure. Our commercial-grade Inline Downspout Filter provides an elite, dual-stage physical pre-filtration framework classified under premium water tank accessories and drainage assemblies. Expertly designed to intercept organic roof sediment from fast storm surges, this multi-material separator combines an impact-resistant polymer T-junction body with a removable high-tensile stainless steel wire mesh cartridge. It guarantees maximum clean water diversion speeds while keeping plumbing pathways clean.
Advanced Performance Benefits of Our Integrated Leaf Interceptors
- Two-Tier Dynamic Filtration Matrix: The upper heavy woven mesh acts as a rigid rock deflector, while the internal cylindrical under-screen provides fine-micron screening to capture decaying plant matter and moss.
- High-Efficiency Slip-On Connection: Standardized T-joint pipe diameters ensure easy slip-on integration with widespread European and American PVC, PE, or zinc downspout models without gluing.
- Ergonomic Pull-Out Maintenance: Features a built-in stainless steel wire carry handle that lets users pull out the filter screen cage smoothly for periodic clearing.
- Absolute Environmental Resistance: The engineering polymer housing resists extreme freezing expansions and intense UV yellowing, outlasting standard thin-walled PVC pipes.
Targeted Placement in Advanced Rainwater Collection Infrastructure
Relying on standard open drainage ports or flimsy plastic screens causes rapid blockage and tearing under sudden storm currents. As an established global B2B factory manufacturer, we engineer our inline sliding filter valves to fit cleanly into diverse civil plumbing layouts:
- Residential External Downspout Diverters: Installed along residential roof collection pipes to divert clean runoff through the side branch port into backyard storage tanks, while redirecting mud out the bottom exit.
- Commercial Stormwater Harvesting Shafts: Placed ahead of high-capacity storage vaults as a vital primary defense screen, protecting downstream calmed inlets and floating吸水器 from heavy leaf debris.
- Agricultural Irrigation Reservoirs: Mounted inside greenhouse downspout lines to ensure incoming water remains clear of moss and roof sediment, keeping micro-sprinkler nozzles free of clogs.
Technical Specifications & Ordering Configuration Matrix
| Technical Parameter | Standard Export Specification | Custom Available Range |
|---|---|---|
| Housing Shell Material | UV-Stabilized High-Density Polypropylene (PP) / HDPE | Reinforced ABS / Anti-aging PVC compounds |
| Filter Mesh Composition | AISI 304 Premium Austenitic Stainless Steel | AISI 316 / 316L Marine Grade Steel for industrial sites |
| Connection Port Diameters | DN 100 / DN 110 (Standard European Pipe Compatibility) | DN 90 / 3-inch & 4-inch sizes for North American markets |
| Top Coarse Mesh Aperture | 5.0 mm × 5.0 mm Lock-Crimped Deflector Grid | 3.0 mm to 8.0 mm customized protection grids |
| Inner Cylinder Mesh Aperture | 0.55 mm Fine opening matrix weave (High-retention) | 0.28 mm to 1.20 mm optimized micronic mesh options |
| Net Flow Area Rate | ~58.5% High Hydraulic Throughput | 52% to 65% depending on wire diameter combinations |
Global OEM Supply Chain & Protective Packing Logistics
Operating as an elite export manufacturer specializing in robust water control components, we align our high-volume injection molding schedules with the strict logistical requirements of major European and American B2B procurement networks. We ensure that our inline filter shipments arrive safely and ready for retail distribution:
- Defect-Free Individual Bubble Packaging: To prevent any superficial scuffing, shell cracking, or internal mesh wire displacement during international container transit, each inline downspout filter is wrapped in an anti-shock bubble sleeve and secured within 5-layer corrugated master cartons.
- Full Material and Hydraulic Compliance: Every batch leaves our factory backed by verified material data sheets (MTR) ensuring authentic steel alloys and high-impact plastic pressure certificates that meet global plumbing metrics.
- Streamlined Global Shipping Routes: Fast-track maritime logistics managing Less-than-Container Loads (LCL) consolidated pallet arrays and Full Container Load (FCL) sorting straight to main logistics gateways including Rotterdam, Houston, and Sydney.
Frequently Asked Questions (FAQ)
A1: Standard filters often fail because heavy twigs or pebbles fall directly onto a fine mesh, puncturing or quickly blocking it. Our filter uses a strong top steel wire grid to deflect large rocks, twigs, and heavy debris first. The water then drops smoothly into the lower fine cylindrical mesh basket, which safely filters out tiny moss, roof soot, and sand particles.
A2: No. The filter cartridge is engineered with an expansive cylindrical profile that provides a net open flow area exceeding 58%. By combining this high flow rating with an angled T-junction water channel design, it processes heavy storm volume velocities smoothly without creating hydraulic air locks or pipe backups.
A3: Our housings are injection-molded using premium, non-recycled polypropylene or high-density polyethylene blended with specialized carbon-black UV stabilizers. This chemical formulation allows the outer shell to withstand prolonged solar exposure without fading or turning brittle, while remaining flexible enough to absorb winter freeze expansions without cracking.
A4: Absolutely. We operate as a premier manufacturing partner for global drainage system brands. We can adjust our injection tooling to produce specific pipe diameter slots (such as standard US 3-inch or 4-inch Schedule 40 parameters), stamp your private trade trademark directly onto the outer shell, or customize internal mesh opening ratings based strictly on your shared prints.
Get Custom Twin Basket Strainer Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
