Precision-Engineered Concentric & Eccentric Pipe Reducers for Global Stormwater Infrastructure

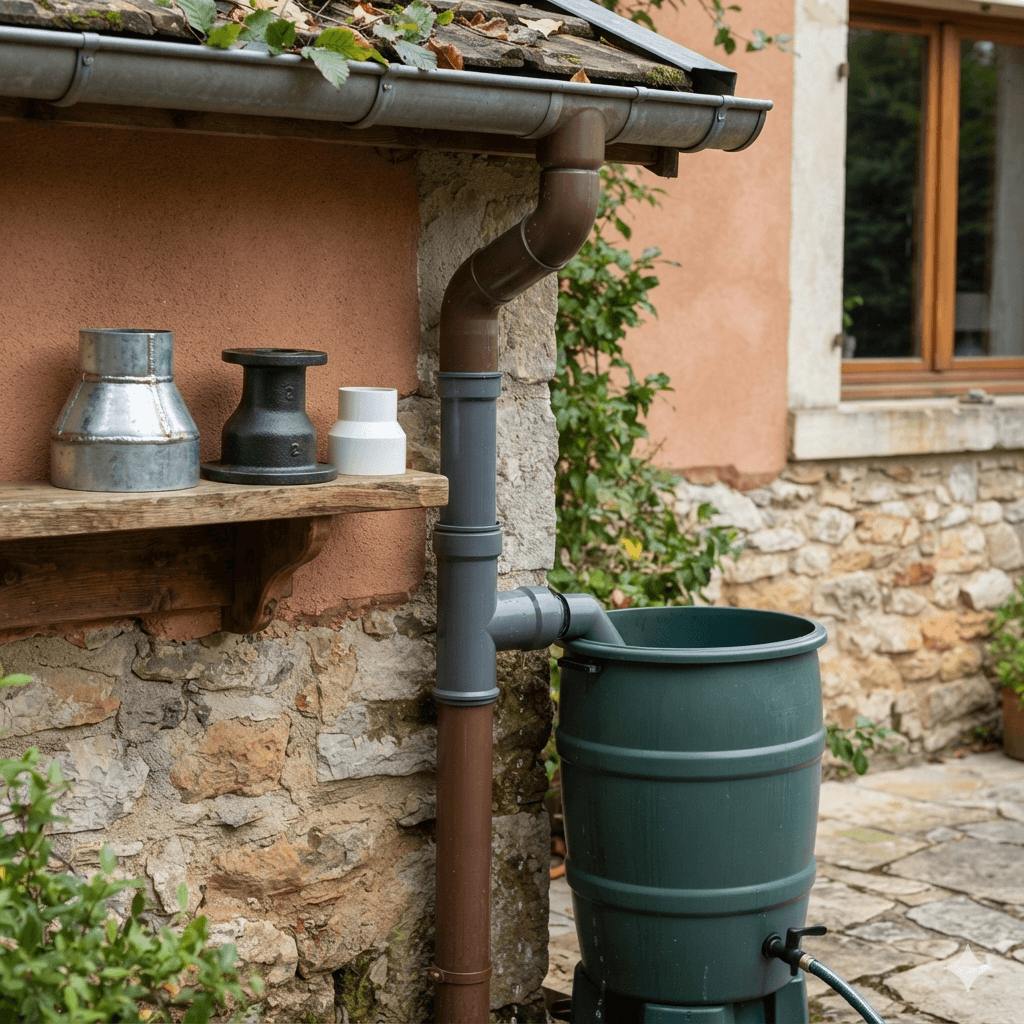

In municipal stormwater management and eco-friendly architecture, controlling hydraulic flow dynamics at diameter adjustments is a core engineering challenge. Our Pipe Reducer for Rainwater Harvesting features an advanced, extended transition ramp that allows for efficient acceleration or deceleration of water volume. Positioned prior to primary vortex filters or first-flush separation devices, these external fittings ensure that the water column profile remains stable, preventing cavitation, backflow, or structural stress on adjacent pipe couplings.
Why Our Transition Pipe Reducers Excel in Rainwater Networks
- Concentric & Eccentric Specialization: Choose Concentric reducers for balanced vertical lines, or Eccentric (flat-side) reducers for horizontal installations where maintaining a level pipe bottom is critical to stop stagnant water pools.
- Complete Material Sourcing: Available in Marine-Grade Stainless Steel (304/316) for municipal civil works, and heavy-walled UV-stabilized PVC/HDPE for light commercial and domestic cistern assemblies.
- Flexible Joint Connectivity: Machined interfaces support seamless butt-welding, precision NPT/BSP threading, or high-depth solvent welding to eliminate leak vectors.
- Anti-Silt Internal Surface: Fully smooth, step-free internal transitions ensure that leaf fragments, moss, and roof sediment slip through without clinging to the taper.
Technical Specifications & Structural Dimensions
| Specification Parameter | Stainless Steel Reducer (Welded/Threaded) | Plastic Reducer (PVC / HDPE) |
|---|---|---|
| Structural Types | Concentric (Balanced) & Eccentric (Flat-Bottom) | Concentric Molded / Eccentric Fabricated Sleeve |
| Large End Size Range | 3″ to 16″ (DN80 – DN400) | 2″ to 12″ (DN50 – DN300) |
| Small End Size Range | 2″ to 12″ (DN50 – DN300) | 1.5″ to 10″ (DN40 – DN250) |
| Dimensional Standards | ASME B16.9, EN 10253-4 | ASTM D2665, ASTM F441, EN 12200, ISO 4427 |
| Wall Thickness / Rating | Sch 10S, Sch 40S, Class 150 Heavy Wall | Schedule 40, Schedule 80, SDR 11, SDR 17 |
| Service Environment | High-salinity urban runoff, industrial stormwater | Acid soil burial, residential rainwater recycling |
Robust B2B Export Logistics & Quality Control Standards
Our production plant adheres to strict geometric tolerance tracking to guarantee flawless alignment on-site. Because eccentric reducers possess an asymmetrical offset profile, we implement distinct quality-check protocols using digital coordinate-measuring machines to ensure axis precision. All export shipments are nestled in custom cell-divided cardboard boxes or crates, bound tightly on heat-treated ISPM-15 wooden pallets. Leveraging our direct container logistics routes to Europe, Canada, and the United States, we provide turnkey delivery options (FOB, CIF, DDP) that keep municipal infrastructure timelines fully on schedule.
Frequently Asked Questions (FAQ)
Q1: When should I specify an Eccentric Pipe Reducer instead of a Concentric one in a stormwater layout?
A1: Eccentric reducers are essential for horizontal pipelines feeding filtration devices. By keeping the bottom of the pipe perfectly flat, they allow sediment and stormwater to flow smoothly without creating a lip where water can pond and become stagnant. Concentric reducers, conversely, are best utilized on vertical lines, such as downspout collection arrays, where the fluid column drops evenly under gravity.
Q2: Why does your pipe reducer feature a longer transitional section compared to standard commercial hardware?
A2: Standard short-radius reducers create an abrupt diameter squeeze, which causes extreme fluid turbulence and backpressure during heavy downpours. Our extended, long-taper design guides the rainwater through a gradual slope. This specialized profile reduces the pressure-drop index, maximizes flow velocity toward filters, and drastically lowers the risk of organic leaf blockages.
Q3: How do your threaded and socket-welded reducers perform under cyclic thermal shifting outdoors?
A3: For above-ground systems subject to seasonal freezing and intense summer heat, our thick-walled Sch 80 PVC incorporates specialized UV absorbers, and our Stainless Steel options feature fully annealed structures. This advanced compounding ensures the body can absorb significant linear expansion forces at the threaded or welded joints without stress cracking.
Q4: Can you provide custom large-to-small dimension steps (e.g., bypassing standard intermediate sizes)?
A4: Yes, we provide comprehensive OEM custom fabrication. If your municipal stormwater design requires a drastic reduction, such as a 10″ pipe jumping straight down to a 4″ inlet without adding multiple stacked adapters, our engineering team can provide tailor-made CNC-machined or custom-molded reducers accompanied by certified CAD blueprint validations.
Get Custom Pipe Reducer Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
