Stainless Steel Rainwater Filter Mesh for Rainwater Harvesting Filtration Systems
Ensuring efficient primary particulate intercepting before raw stormwater hits storage infrastructure requires robust mechanical screening. Our heavy-duty Stainless Steel Rainwater Filter Mesh provides the ultimate industrial-grade consumable baseline grouped under critical water tank accessories and drainage media. Manufactured through high-accuracy weaving of austenitic stainless steel wire, this durable metal fabric offers exceptional hydraulic conductivity paired with an unyielding barrier against organic matter. It acts as the core replacement component inside global commercial downspout diverters, subterranean infiltration chambers, and vertical storm filters.
Structural Benefits of Woven Steel Pre-Filtration Consumables
- Calibrated Micro-Aperture Weave: Uniform mesh geometry screens out fine sand, pine needles, and roofing granules down to sub-millimeter scales without creating flow bottlenecks.
- High Tensile Resiliency & Flexibility: Can be effortlessly bent, stamped, or rolled to match proprietary curved filter housings or injection-molded plastic casings.
- Natural Self-Cleaning Optimization: The smooth surface profile allows sweeping storm currents to easily wash trapped organic sediments downward into waste lines, minimizing manual scouring.
- Absolute Bio-Decay Resistance: Immune to tannic acids from decaying leaves, mold growth, bird droppings, and intense UV weathering typical in open outdoor collection sites.
Targeted Deployment Areas for Replacement Filtration Screen Media
Standard nylon or fiberglass screening alternatives decay rapidly under severe climate shifts and tearing loads from rushing debris. As a premier global B2B factory supplier, we package our metal filter mesh to fulfill flexible design prints across diverse sustainable drainage structures:

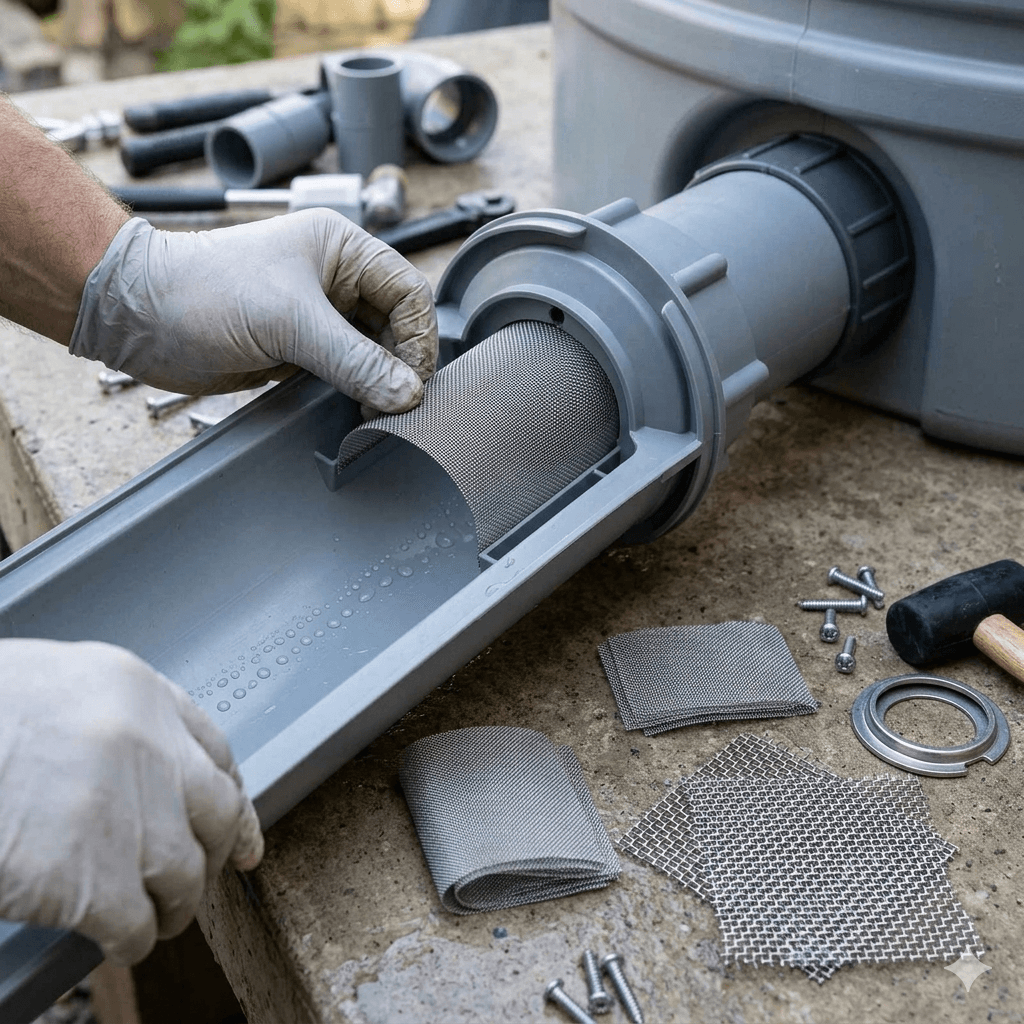

- Downspout Leaf Sliders & Separators: Tailored as flexible, curved slide inserts that actively eject organic roofing wastes into outdoor yards while diverting pure filtered water down to basement holding vaults.
- Inline Filtration Shaft Cartridges: Functions as the primary mesh jacket wrapped around underground poly-cartridge cylinders, catching airborne sediments right before water enters main clean water basins.
- Vent Ventilation Breath Ports: Cut into circular mesh discs to serve as high-strength physical armor for atmospheric vents, denying structural access to rats, wasps, and crawling insects.
Technical Specifications & Configuration Data
| Technical Parameter | Standard Export Specification | Custom Available Range |
|---|---|---|
| Available Material Alloys | AISI 304 Stainless Steel (Standard Industrial Grade) | AISI 316 / 316L Marine Grade Alloy for coastal zones |
| Mesh Aperture / Opening Size | 0.95 mm / 0.50 mm (Optimized separation parameters) | 0.25 mm to 1.5 mm customized mesh opening options |
| Wire Diameter (Thickness) | 0.30 mm / 0.35 mm (High-tensile wear profile) | 0.20 mm to 0.50 mm customized structural wire |
| Open Flow Area Percentage | ~56.8% to 61% (Engineered for heavy flash downpours) | Customizable based on mesh count selections |
| Supply Configuration Formats | Pre-cut rectangular sheets / Curved contour strips | Industrial master rolls up to 200m / Laser stamped discs |
| Edge Treatments | Flush cut / De-burred raw edges | Molded rubber profiles / Welded solid borders |
Global B2B Supply Chain & Protective Packing Engineering
Operating as an elite export manufacturer specializing in robust water filtration raw materials, we align our high-speed loom production schedules with the heavy-volume logistical requirements of tier-1 global drainage brands and distributors. We ensure that our filter mesh products arrive flawlessly flattened or rolled:
- Deformation-Proof Matrix Packaging: To fully eliminate surface denting or edge curling of woven structures during international ocean transit, pre-cut screen packs are compressed between thick multi-layer rigid fiberboard panels, strapped tight, and crated securely inside heavy export wooden boxes.
- Full Material Chemical Verification: Every single batch leaves our warehouse backed by verified mill test certificates (MTR), ensuring authentic non-recycled chromium-nickel chemical ratios that meet European REACH and US safety rules.
- Flexible Freight Management: Streamlined logistics networks handling Less-than-Container Loads (LCL) bundle packing and Full Container Load (FCL) sorting routes direct to major maritime ports across Los Angeles, New York, Hamburg, and Sydney.
Frequently Asked Questions (FAQ)
A1: For first-stage roof filters processing heavy storm streams, a 20-mesh or 30-mesh weave (aperture between 0.7mm to 0.95mm) is ideal. It provides exceptional hydraulic open space to drain rainwater quickly while effectively trapping leaves and macro-sediments. For fine post-filtration before indoor usage, a 40-mesh up to 60-mesh rating is recommended to catch microscopic roofing particles.
A2: No. Our screens are manufactured on advanced automated tension-controlled looms that lock every warp and weft wire into a rigid, non-shifting grid layout. For extra high-pressure municipal junctions, we can supply a calendar-pressed woven option where intersection points are physically flattened for enhanced grid lock accuracy.
A3: While Grade 304 offers superb rust protection in typical inland environments, projects situated in coastal zones with high salt-air salinity or industrial zones facing highly acidic rainfall require Grade 316. Grade 316 contains an added molybdenum component that prevents localized pitting corrosion from chemical or chlorine shocks.
A4: Absolutely. We operate comprehensive CNC laser cutting and precision press brake stamping equipment. We can supply you with finished mesh components matching your engineering blueprints, completely de-burred, shaped with custom radii, or edged with rubber seals for immediate integration on your assembly lines.
Get Custom Stainless Steel Rainwater Filter Mesh Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
