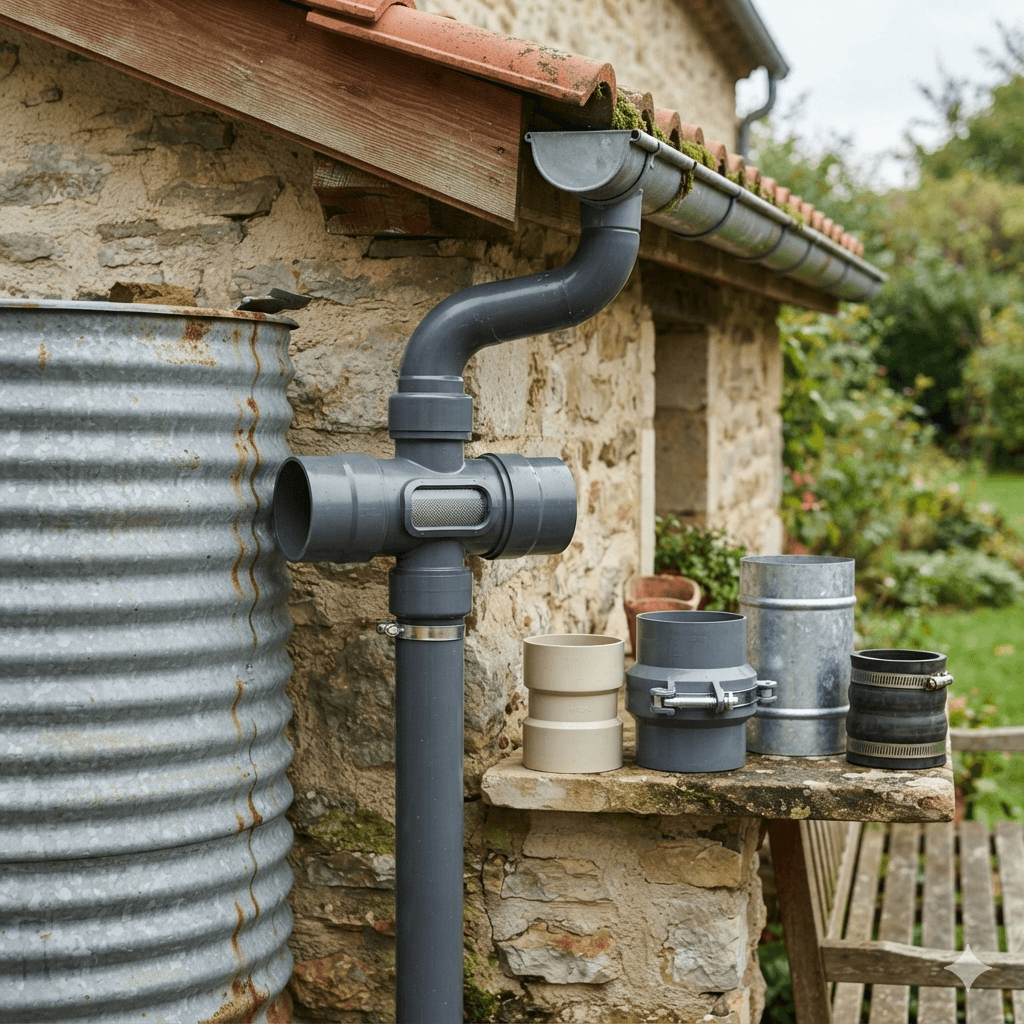

Industrial-Grade Straight Coupler for Residential & Commercial Rainwater Collection
In extensive rainwater harvesting grids, long-distance pipe extensions require joints that can guarantee absolute seal integrity over decades of service. Our Straight Coupler for Rainwater Harvesting is purpose-built to eliminate weak points in the straight-run pipelines that feed storm filtration mechanisms. By utilizing advanced geometric tolerances, these couplers absorb minor linear thermal expansion while preventing structural deflection, whether installed above-ground on a residential roofline or embedded deep within a commercial concrete vault footprint.
Why Our Straight Coupler Stands Out in Stormwater Engineering
- Total Material Versatility: Sourced in Heavy-Duty Stainless Steel (304/316) for municipal filter chambers, or UV-stabilized engineered plastics (PVC/HDPE) for fast-install residential downspouts.
- Streamlined Internal Passage: The straight-through boring matches the connected pipe’s exact ID, preventing leaves, mud, and roof grime from catching and forming clogs.
- Cross-Standard Precision Calibration: Precision-engineered to fit both North American Schedule 40/80 (ASTM) pipelines and European metrics (EN/ISO) seamlessly.
- Advanced Environmental Barriers: Superior resistance against aggressive urban runoff, acid rain, soil rot, and harsh chemical treatments.
Technical Specifications & Material Standards
| Specification Parameter | Stainless Steel Coupler | Plastic Coupler (PVC / HDPE) |
|---|---|---|
| Available Sizes | 2″ to 16″ (DN50 – DN400) | 2″ to 12″ (DN50 – DN300) |
| Wall Thickness Grades | Sch 10S / Sch 40S / High-Pressure Sleeves | Schedule 40/80, SDR 11 / SDR 17 |
| Manufacturing Codes | ASME B16.11, DIN 10253 | ASTM D2665, ASTM F441, EN 12200 |
| Jointing Mechanism | Socket Weld, Female NPT Thread, Flanged | Solvent Weld Slip, Electrofusion Joint |
| Sealing Integrity | Metal-to-metal tight seal or PTFE gasket | Deep socket depth with chemical fusion assurance |
| Operational Lifespan | 55+ Years under heavy underground loading | 40+ Years in standard residential installations |
B2B Wholesale Packaging & Streamlined Logistics Distribution
As a seasoned supplier to global distributors and utility engineering firms, we optimize our entire logistics stream for fast site dispatch. Each batch of straight couplers is individually bagged, sorted by dimension codes, and packed within heavy-duty export master cartons to prevent transit abrasion. We utilize fully wrapped, heat-treated ISPM-15 wooden pallets that are fully compliant with US Customs and EU border controls. Thanks to our nearby seaport positioning, we guarantee flexible, cost-optimized shipping terms (FOB, CIF, DDP) that keep your commercial supply chain moving efficiently.
Frequently Asked Questions (FAQ)
Q1: How do your straight couplers handle soil settlement and shifting in deep underground commercial rainwater tanks?
A1: Our underground-rated HDPE and thick-walled Schedule 80 PVC straight couplers feature an elongated socket depth that provides superior axial reinforcement. This design allows the joint to distribute soil shear loads evenly, preventing pull-out fractures or snapping caused by natural ground settlement around heavy attenuation modules.
Q2: Can we mix pipe brands when using your straight couplers on an EN-standard domestic roof drain network?
A2: Yes, absolutely. Our couplers are molded or machined to strict geometric tolerances defined by universal standards (like EN 12200 and ISO 4427). As long as your existing infrastructure pipes adhere to those standard outer diameter (OD) benchmarks, our couplers will form a flush, reliable connection regardless of the pipe manufacturer.
Q3: For stainless steel filtration lines, do you recommend threaded straight couplers or butt-weld ones?
A3: For heavy commercial stormwater pre-filtration units that experience high-pressure water surges, we recommend socket-weld or butt-weld straight couplers to achieve an absolute permanent, monolithic seal. For residential setups or above-ground components requiring periodic maintenance, precision NPT threaded couplers offer quicker assembly and easier disassembly.
Q4: What compliance documentation can you provide for municipal eco-construction engineering bids?
A4: We support international tenders with complete documentation packages, including Mill Test Reports (MTR) for stainless steel, raw material certificate data sheets for PVC/HDPE, hydrostatic pressure test certificates, and standard compliance declarations (ASTM/EN). These can be bundled directly with your cargo shipment.
Get Custom Straight Coupler for Rainwater Harvesting Technical Layouts & Factory Estimates
Contact our B2B export engineering department today to receive an itemized wholesale pricing catalog, detailed engineering blueprints, and a complete physical sample box delivered directly to your corporate headquarters!
